Haemonetics MCS+ Service Manual

2-4 System Description
P/N 39551-00, Rev. F
In various locations on the deck are seven valves that control the fluid pathway.
A Line Sensor monitors the density of fluid in the effluent line of the bowl
.
Several disposables are available. Each is designed to provide optimal results
when collecting the specific component required.
All disposables include the following:
a. Tubing harness through which blood flows
b. Centrifuge bowl in which blood is separated into its components
c. Collection bag(s) into which component(s) are collected
POWER ENTRY MODULE
The Power Entry Module, located on the left side of the machine, performs three
functions.
a. ON/OFF. The first function is to power the machine on and off. In case
of an emergency, this button stops all machine function.
b. FUSE PANEL. The second function is to act as a fuse panel to interrupt
power to the machine in the event of excessive current draw.

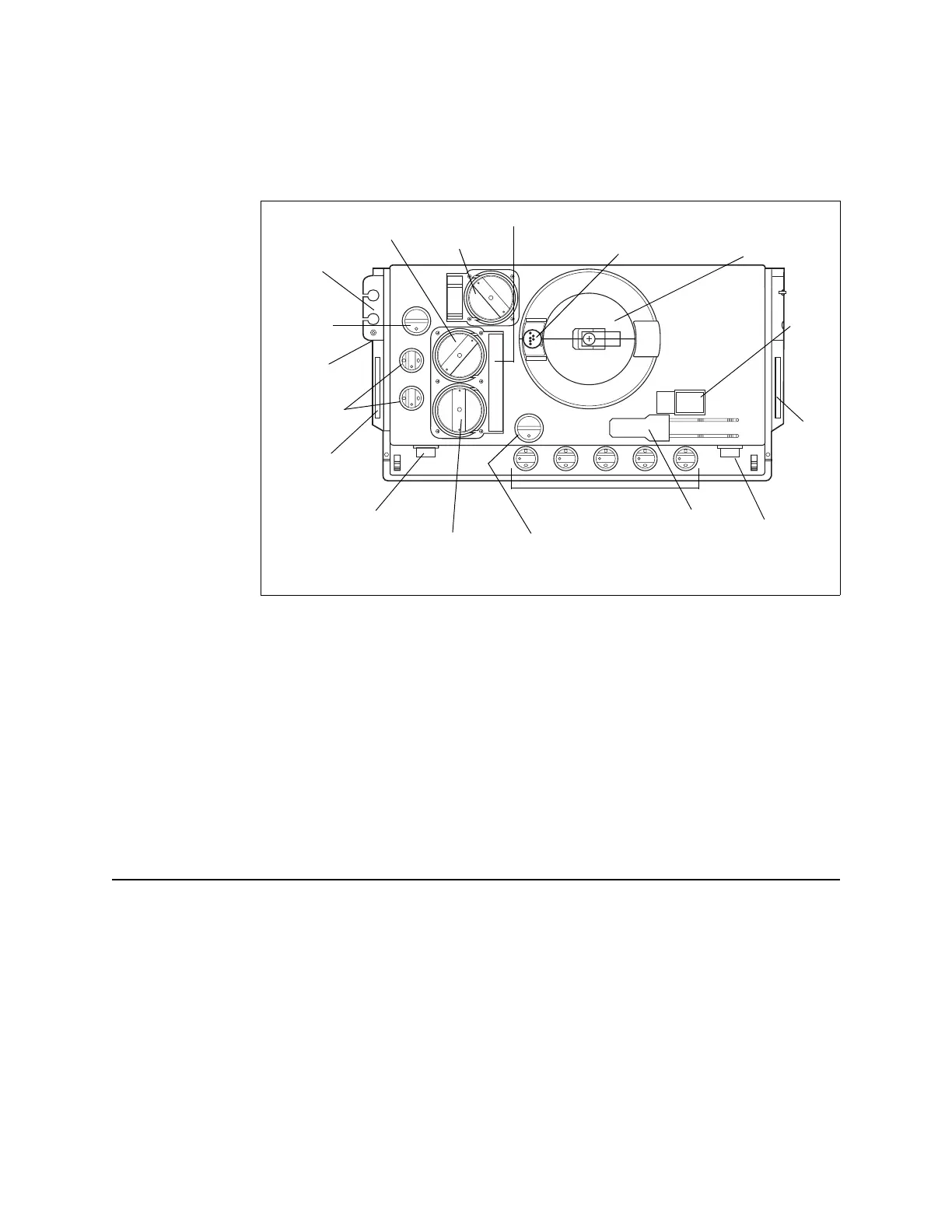

Figure 2-2, Top View of Deck
White
AC Pump
Centrifuge
Blood Pump
Donor Pressure Monitor
Valves
Valves
Blood Line
Air Detector
Donor
Flow
Lights
Dono
r
Flow
Lights
Drip
Monitor
Weigher
Line
Senso
r
Disposable Identification
(DPM)
System Pressu
re
Monitor (SPM
)
Cover Latch
A/C Air
Detector
(ACAD)
Pump
Well
Power
Entry
Module
(BLAD)
