– 42 –

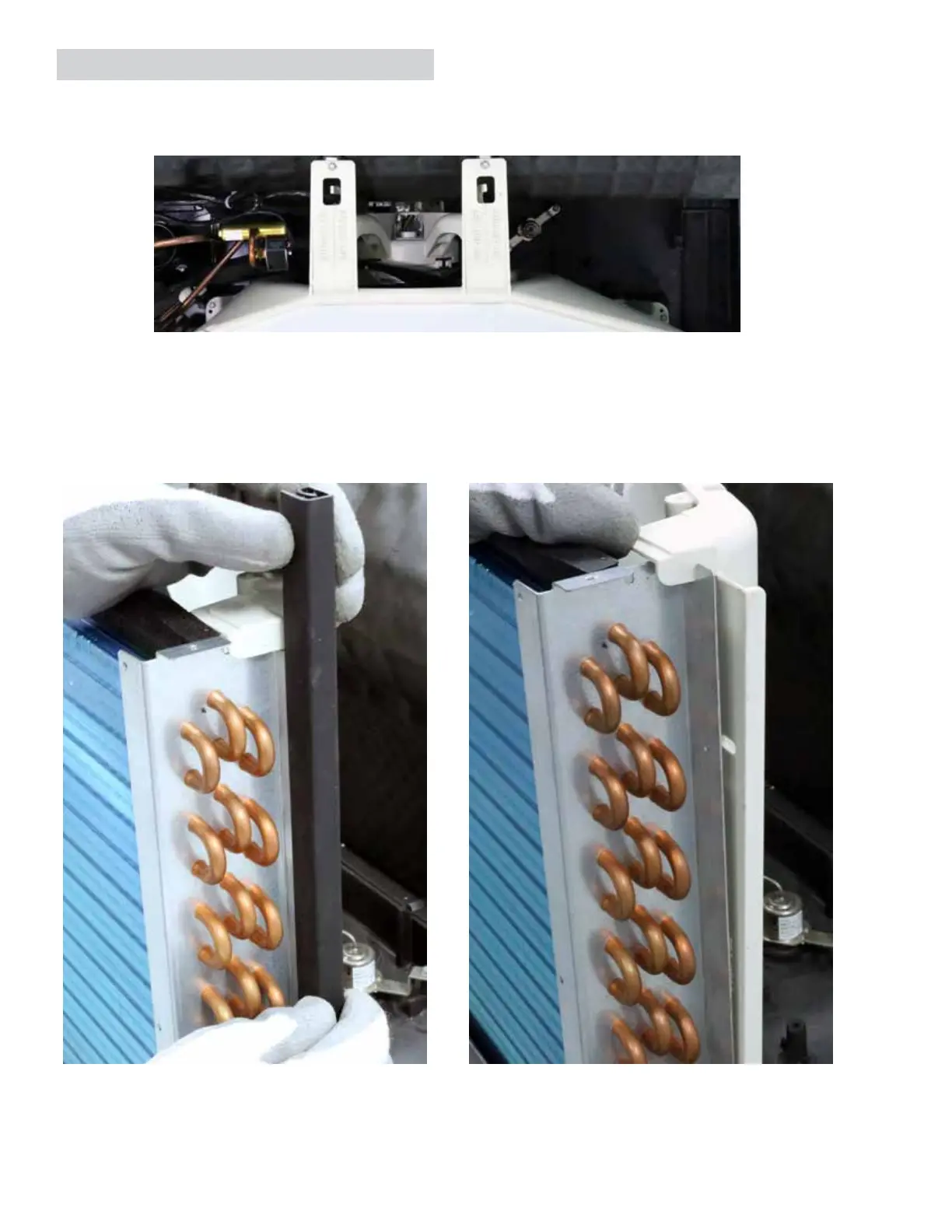

The outdoor fan shroud provides proper airow through the outdoor coil and also supports the outdoor

fan motor.

The outdoor fan shroud and motor assembly are attached to the base pan and outdoor coil assembly

with twelve screws and a “sleeve” that slides over the shroud and outdoor coil assembly.

NOTE: An extension will make accessing the lower screws easier.

Slide the “sleeve” up to separate the shroud and outdoor coil assembly.

Outdoor Fan Motor Shroud

Safety Information2
Warranty2
Table of Contents3
Safety Requirements6
Tools Required7
- Caution7
Nomenclature8
Operation9
- Cooling9
- Heating9
- Heat Pump Operation10
- All Heat Pump Lockout Mode12
- Boost Heat Mode12
- Fan Cycle Operation13
- Fan Cycle: Resistance Heating Mode14
- Fan Cycle: Heat Pump Mode15
- Constant Fan16
- Random Restart17
- Freeze Prevention for Indoor Coil (Cooling)19
- Indoor Coil Overheat Protection20
- Reverse Cycle Defrosting Heat Pump Mode21
- Internal Condensate Removal Control22
- Heat Sentinel Mode23
- Freeze Sentinel Mode23
- Control Lockout23
- Auxiliary Controls23
- Auxiliary Set Button24
- CDC: (Field Supplied)25
- External Fan: (Field Installed)25
- Remote Thermostat25
Thermistors26
- Thermistors Indoor26
- Thermistors Outdoor26
Controls27
- Main Board27
- Power Cords28
- Main Board - Front29
- Main Board30
- Component Checks at Main Board31
Fault Codes32
Service Mode34
- Accessing Controls35
- Low Voltage Transformer36
Service Main Board37
User Interface39
Air System40
- Fan Motors40
- Indoor Fan Motor40
- Indoor Blower Wheel40
- Indoor Fan Bearing41
- Outdoor Fan Motor Shroud42
- Outdoor Fan Motor43
Electric Heat44
- Heater44
Condensate Removal46
- ICR System46
- ICR Pump46
- Slinger on Outdoor Fan Blade46
- Damper Door47
- Make-Up Air Module (MUAM)47
Sealed System50
- Compressor51
- Reversing Valve51
- Service Replacement Valve Assembly52
Sealed System: Refrigerant Flow Cooling53
Sealed System: Refrigerant Flow Heating54
Recovery Process55
Charging Summary56
- Refrigerant Charge56
Schematic/Wiring Diagram57
New Accessories58
Index59
