H2SM-(9+12)HEK03/R2

Removal Procedure

Domestic Air Conditioner

9. Removal Procedure

9.1 The removal procedure of Indoor Unit

Procedure Warning Be sure to wait 10 minutes or more after turning off all

power supplies before disassembling work.

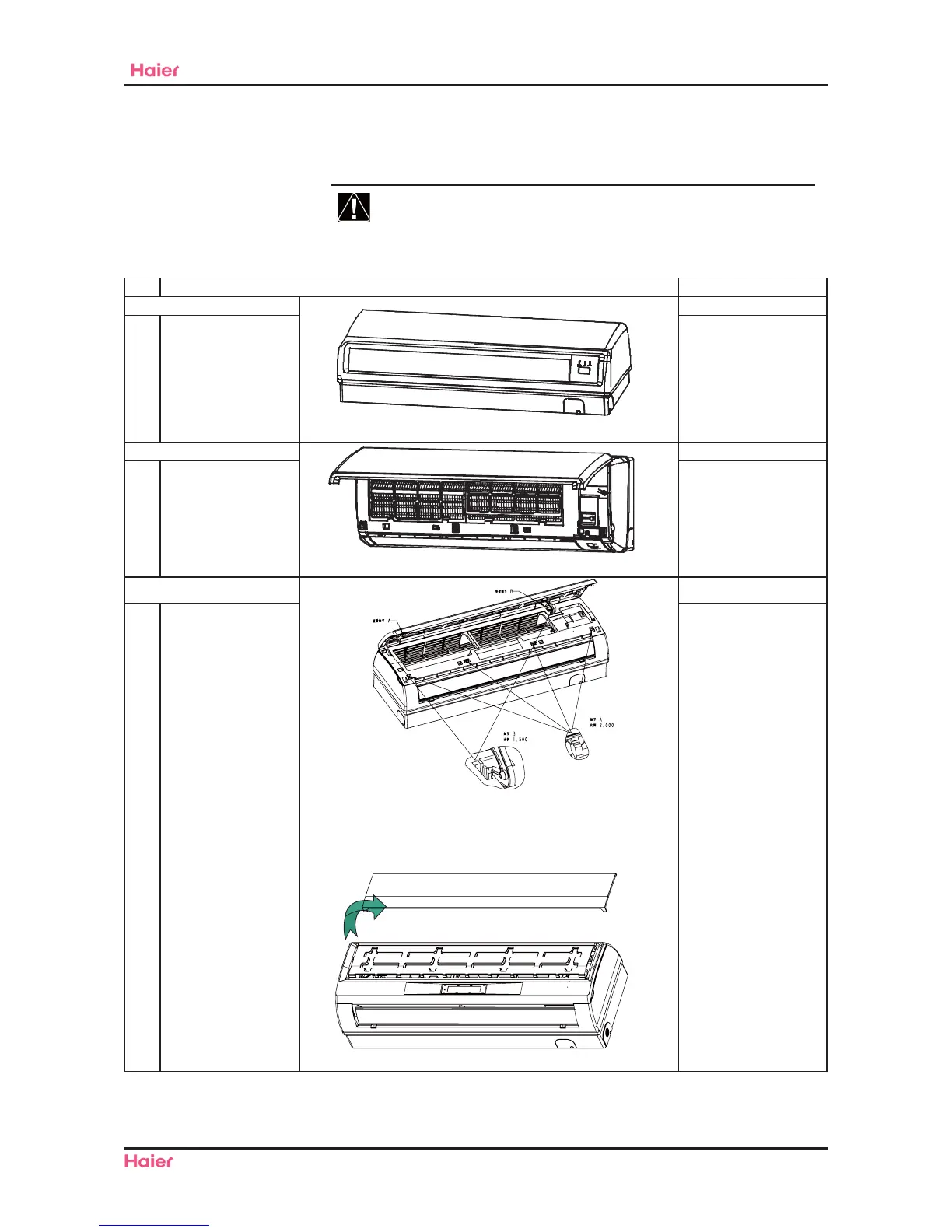

9.1.1 Removal of Air Filters and Front panel

Step Procedure Points

1. Features

5HPRYHWKHDLU¿OWHUV

Hold the front

panel by the tabs

on the both sides

and list it until it

stops with a click

3. Remove the front panel

Open the front

panel to the

horizontal position.

Release the

both sides pivots

and remove the

front panel.



Start the removal

procedure of front

grile when the

panel are closed.



Slide the front

panel side to side to

release each axis.



When assembling,

align the right and left

axes with grooves

in turn and insert

them to the end.
