User Manual
4. Installation
15

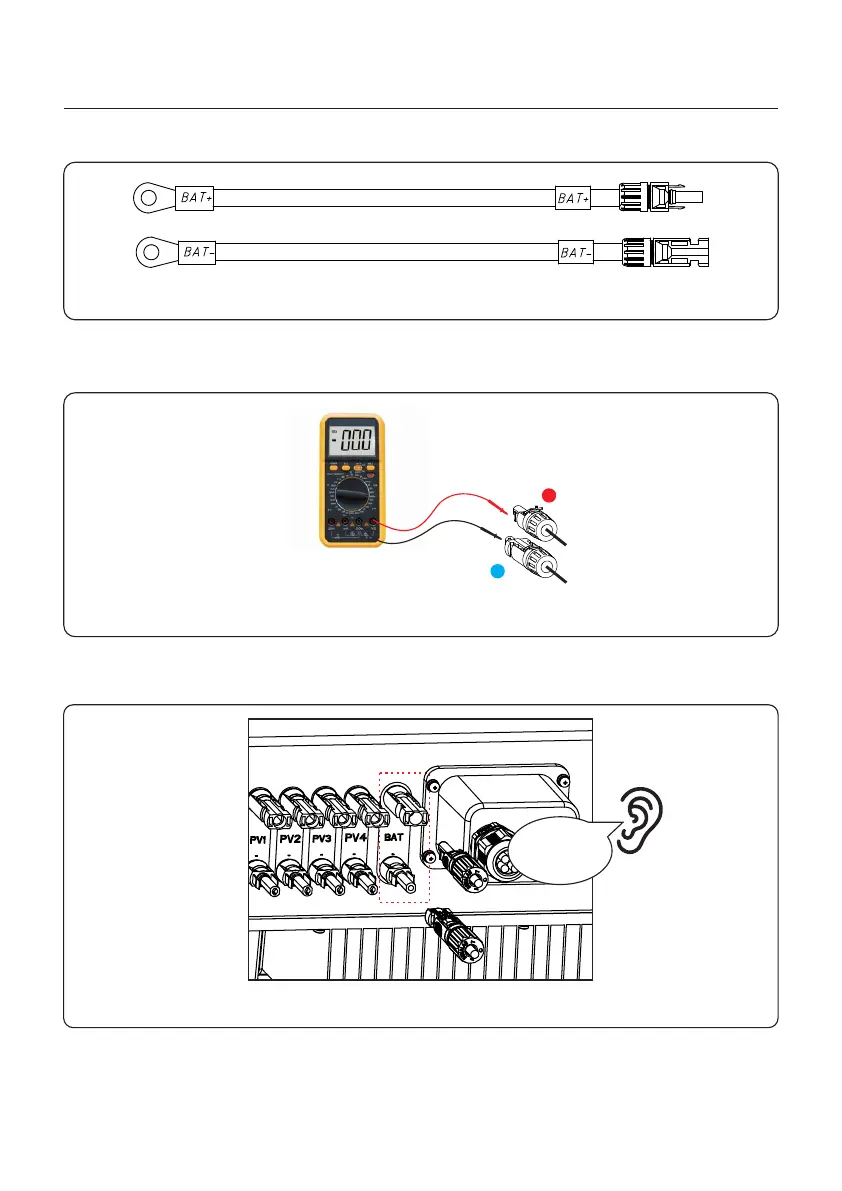

4.5 Battery Power Cable Installation
Figure 4.13
1. Connect the battery ends to the battery module positive and negative terminals.
2. Measure DC voltage of DC input with multimeter, verify DC input cable polarity.
+
-
Figure 4.14
3. Connect the inverter end to the battery input port of the inverter as shown below, and
push it in until you hear a "Click" sound which proves the fastened connection.
Click
Figure 4.15
To Next Page
