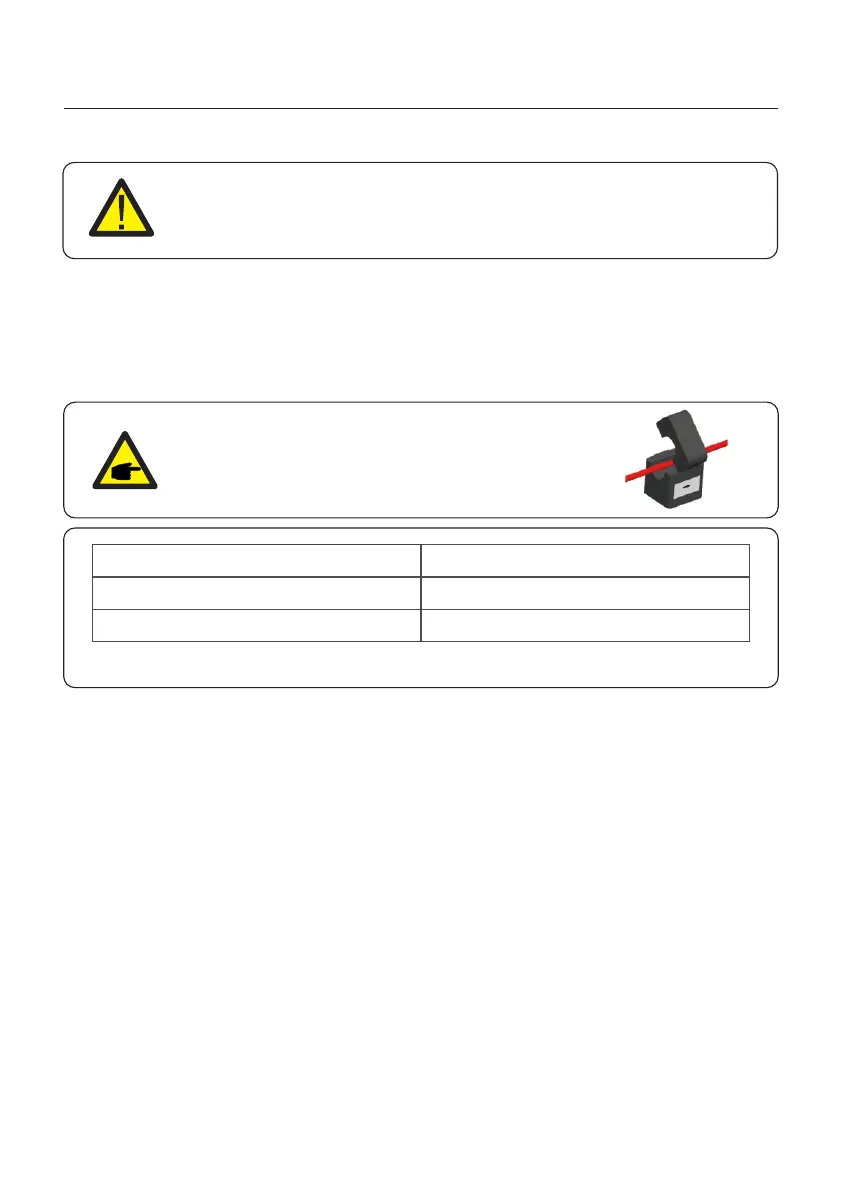

4.8 Meter Installation
CAUTION:
Make sure the AC cable is totally isolated from AC power before
connecting the Smart Meter and CT.
The Haier H3PH Series inverter is able to connected standard
Eastron meters to fulfill the control logic of the self-consumption mode, export power
control, monitoring, etc.
Eastron 3ph meter (With CT): SDM630MCT (Provided by default)
Eastron 3ph meter (Direct Insert): SDM630 (Optional, Customer prepare if needed)
NOTE:
Please note that the CT orientation must be correct,
otherwise the system will not work properly.
Grid si
d
e
K L
Compatible Smart Meter Model
Pin 13 – RS485B, Pin 14 – RS485A
B – RS485B, A – RS485A
SDM630MCT
SDM630
Meter RS485 Pin Definition
Table 4.6
User Manual
4. Installation
26
