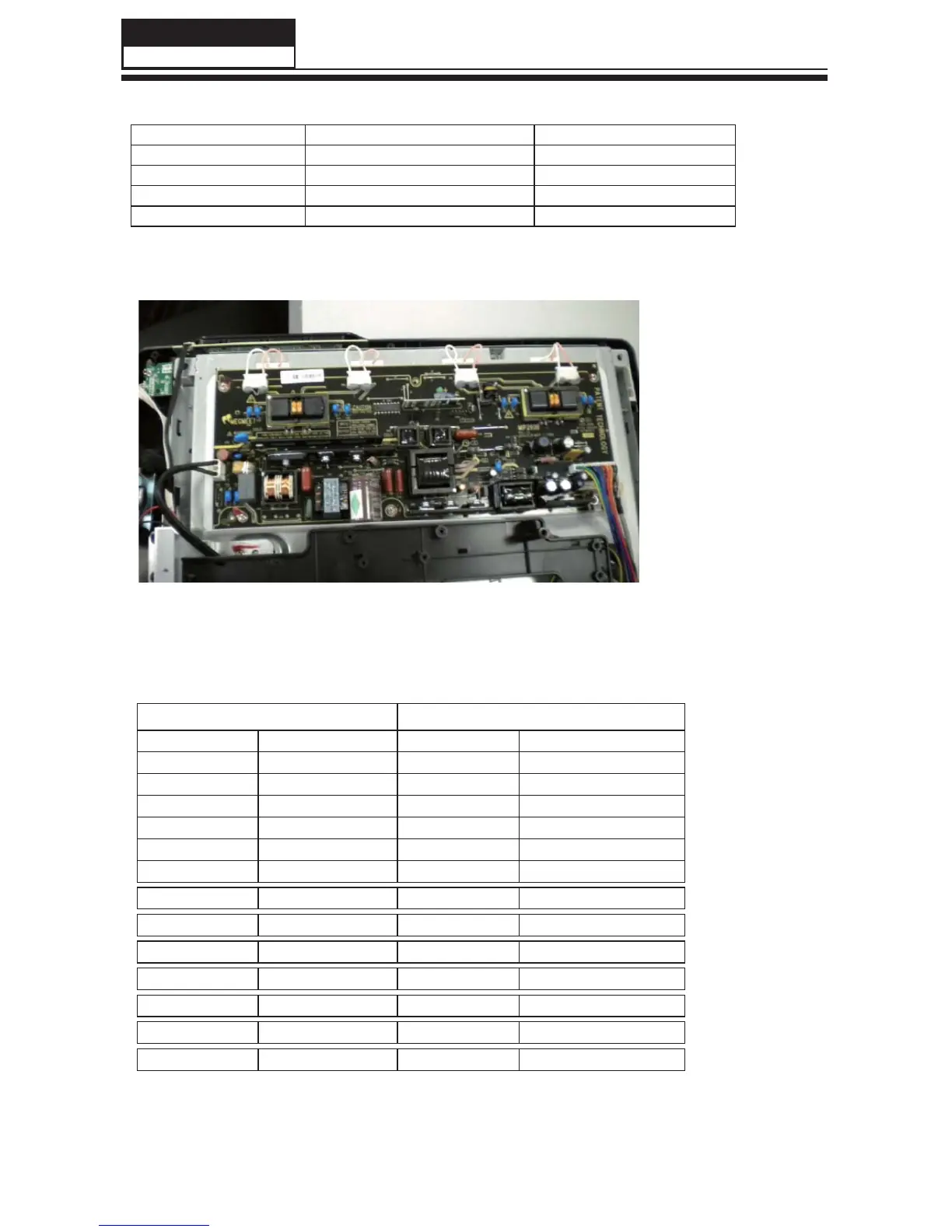

3-3. Power Board

3-3-1 Function Description:

Supply power for Main board, Panel.

3-3-2Connectordeﬁ nition

Service Manual

Model No.:

- 11 -

Speaker connector CN601

Pin number Signal name Description

1 RSPK+ RSPK+

2 RSPK- RSPK-

3 LSPK- LSPK-

4 LSPK+ LSPK+

CN11

CN10

Pin number Signal name Pin number Signal name

1 +5V 1 GND

2 BL 2 GND

3 DIM 3 +5V

4 high voltage 4 +5V

5 GND 5 POWER ON/OFF

6 +5VSTB

7 +5V

8 +5V

9 GND

10 GND

11 GND

12 +12V

13 +12V
