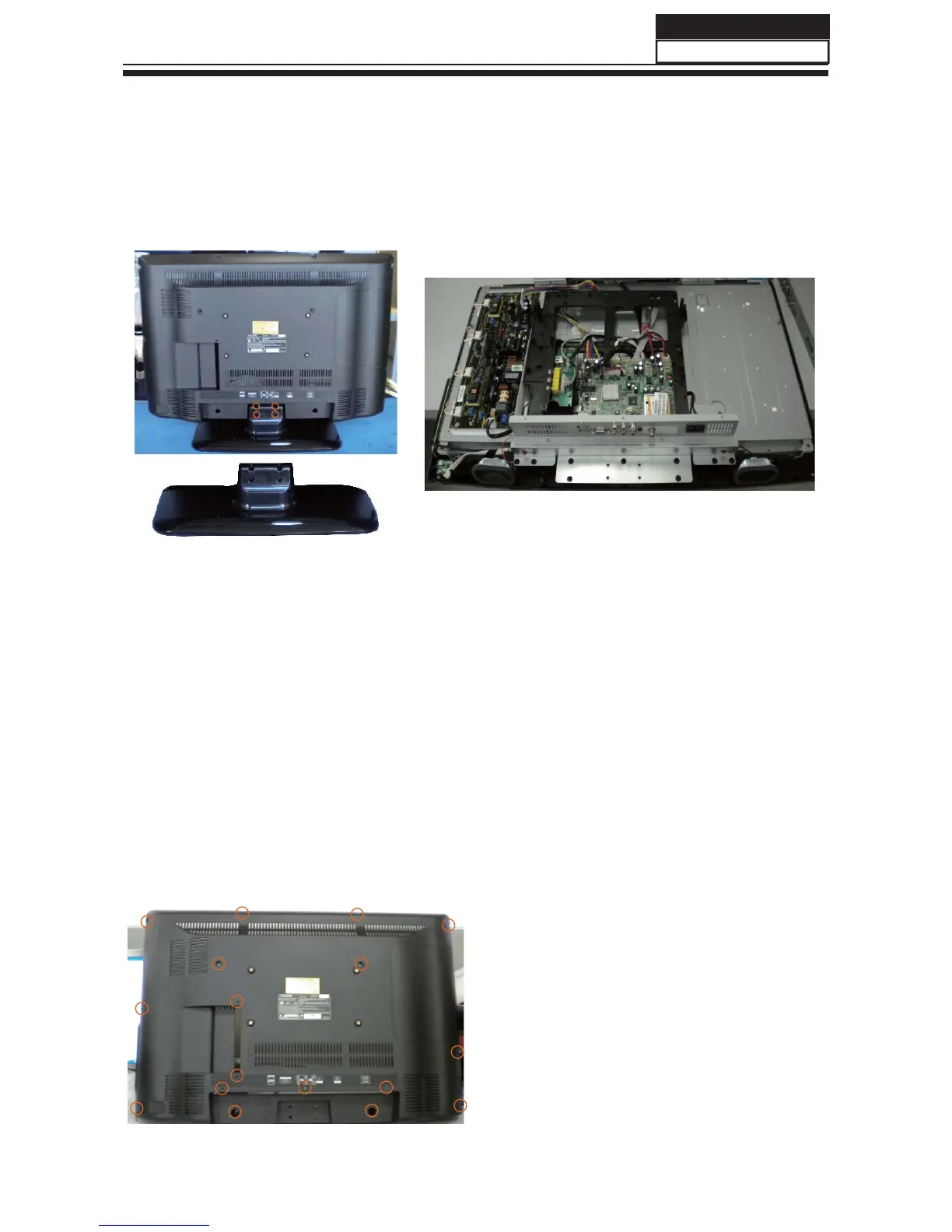

4. Disassemble and assemble
4-1 Remove the Pedestal 4-3. Remove the adhesive tape
(The location of the adhesive tape as follows)
Remove the adhesive tape indicated on the
fi gure above
Lay down the unit so that rear cover
faces upward
Remove the four screw from the
rear cover indicated with ○
Then remove the pedestal
4-2Remove the Back Cover
Remove the these screw indicated on
fi gure above by ○
Then remove the back cover from the
unit.
Service Manual
Model No.:
- 14 -
