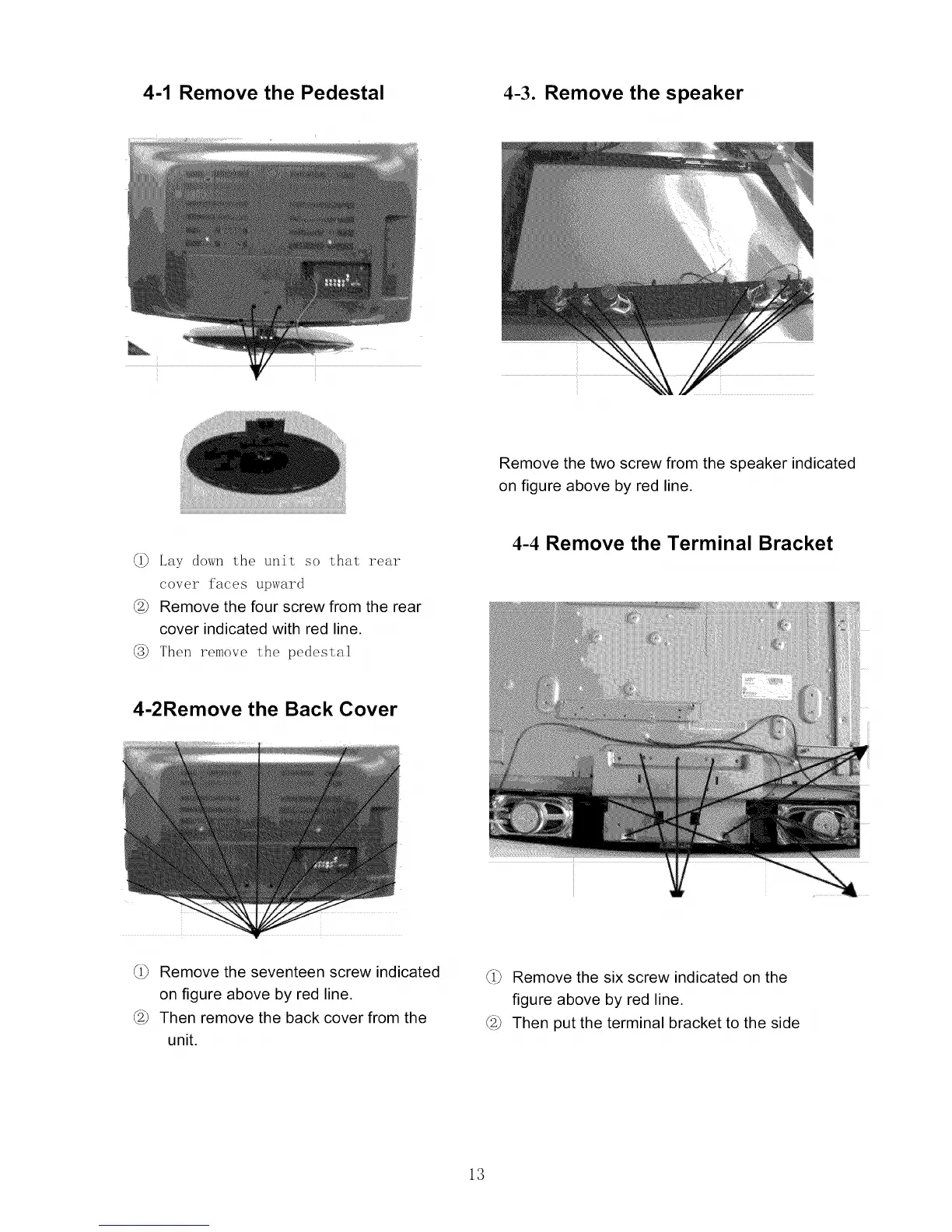

4-1 Remove the Pedestal 4-3. Remove the speaker
Remove the two screw from the speaker indicated
on figure above by red line.
(]) [Jay down the unit so that rear
cover faces upward
(2) Remove the four screw from the rear
cover indicated with red line.
_3) Then remove the pedestal
4-4 Remove the Terminal Bracket
4-2Remove the Back Cover
(1) Remove the seventeen screw indicated
on figure above by red line.
(2) Then remove the back cover from the
unit.
(`1) Remove the six screw indicated on the
figure above by red line.
(2) Then put the terminal bracket to the side
13
To Next Page
