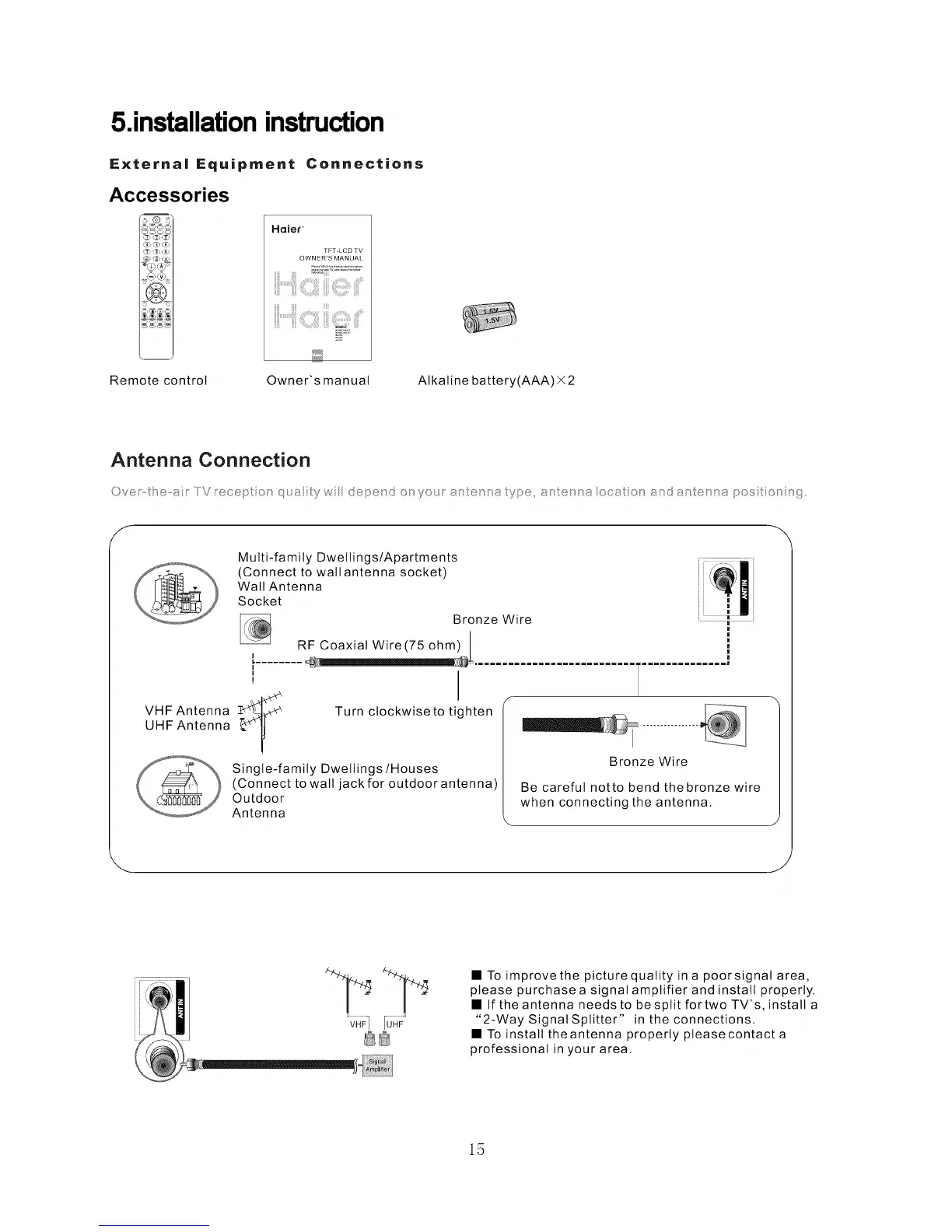

5.installationinstruction
Externa| Equipment Connections
Accessories
Haie¢ o
TFT-LCD TV
OWNER'S MANUAL
7
Remote control Owner's manual
Alkaline battery(AAA) X 2
Antenna Connection
VHF Antenna
UHF Antenna
Single-family Dwellings/Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
Walt Antenna
Socket
Bronze Wire ,................................................
,
RF Coaxial Wire(75 ohm) I
i........ _ _ ........................... ,-.............. ;
i, /
Turn ctockwiseto tighten _ ................
Bronze Wire
Be careful notto bend thebronze wire
when connecting the antenna•
-p-p
'v.--qF_
88
• To improve the picture quality in a poorsignal area,
please purchase a signal amplifier and install properly•
• If the antenna needs to be split fortwo TV's, install a
"2-Way Signal Splitter" in the connections•
• To install theantenna properly pteasecontact a
professional in your area.
