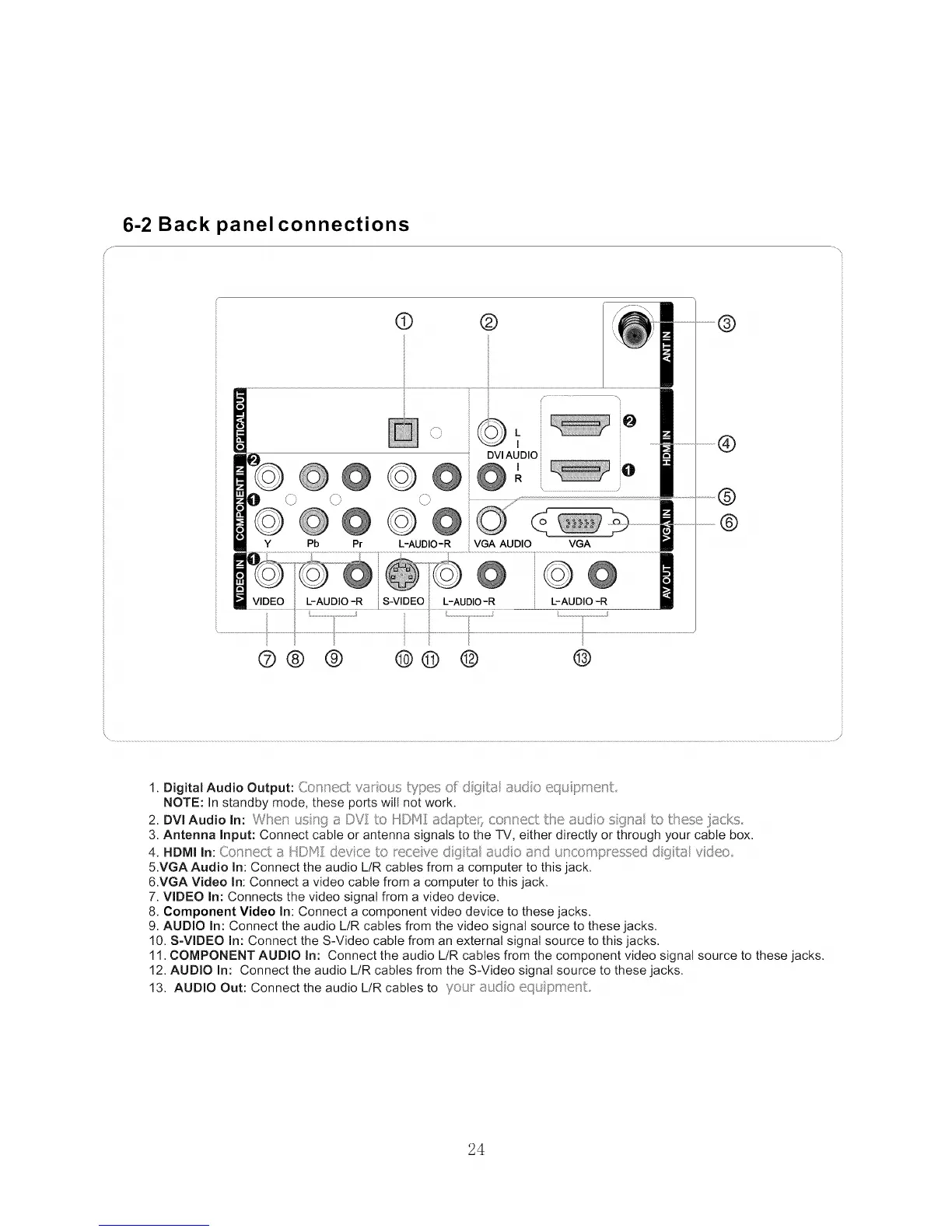

6-2 Back panel connections

Pb Pr

L-AUDIO -R S-VIDEO

L i°

DVI AUDIO

L-AUDIO -R

VGA AUDIO VGA

L-AUDIO -R

o@ @ oo o

1. Digital Audio Output: Connect: vat ous Iypes of d gil:;}_t_}_tsdo equ pment

NOTE: In standby mode, these ports will not work.

2. DVI Audio In: When us_9 a DVZ to HDe_Z adapter_ conned: the audo sDnat to these ;scks

3. Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.

4. HDMI In: Co nect a HDF_I dc_vce to rece w_ dgb2t audo and uncompressed d _ t_ vdeo

5.VGA Audio In: Connect the audio L/R cables from a computer to this jack.

6.VGA Video In: Connect a video cable from a computer to this jack.

7. VIDEO In: Connects the video signal from a video device.

8. Component Video In: Connect a component video device to these jacks.

9. AUDIO In: Connect the audio L/R cables from the video signal source to these jacks.

10. S-VIDEO In: Connect the S-Video cable from an external signal source to this jacks.

11. COMPONENT AUDIO In: Connect the audio L/R cables from the component video signal source to these jacks.

12. AUDIO In: Connect the audio L/R cables from the S-Video signal source to these jacks.

13. AUDIO Out: Connect the audio L/R cables to yor ado equipment
