VCR connection
To avoid picture noise (interference), leave an adequate distance
between the VCR and TV
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Connection Option 2

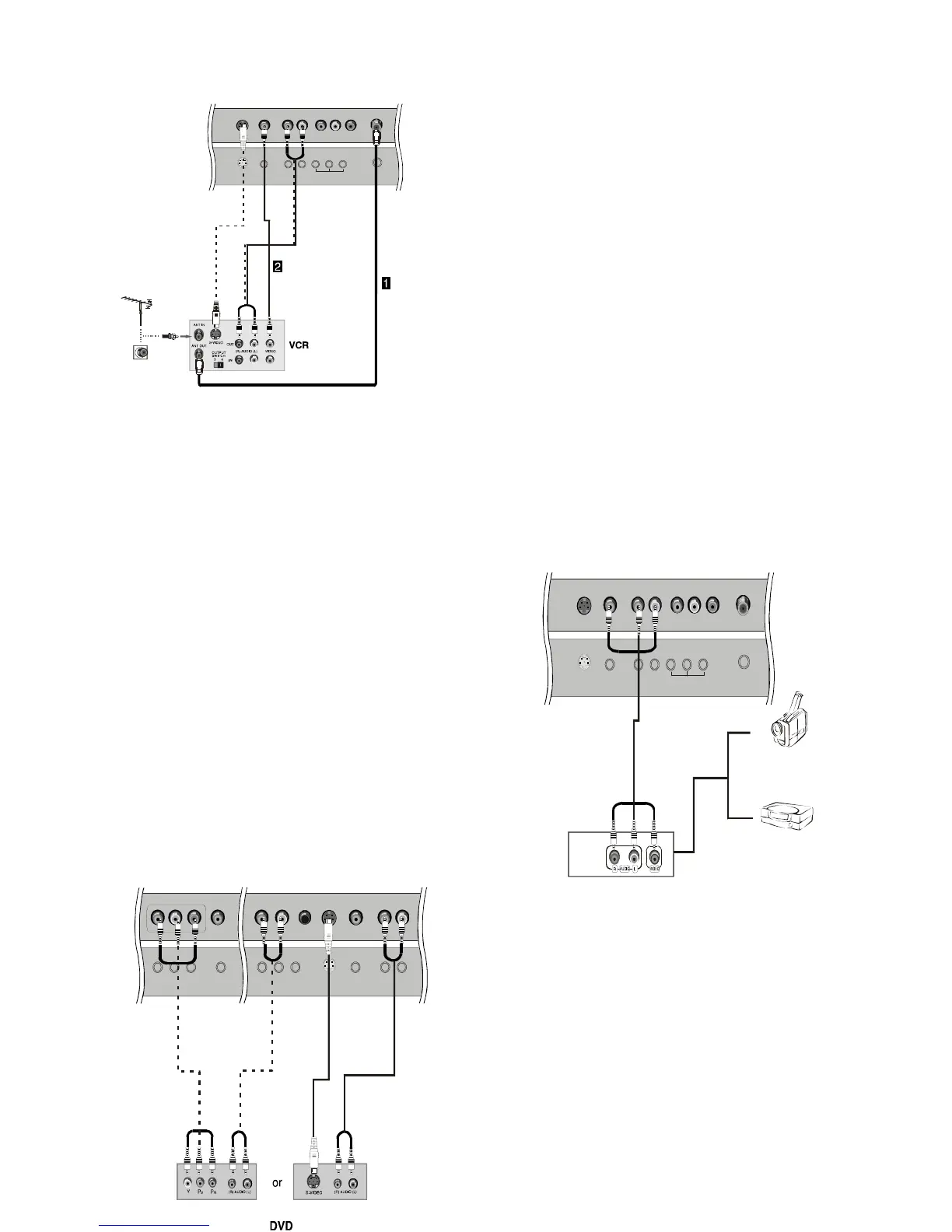

1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,and Audio Right = red).If
you connect an S-VIDEO output from VCR tothe S-VIDEO input, the
picture quality is improved; compared to connecting a regular VCR to the Video input.
2. Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner`s manual.)
3. Select the input source with using the INPUT button on the remote control, and then press ▲/▼ button to select the
source,press the ►button to confirm.
External Equipment Connections
External A/V Source Setup
How to connect
Connect the audio and video cables from the external equipment's
output jacks to the TV input jacks, as shown in the figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the INPUT button on
the remote control.
2. Press the ?/ ?button to select the desired source.
3. Press the ok button to confirm
2. Operate the corresponding external equipment.
How to connect
1. Connect the DVD video outputs (Y, Pb/Cb, Pr/Cr) to the Y, Pb, Pr
jacks on the TV and connect the DVD audio outputs to the YPbPr
Audio IN jacks on the TV, as shown in the figure.
2. If your DVD only has an S-VIDEO output jack, connect this to
the S-VIDEO input on the TV. as shown in the figure.
NOTE: If your DVD player does not have component video output,
use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
S-Vide o CVBS S-Video/CVBS
Audio In
LR RL V
AV O UT
R INPU T
F
Video Game Set
Camcorder
S-Video CVBS S-Video/CVBS
Audio In
LR RL V
AV O UT
R INPUT
F
Pr Pb
Y
DVI Audio IN
YPbPr
Audio In
LR
Headp hone
out
S-Video CVBS S-Video/CVBS
Audio In
LR
