2. Use the INPUT button on the remote control to select YPbPr mode.
3. Press Play button on external equipment for program play.
4. Refer to the DVD player's manual for operating instructions.
■ Component Input ports
To get better picture quality, connect a DVD player to the
componentinput ports as shown below.
Component ports on the TV Y Pb Pr
Video output ports on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
P
Β
Pr
R-Y
Cr
PR

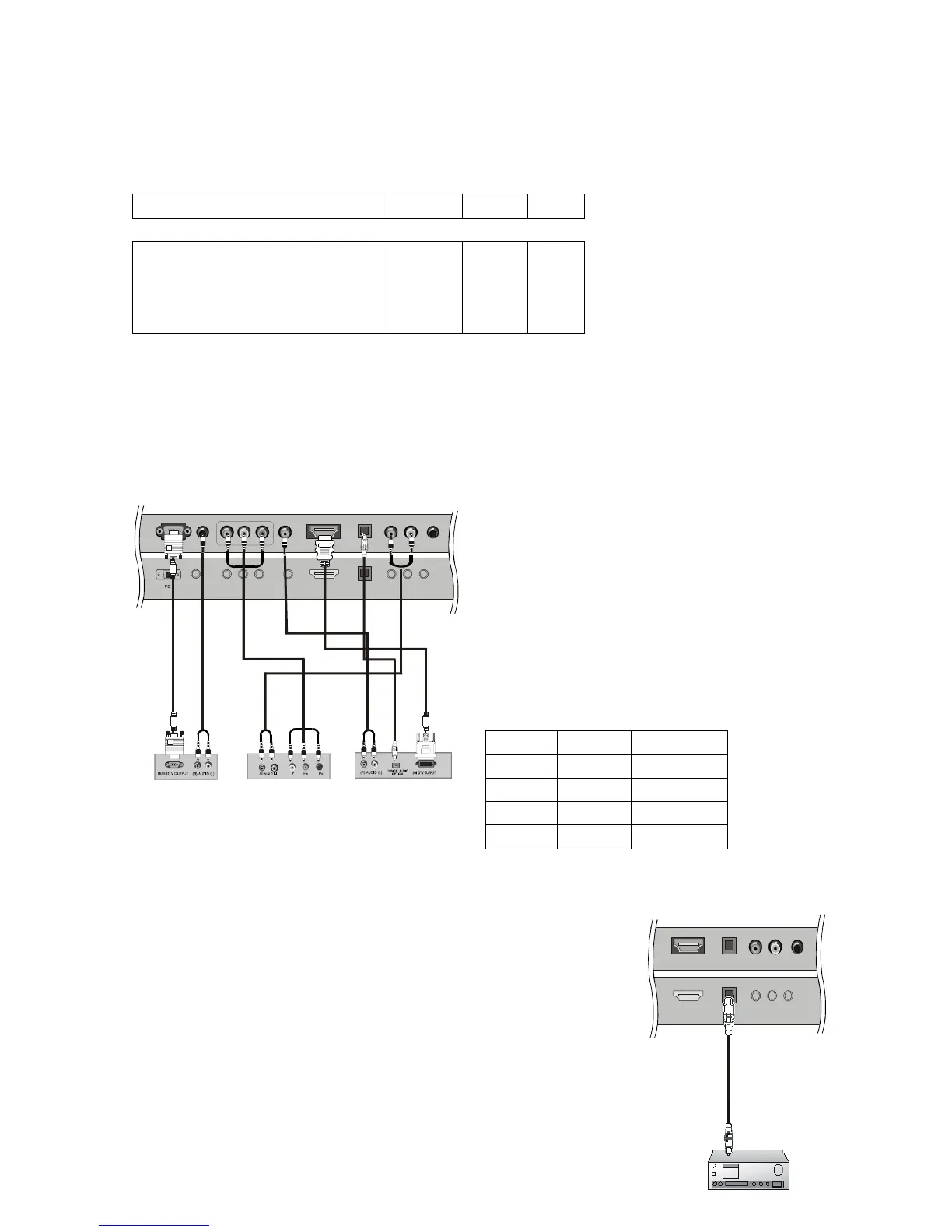

DTV connection
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However,
if you do receive Digital
signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents
(480p,720p,1080i).
How to connect
Use the TV`s (Y, PB, PR) , VGA or HDMI jack for video
connections, depending on your set-top box connector.
Then, make the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the owner`s
manual for the digital set-top box.)
2. Use INPUT on the remote control to select YPbPr, VGA,
or HDMI source.
Digital Set-top Box
Digital Audio Output
Send the TV`s audio to external audio equipment (stereo system) via
the Digital Audio Output (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.
2. Connect the other end of the optical cable to the digital audio (optical)
input on the audio equipment.
See the external audio equipment instruction manual for operation.
Note: When connecting with external audio equipments, such as
amplifiers or speakers, please turn the TV speakers off.
Signal YPbPr HDMI/DM
480i Yes Yes
480p Yes Yes
720p Yes Yes
1080i Yes Yes
Audio In
Pr Pb
Y
DVI Audio IN
HDMI
Optical
YPbPr
A
udio In
LR
Headphone
out
HDMI
Optical
YPbPr
A
udio In
LR
Headphone
out

Haier HLC19R Specifications

General

Brand	Haier
Model	HLC19R
Category	TV
Language	English
