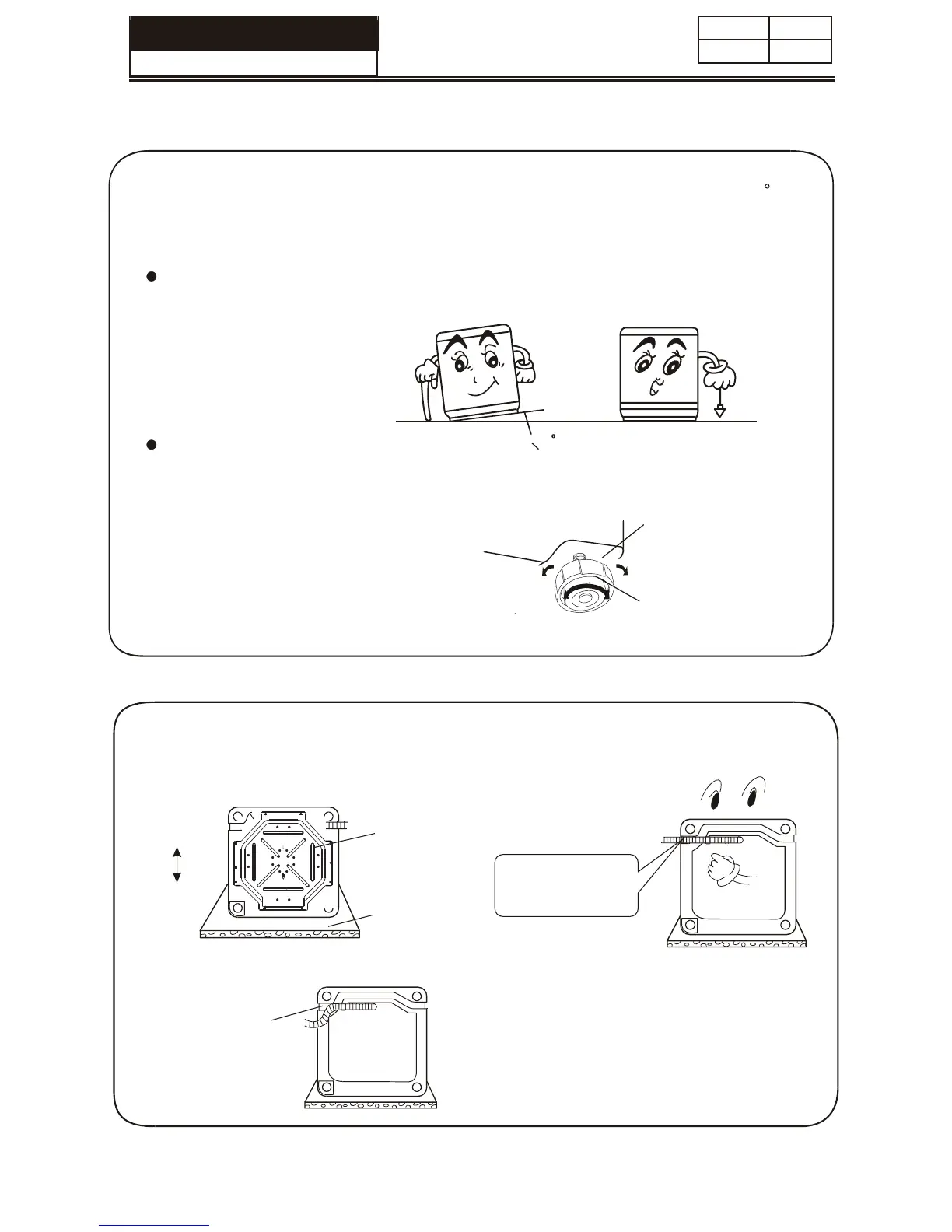

The largest allowed slope of the shank base of the machine is 2 .
Slanting or rough ground will result in unstable running or stoppage
Confirm it's horizontal:
Adjust the adjustable foot:
Hang up the lead line to
confirm it is horizontal.
1) Please lift the foot side slightly in adjusting the foots. Loosen
the adjustable nut, and twist the foot.
2) Fasten the nut after adjustment.
<2
4-3 Adjustment of the installation position
Loosen Fasten
High
Low
adjustable nut
adjustable foot
1.Lean the machine down gently with the
front surface facing the ground. Loosen
the eight screws by a cross screwdriver.
Take off the bottom plate
3.Extend the drain hose from the left side.
Push the drain hose into the groove with
hands.
4.Install the bottom plate (method as stated in p6),
then lift the machine up gently.
2.Pull out the drain hose from the right side
groove.
Back
Front
Bottom plate
Soft item
Use this groove after
direction changing
Push the drain
hose into the
groove with hands
4-4 How to change the direction of the drain hose
