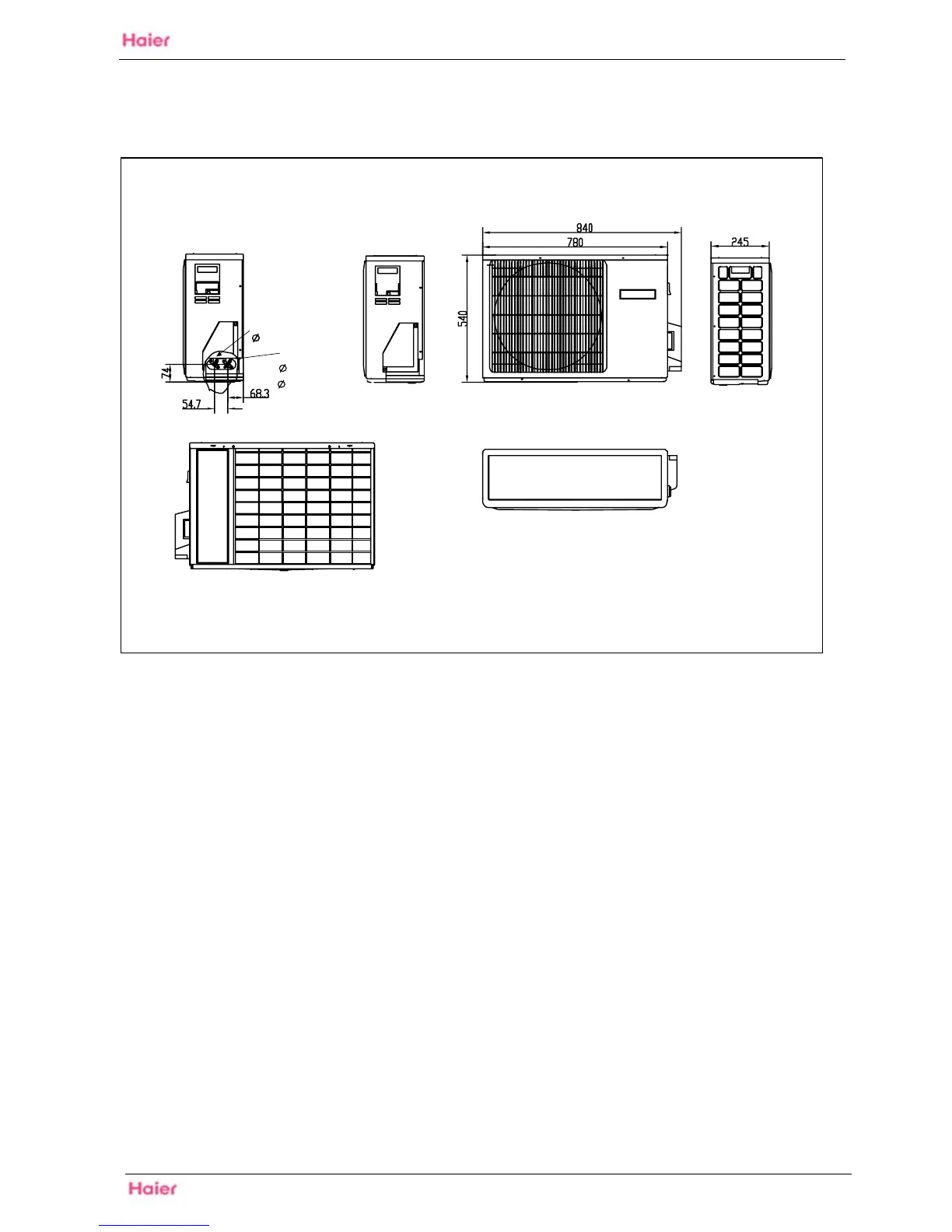

Dimensional drawings

Domestic air conditioner
Outdoor unit
HSU-09(12)HA/HVA/RHA103/R2(DB)
HSU-09(12)HA/HVA/RHA103/R2(DB)
2-way valve
6.35mm(1/4")
6.35mm(1/4")
3-way valve
9.52mm(3/8")
