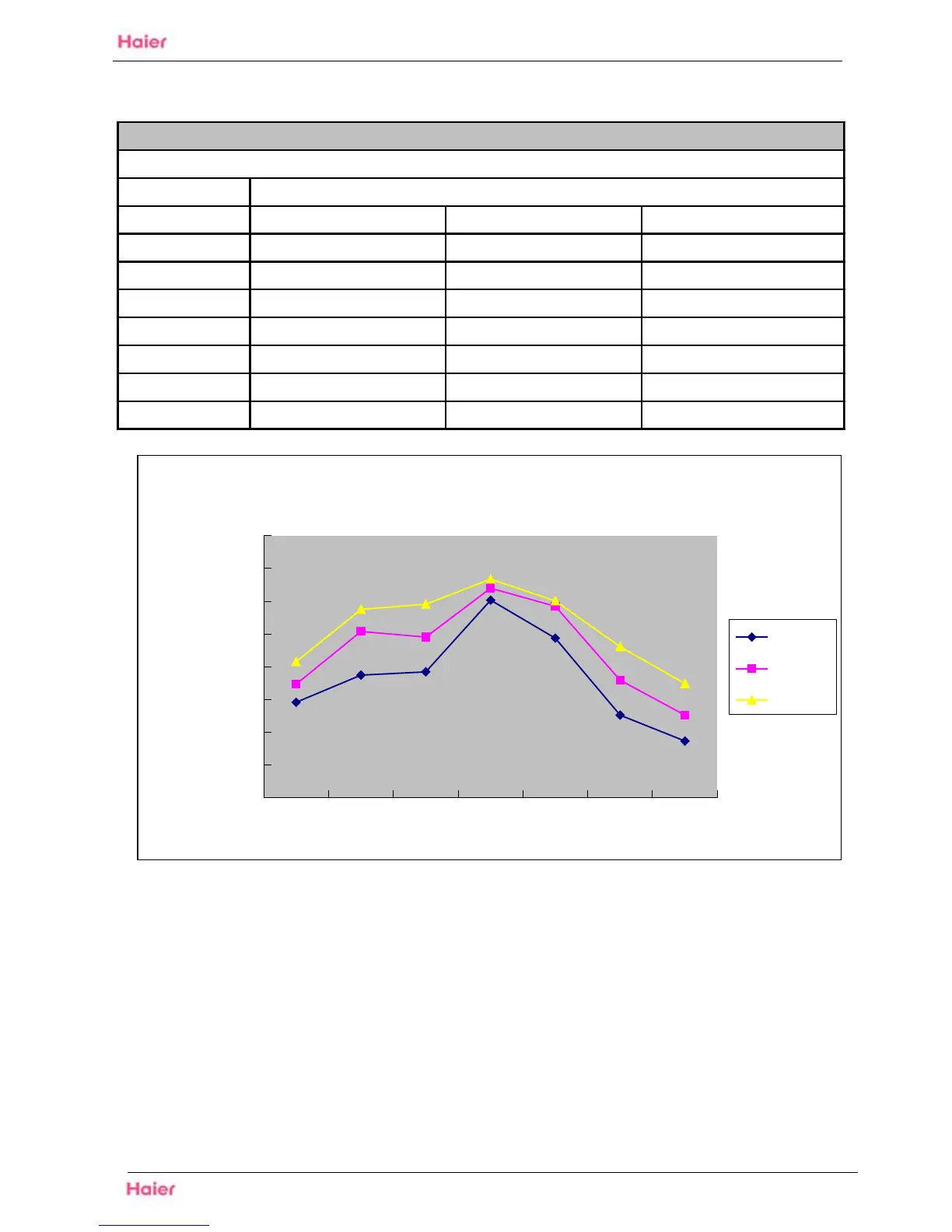

HSU-09(12)HA/HVA/RHA103/R2(DB) Capacity
36
Domestic air conditioner
outdoor temp.
DB/WB 15℃ 20℃ 25℃
-15℃
492 547
615
-5℃
575
708
775
5℃
585
690
791
7/6℃
803
840 868
15℃
687
785
801
20℃
452 559
661
25℃
374 452
549
indoor temp.(humidity 46%)
power consumption value-temp.talbe
HSU-09HA103/R2(DB)
performance curves
heating capacity and indoor/outdoor temp.curves
200
300
400
500
600
700
800
900
1000
-15℃ -5℃ 5℃ 7/6℃ 15℃ 20℃ 25℃
h
eating capaci
ty(W)
15°C
20°C
25°C
9.4 Heating Power Consumption Value-temperature Curves
