SERVICE MANUAL
Front Load Washing Machine
Chapter 7 Appearance brief introduction

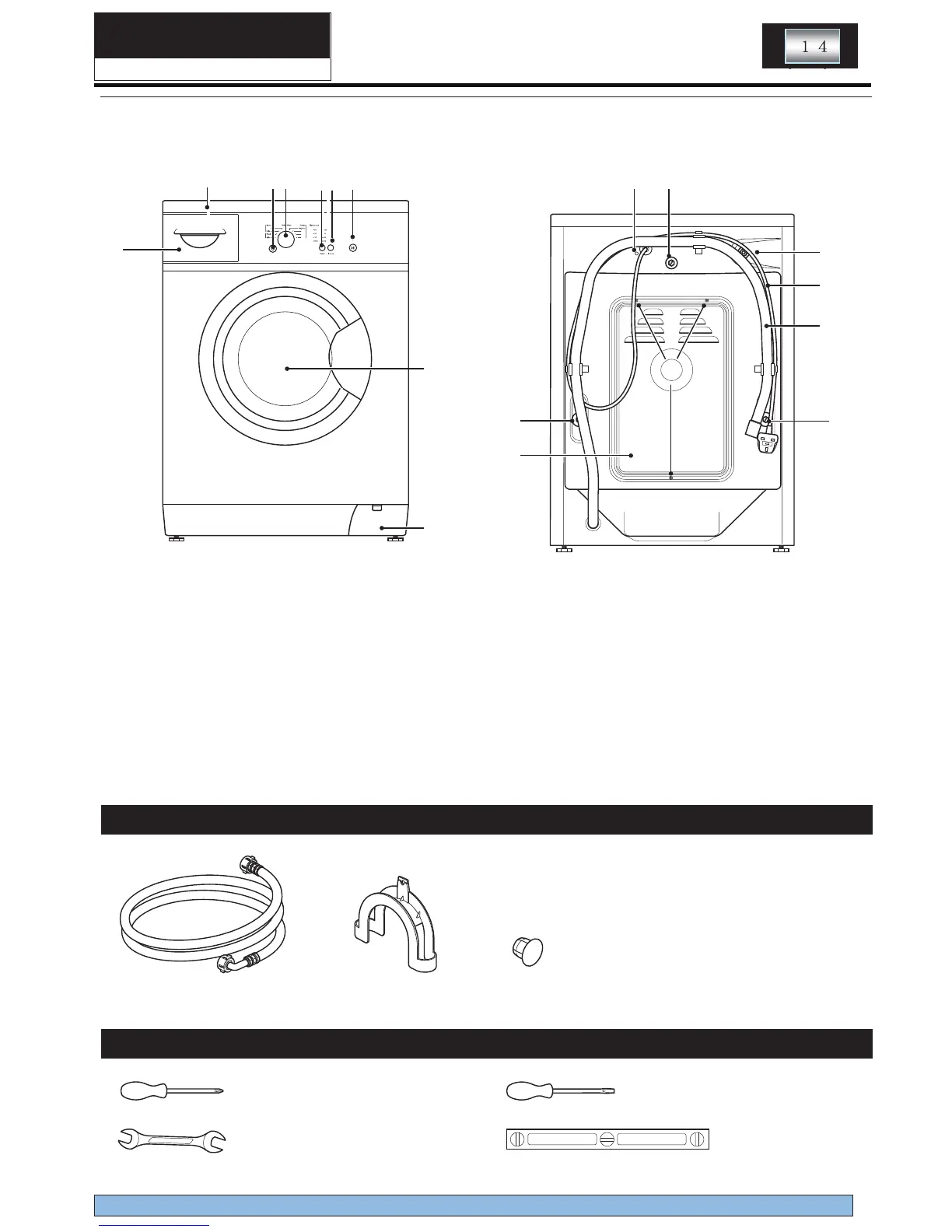

7-1. Name of parts
HW50-1002W
C
。
90
C
。
60
C
。
40
C
。
40
C
。
30
Accessories included
Front
1. Detergent drawer
2. Top panel
3. Power button
4.
Start/pause button
5.
Programme selection dial
6.
Door
7.
Filter
Back
10. Back plate
11. Packing bolt x 3
12. Earth terminal
13. Water inlet
14. Power lead
15. Drain hose
16. Back plate screw x 3
Hose clip x 1
Water inlet hose x 1 Plastic plug x 3
1
3 5
9
8
2
10
13
14
15
12
Tools required for installation
Phillips screwdriver (medium)
Flatblade screwdriver (large)
Spirit level
13mm & 16mm Spanners
11
11
11
16
4
6
7
Speed button
intense button
8.
9.
