Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine

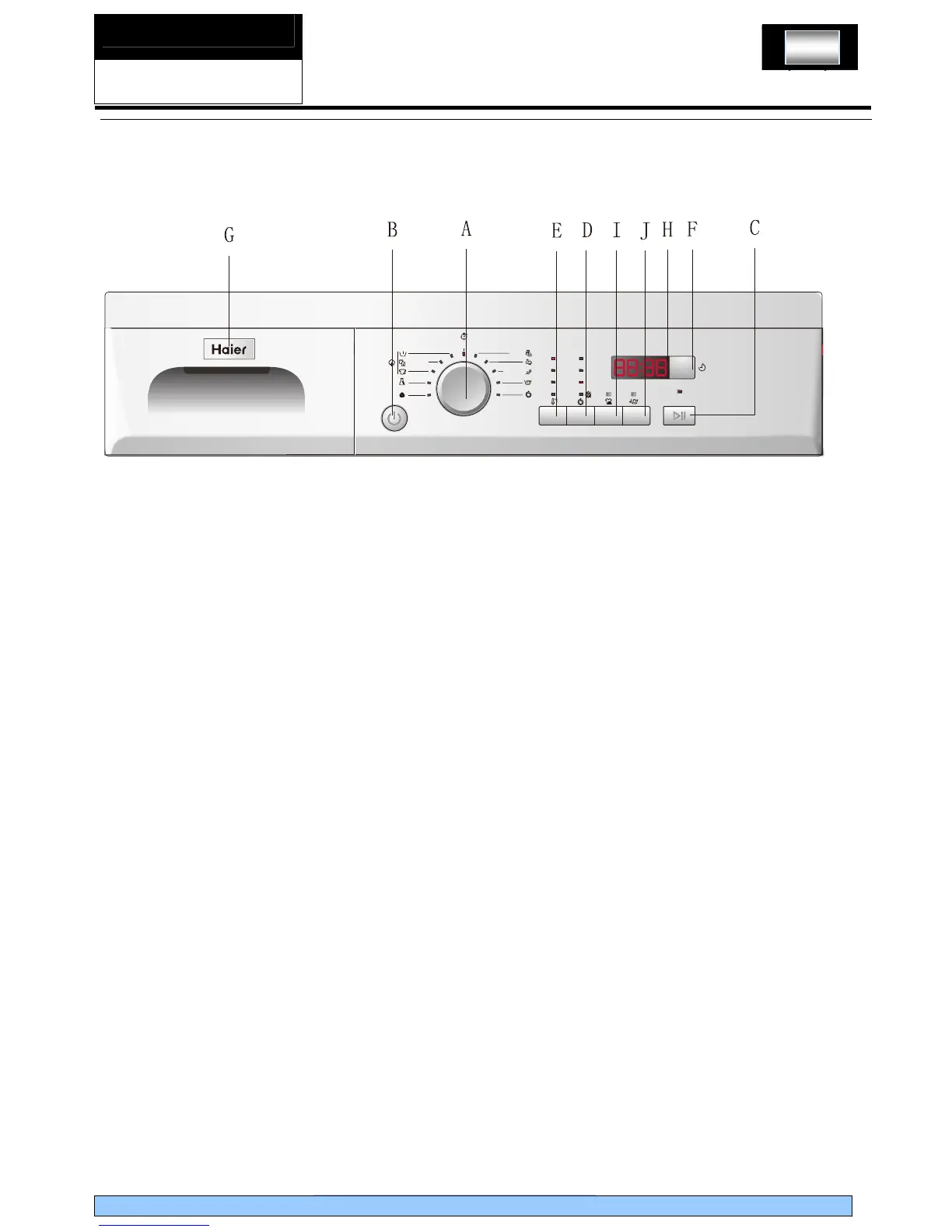

Chapter 4 Operational Guidance
A
Program knob
B
Power Switch
C
Start/Pause button
D
Spinning Speed Setting button
E
Washing temperature button
F
Delay Button
G
Detergent distribution drawer
H
Display
I
Intense button
J
Extra rinse button
A ¬ Program
knob
_By turning the knob clockwise/counterclockwise, the required program
can be selected. There are 11 programs available. After a program is
selected, the corresponding light will go on.
B ¬ Power
Switch
_ Press this button to switch on the washing machine. Press it again to
switch it off.
C ¬ Start/Pause
Button
_ When the washing machine is connected to the power socket and a
program is selected, lightly touch this button to start operation. During a
wash cycle, touch it lightly ,operation will stop and the digits on the screen
start blinking. Touch it again to resume operation. To cancel a wash
program during a wash cycle, touch this button, when the digits on the
screen start blinking, press the Power switch, the program will be
cancelled.
D ¬ Spinning
Speed
Setting
Button
_
Touch this button lightly to select the desired speed. When a speed is set,
it will be displayed on the indicator.
Note: Different water temperatures and spinning speeds can be set
for different laundries. Wash using the default settings if there is no
special requirement.
E ¬ Washing
temperature
button
_ Touch this button lightly, the washing temperature will be displayed on
the indicator. Select a temperature according to the type of laundry.
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
1000
800
400
Standard
Sport
Delicate
HW60-1002D
15'
eco
C
。
30
C
。
40
C
。
60
C
。
90
14

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
