Haier HW60-1202D Service Manual

SERVICE MANUAL
Front Load Washing Machine

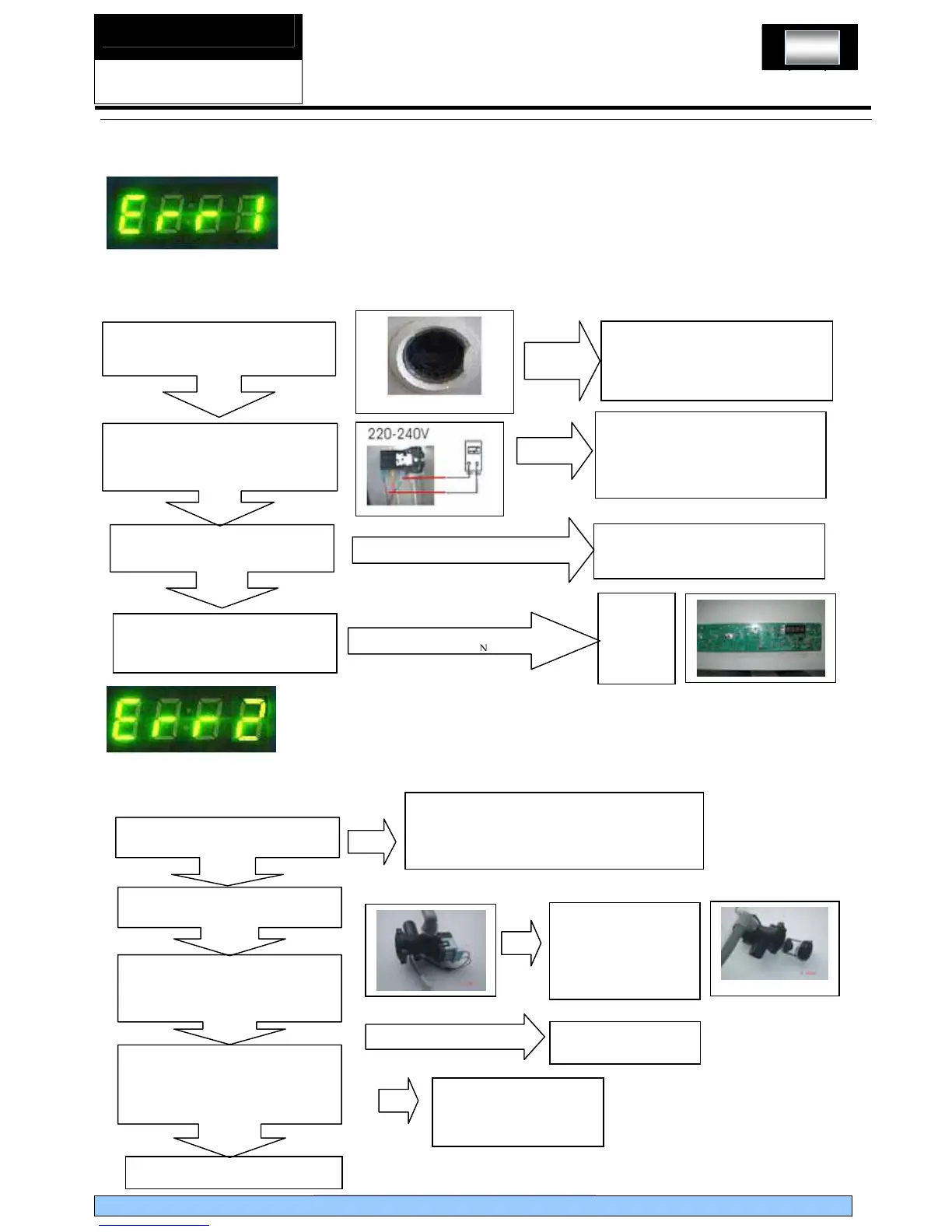

Chapter 10 Error Display and troubleshooting
10-1. Error Display
Error message:Door is not properly shut 20s after program is started.
Troubleshooting:
Error message: Drainage error, water not emptied within 4 min.
Troubleshooting:
Pushing the door to Check Whether
Door is properly shut or not
Y
Shut the door properly
Door lock is broken and need replacing,
then make sure wire is connected
properly.
N
Check the voltage between 12-3 and
12-12 of PCB, is it between AC
220-240V?
Check if drain pump acts by touching
pump position
Y
Check if drain pump or
drain pipe is jammed,
And open the filter and
clean
N
Cut off the power and choose spin
program to start ,then check the import
voltage of drain pump, is it between
AC 220-240 V?
Replace drain pump
N
Cut off power and pull out water level
pressure switch wire connection. Set
spin program to start. Check the export
voltage to drain pump, is it between AC
220-240V?
Replace PCB
Cut off the power and then turn on again.
Check the voltage between brown wire
and blue wire of door lock, is it between
AC 220-240V?
N
Y
Replace
PCB
N
Connect the wire properly
Check if the wire connecting door lock
and PCB is loose
N
Y
Check if water is emptied
Y
Cut off power and water level pressure switch wire
connection, measure the resistance of 11 and14 pin,
is it infinite? If not, it is water level pressure switch
failure and replaces it. If it is, then repair and check
PCB and wire as followed.
N
Y
The wire between PCB
and drain pump is not
connected properly.
Replace the wire.
Y
N
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
２４

Haier HW60-1202D Specifications

General

Door hinge	Left
Drum volume	39 L
Control type	Buttons, Rotary
Display type	LED
Loading type	Front-load
Product color	White
Built-in display	Yes
Door opening angle	180 °
Appliance placement	Freestanding
Half-load	-
Drum capacity	6 kg
Cycle time (max)	168 min
Delay start (max)	24 h
Residual moisture	64 %
Spin-drying class	B
Maximum spin speed	1200 RPM
Minimum spin speed	400 RPM
Noise level (spin)	72 dB
Noise level (wash)	56 dB
Number of washing programs	11
Washing class	A
Annual water consumption washing	8483 L
Annual energy consumption washing	182 kWh
Current	10 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	2000 W
Water consumption per cycle	- L
Energy consumption washing per cycle	0.895 kWh
Package weight	67000 g

Weight and Dimensions

Depth	520 mm
Width	595 mm
Height	850 mm
Weight	65000 g
Door diameter	320 mm
