SERVICE MANUAL
Front Load Washing Machine
Chapter 9 Wiring circuit and Self check

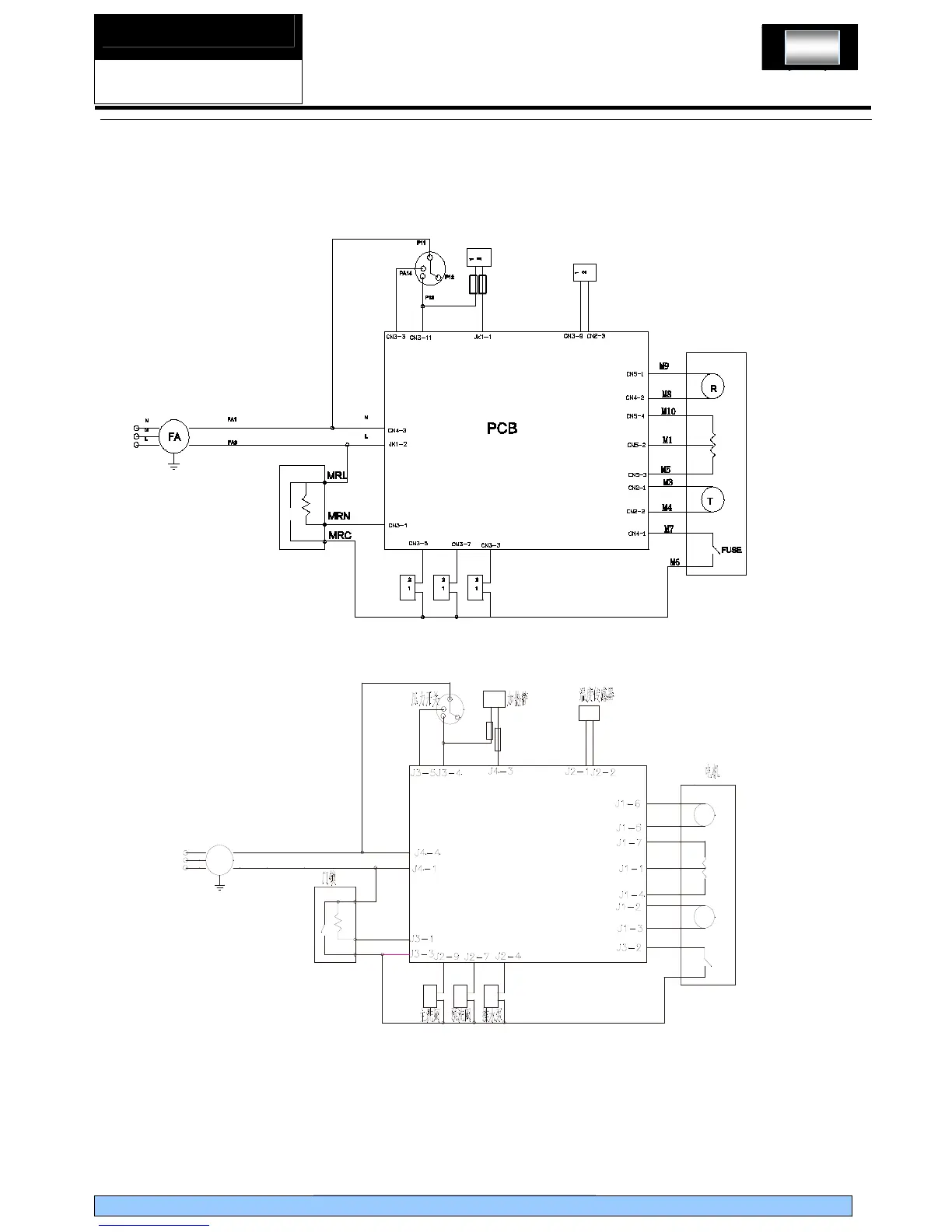

9-1. Wiring circuit
HW70-1202D HW60-1202D
HW60-1002D HW50-1202D
22
主洗阀
预洗阀  排水泵
门锁
压力开关 加热管
温度传感器
电机
fuse
fuse
HW60-1202D HW60-1002D HW50-1202D
HW70-1202D
FUSE
FUSE
PCB
MRC
MRN
L
N
MRL
1
2
1
2
2
1
1
2
2
1
P11
P13
P12
M6
M7
M9
M8
M10
M1
M5
M3
M4
T
PA14
R
FA
L
G
N
FA1
FA3
FUSE
