8
IMPORTANT: Do not apply pressure
to the screen display area which may
compromise the integrity of the display.
The manufacturer’s warranty does
not cover user abuse or improper
installations.

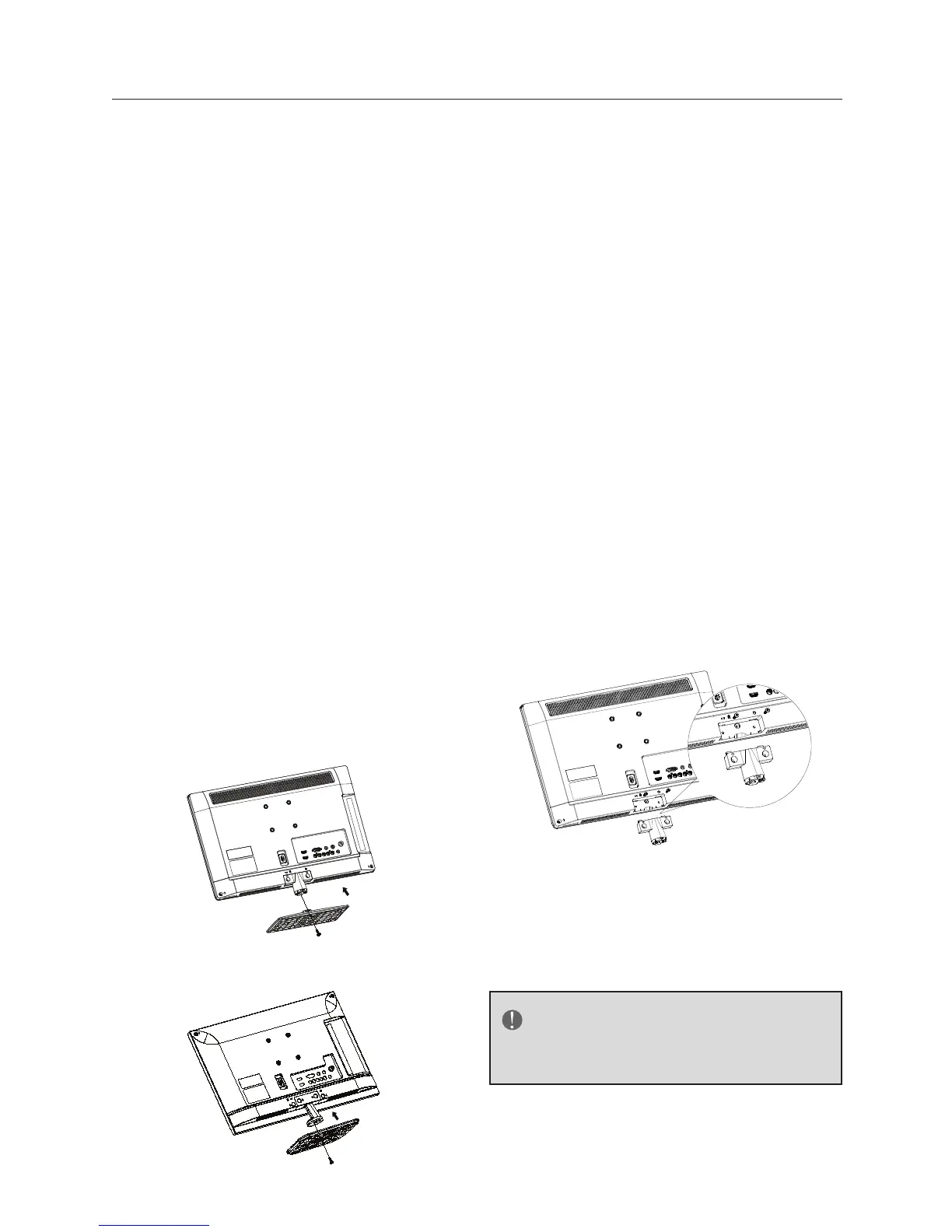

ATTACHING THE BASE
IMPORTANT:
The Base of the HDTV
must be assembled prior to usage.
1. Carefully place the TV screen side
down on a table. We suggest that
you place the wrapping material
from the TV package on the table
top to protect the screen from
damage.
2. Carefully align and insert the base
to the neck.
3. Gently push the Base towards the
HDTV until the locking mechanism
locks into place.
4. Fasten the base using the supplied
screws.
22"
24"
PREPARING YOUR LCD HDTV
FOR WALL MOUNTING
We suggest that you keep your TV at
least 2.36 inches (60 mm) from the wall
to prevent cable interference.
Before mounting your TV on the wall,
you need to remove the neck and the
base.
For your safety, please use only with
a UL listed wall mount bracket with
minimum weight of the TV without
stand. (Please see page 28.)
To attach a wall mount bracket to your
TV:
1. Remove the screws holding your
TV to the stand.
2. Remove the neck and the base
from your TV.
3. Secure the wall mount bracket
to the back of your TV using four
screws.
• LE22D3380/LE24D33800: VESA mount
pattern: 75 x 75mm; Screw: M4, length:
8mm
NOTE
The wall mount bracket and the
screws are not included.
PREPARATION
