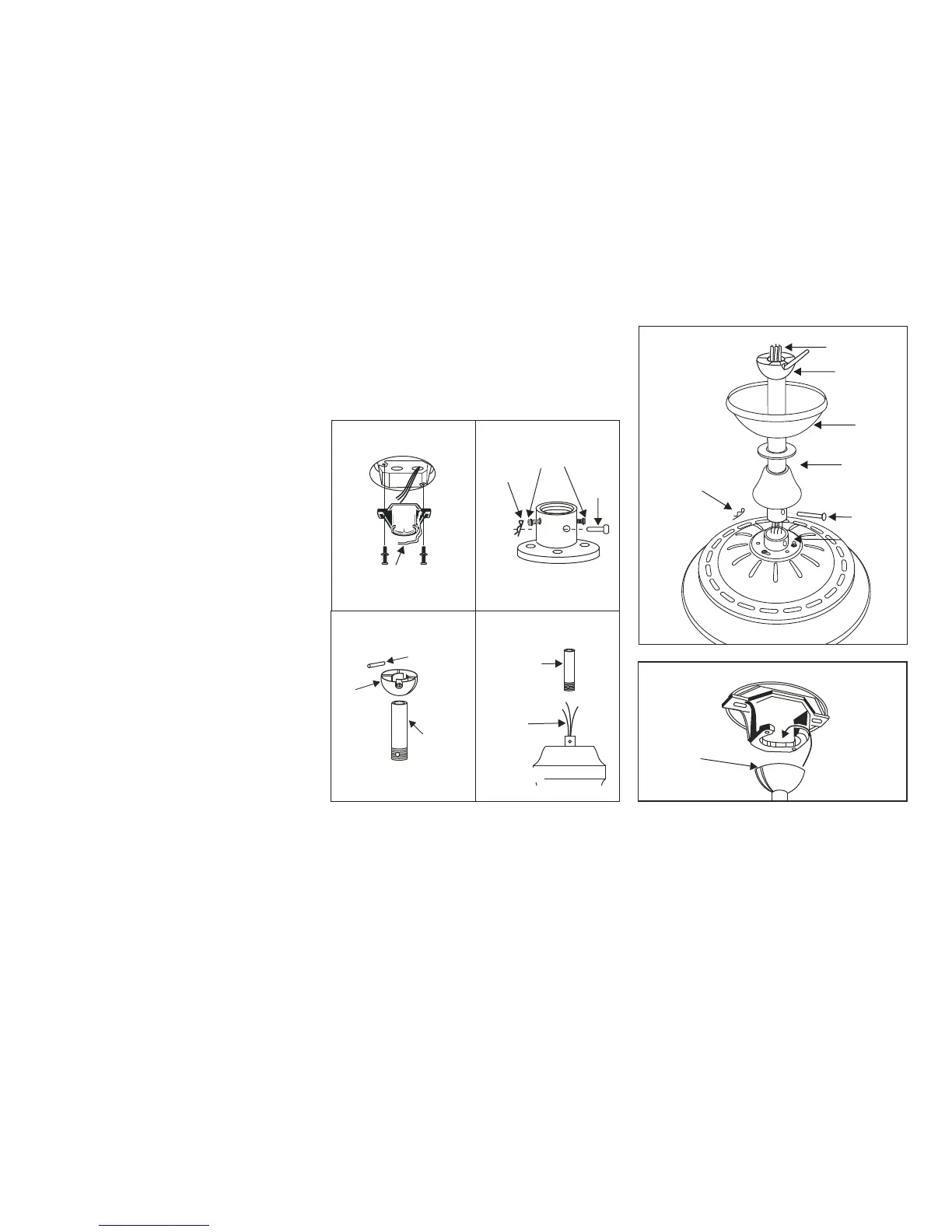

Hanging the Fan
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
1. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box. (Figure 5)
2.
3. Remove hanger ball from downrod assembly
by loosening set screw, removing the cross pin,
and sliding ball off rod. (Figure 7)
4. Carefully feed fan wires up through the
downrod. (Figure 8) Thread the rod into the
coupling. Next, line up holes and replace lock
pin and hitch pin. Tighten set screws.
5. Slip coupling cover, canopy cover and
canopy onto downrod. (Figure 9) Carefully
reinstall hanger ball onto tod being sure that
cross pin is in correct position, set screws are
tighten and wires are not twisted.
Remove the hitch pin and lock pin from
the downrod assembly. Loosen the two set
screws from the motor assembly. (Figure
6)
6. Now lift motor assembly into position and place
hanger ball into hanger bracket. Rotate until the
check groove drops into the registration slot and
seats firmly. (Figure 10) Downrod should not rotate
if this is done correctly.
Figure 6
Downrod
Supply
wires
Figure 8
Figure 10
Registration
slot
Figure 5
Cross pin
Hanger
ball
Downrod
Figure 7
Outlet box
Hanger bracket
Hitch
pin
Lock
pin
Set
screws
Figure 9
Split Pin
Collar Cover
Pivot Pin
Motor Collar
Lead Wires
Ball/Downrod
Assembly
Canopy
4
