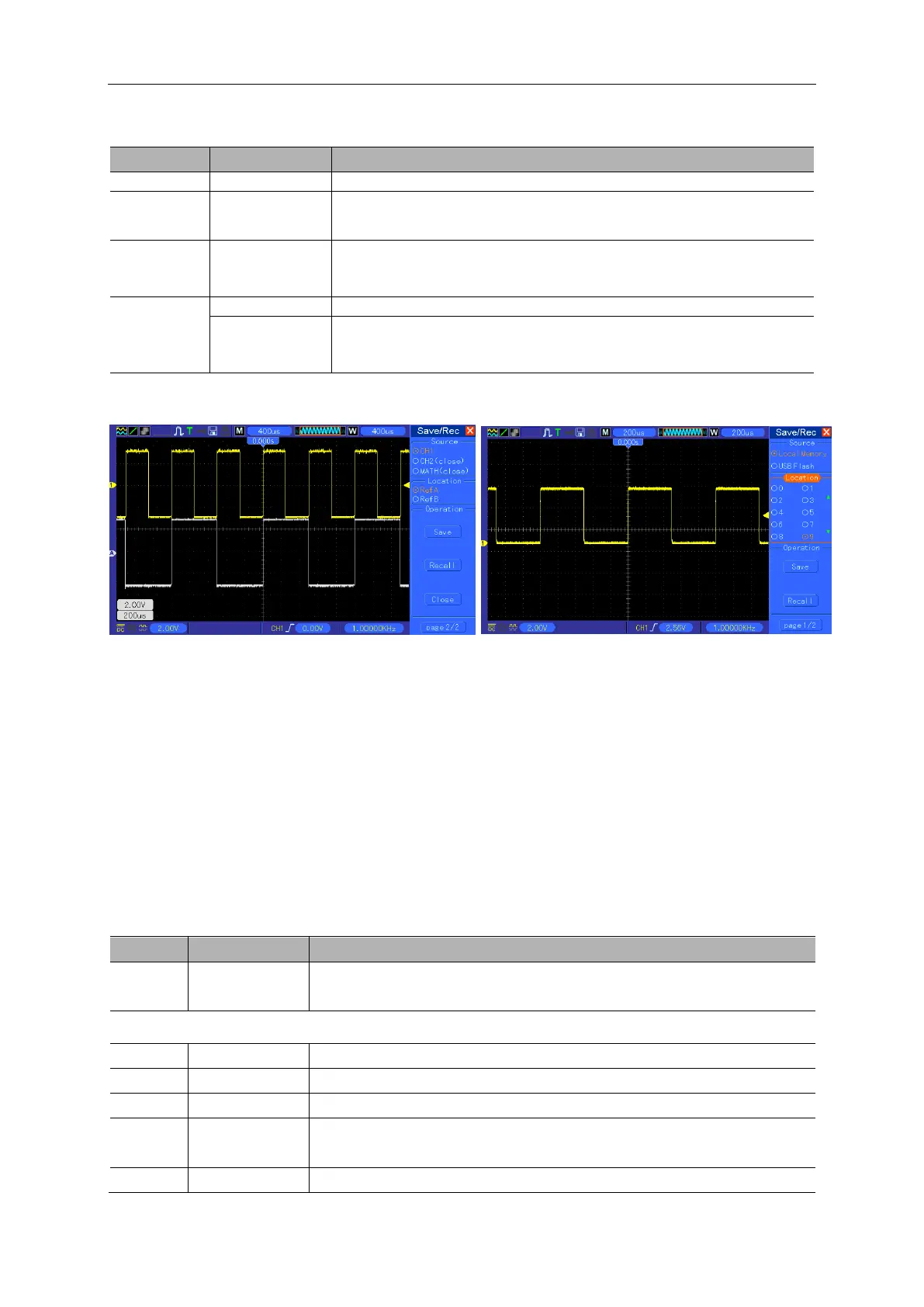

Basic Operation
DSO5000P Series Digital Storage Oscilloscope User Manual 33
Press ‘Next Page’ to recall the following menu.
Store the current setups to the USB disk or the memory of the
oscilloscope.
Specify the memory location in which to store the current
waveform settings or from which to recall the waveform settings.
Use the V0 knob to select.
Complete the saving operation.
Recall the oscilloscope settings stored in the location selected in
the Setup field. Push the Default Setup button to initialize the
oscilloscope to a known setup.
See below for waveform menus.
Note: The oscilloscope will save the current settings if you wait 5 seconds after the last
modification, and it will recall these settings the next time you power on the oscilloscope.
5.5.2 Measure
Push the MEASURE button to perform auto measurements. There are 32 types of measurements
and up to 8 can be displayed at a time.
Turn the V0 knob to select an unspecified option. Press V0 or F6 when the red arrow icon stops on
it. Then the following menu appears.
Select the measure source.
Calculate the waveform frequency by measuring the first cycle.
Calculate the time of the first cycle.
Calculate the arithmetic mean voltage over the entire waveform.
Calculate the absolute difference between the greatest and the
smallest peaks of the entire waveform.
Calculate the Root Mean Square voltage over the entire waveform.
The white waveforms on the menu is
the recalled RefA waveform
At most 9 groups of
setups can be stored
To Next Page
