Waveform Generation Tutorial
HDG2000 Series Arbitrary Waveform Generator 60
2)Sync Signal

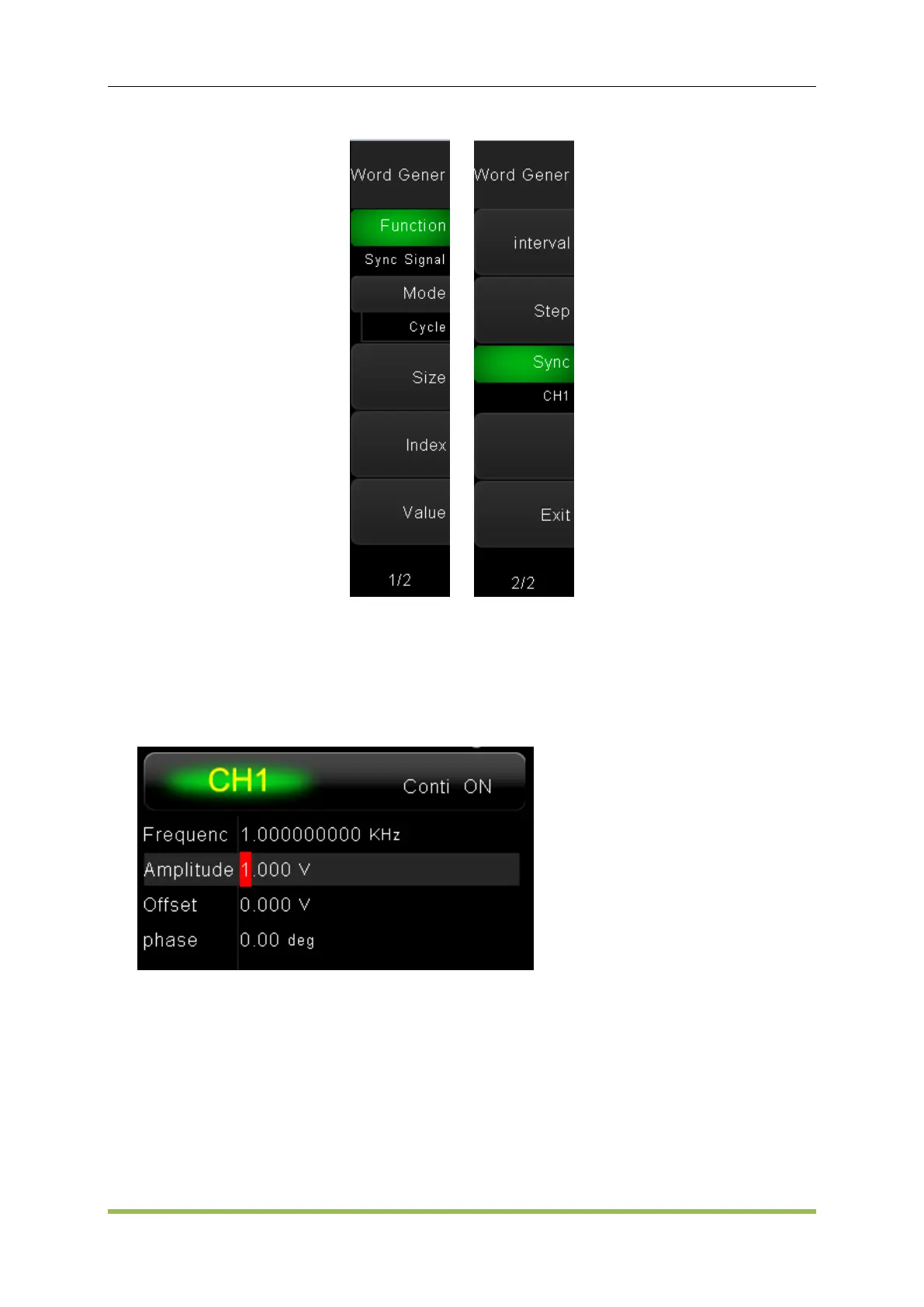

1. Select function to sync singal.
2. Select the sync signal source to CH1 (or CH2).
3. Open CH1 waveform output, Select the Signal Type to "Sine ", frequency to “1KHz”, Amplitude
to 1V，Y Offset to 0V.
4. Connect Digital Generator Terminals to LOGIC Analyzer Terminals to measure. The output
signal of D0-D15 terminals is a square waveform (3.3V, peak- to- peak).
