Hantek HDG2102B User Manual

Basic Operation
HDG2000 Series Arbitrary Waveform Generator 14
Specifies unit and parameter preferences
Frequency or Period
Voltage as Amplitude/Offset or High/Low
Voltage units
Pulse Width or Duty Cycle
Frequency sweep as Center/Span or Start/Stop

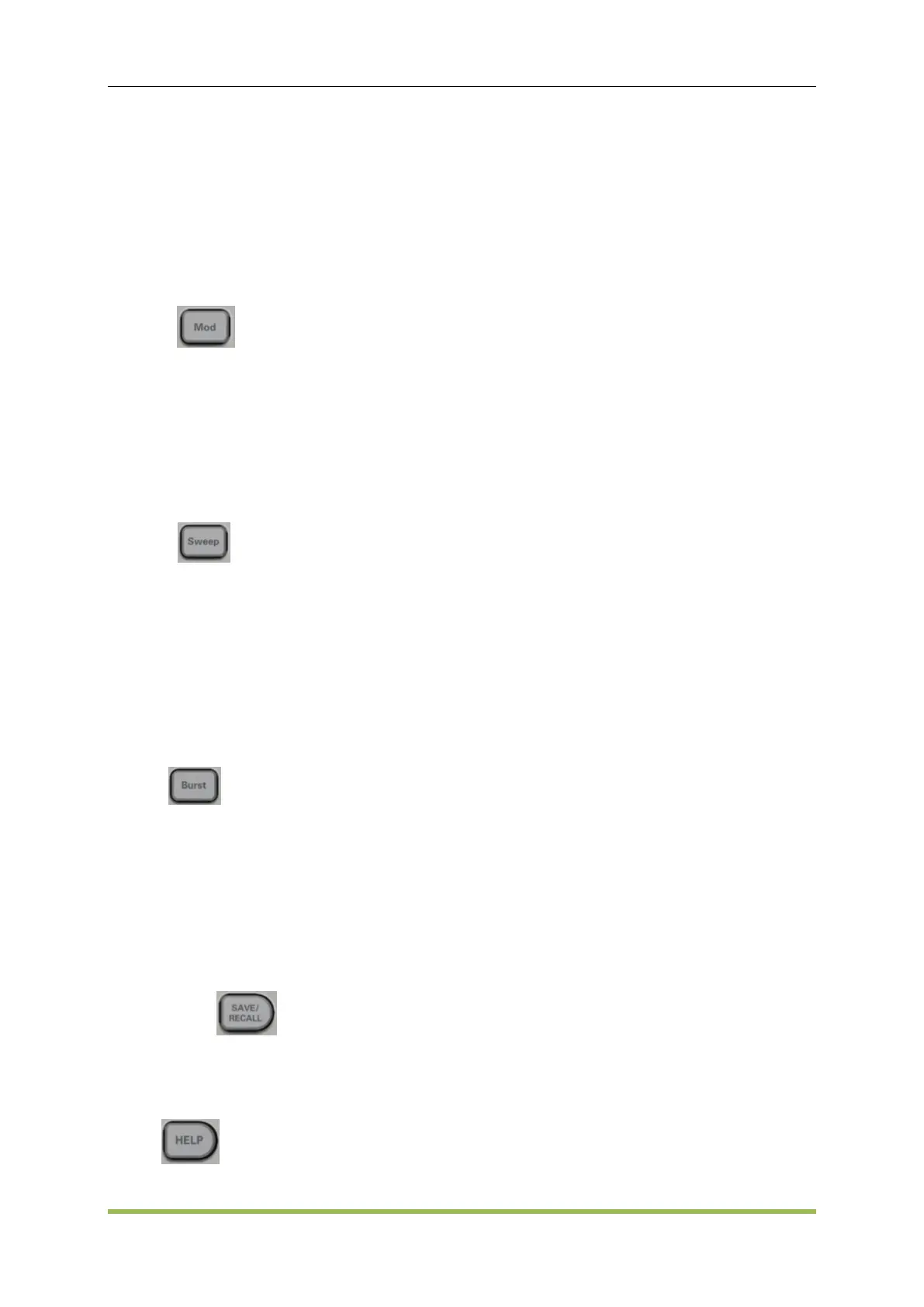

Mode：
Configures modulation parameters
 Modulation on or off
 Modulation type: AM, FM, PM, 2ASK, 2FSK, 2PSK, BPSK and PWM
 Modulation source
 Modulation parameters
Sweep：
Configures frequency sweep parameters
 Sweep on or off
 Linear
 Sweep time
 Start/stop frequencies or center/span frequencies
 Hold and return times
Burst：
Configures burst parameters
 Burst on or off
 Burst mode: triggered or externally-gated
 Cycles per burst
 Burst period
Save/Recall：
Stores and recalls instrument states
Help：
