Features and Function
HDG2000 Series Arbitrary Waveform Generator 37
Modulating Waveform Shape
The instrument accepts an internal, external or external trig modulation source.
The modulating waveform shape (internal source) may be:
Sine wave
Square with 50% duty cycle
UpRamp with 100% symmetry
Triangle with 50% symmetry
DnRamp with 0% symmetry
Noise - white gaussian noise
Arb - Arbitrary waveform
SCPI:
SOURce<n>:MOD:PM:INTernal:FUNCtion SINusoid|SQUare|RAMP
Modulating Waveform Frequency
The instrument accepts an internal, external or external trig modulation source.
Modulating frequency (internal source): from 2 MHz to 500 kHz, default 100 Hz.

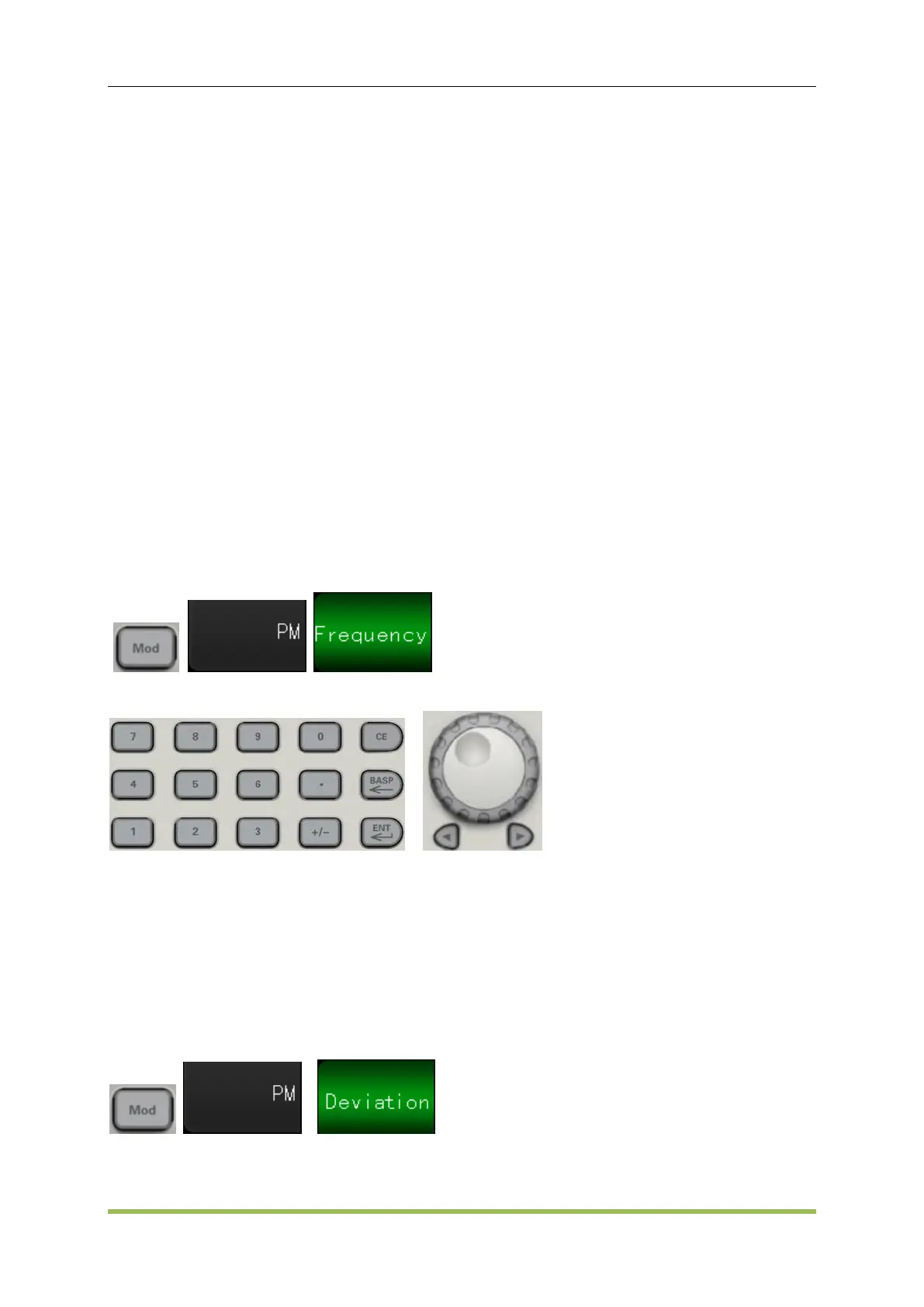

Front Panel:
Then enter the AM or FM frequency with the knob and keypad:
SCPI:
SOURce<n>:MOD:PM:INTernal:FREQuency <frequency>|MINimum|MAXimum
Phase Deviation
The phase deviation setting represents the peak variation in phase of the modulated waveform
from the carrier waveform. The phase deviation can be set from 0 to 360 degrees (default 180).
Front Panel:
Then set the phase deviation:
