Hantek HDG2102B User Manual

Features and Function
HDG2000 Series Arbitrary Waveform Generator 41
 SCPI:
SOURce<n>:MOD:PWM:INTernal:FUNCtion SINusoid|SQUare|RAMP
Modulating Waveform Frequency
The instrument accepts an internal, external or external trig modulation source.
Modulating frequency (internal source): 2MHz to 500KHz. The default is 100 Hz.

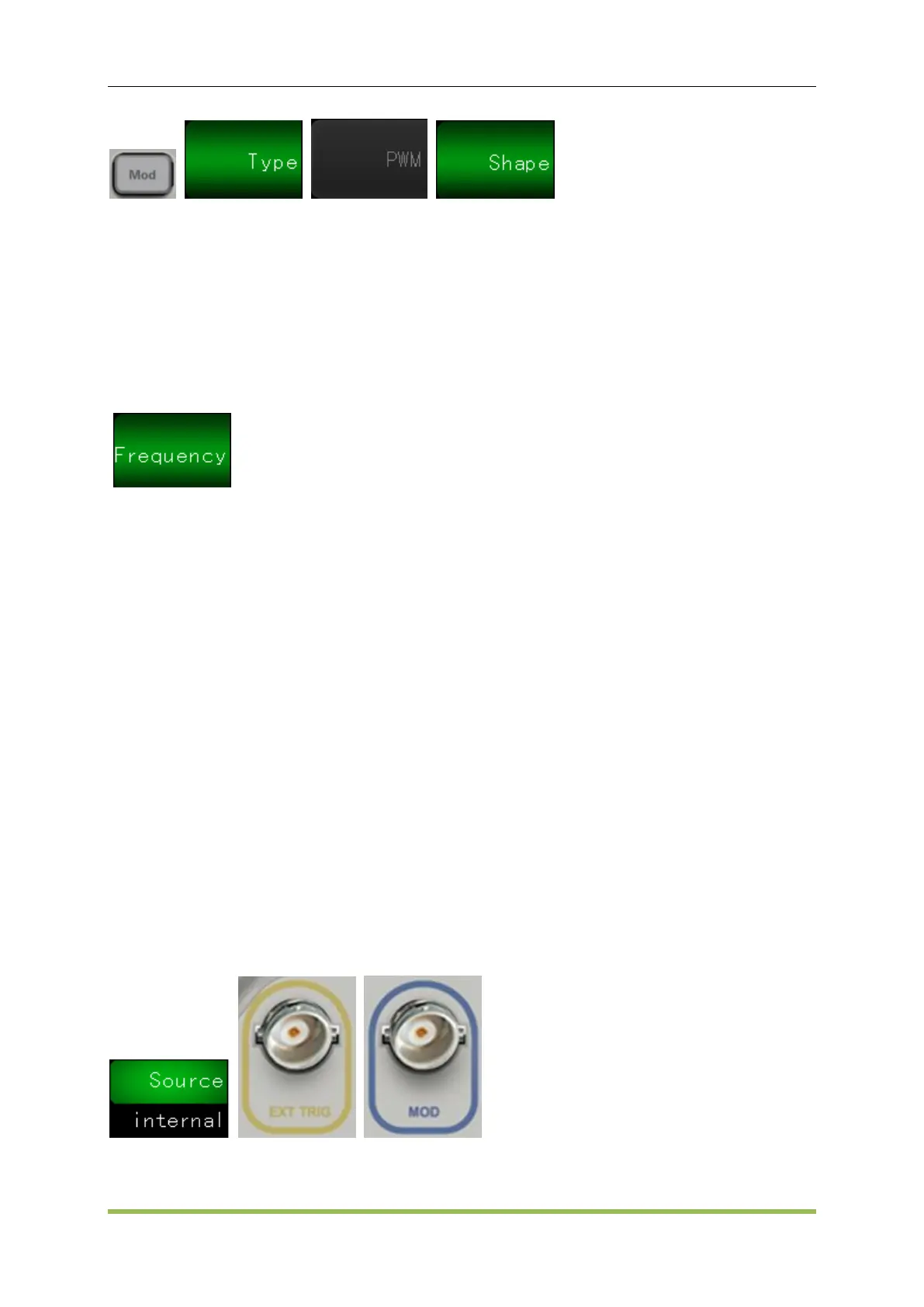

 Front Panel:
 SCPI:
SOURce<n>:MOD:PWM:INTernal:FREQuency <frequency>|MINimum|MAXimum
PWM Deviation
The PWM deviation setting is the peak variation in width of the modulated pulse waveform.
SCPI：
SOURce<n>:MOD:PWM:DEViation <deviation>|MINimum|MAXimum
Modulating Source
The instrument accepts an internal, external or external trig modulation source.
 Modulating source: Internal (default), external or external trig. The External modulation source
may be up to 100 kHz.
 If you select the External modulating source, the deviation is controlled by the ±5 V signal level
on the front-panel MOD connector. For example, if you have set the deviation to 10%, then a +5
V signal corresponds to a 10% change in width. Lower signal levels produce less deviation.
 If you select the External Trig modulating source, the deviation is controlled by the +5 V signal
level on the front-panel TRIG connector.
 Front Panel:
 SCPI：
SOURce<n>:MOD:PWM:SOURce INTernal|EXTernal
