Harman® •  Owners anualR2 • 200 - • 0812 3 -9 0 -0 0 6 8 4 c
DANGER: Risque d’électrocution. Débrancher
l’appareil avant toute intervention.
Ne remplacer la vitre qu’avec une vitre céramique 5 mm
de même qualité disponible auprès de votre revendeur.
Pour une information plus complète, se reporter à la
notice d’utilisation
Tenir la porte frontale et le couvercle de trémie hermétiquement clos durant
le fonctionnement de l’appareil.
Puissance calorifi que émise: Nominale: 10.5 KW Réduite: 1.8 KW
Concentration CO (à 13 % O2)
à puissance nominale: < 0.02 % à puissance réduite: < 0.04 %
Rendement
: à puissance nominale: 84 % à puissance réduite: 73%
DISTANCES DE SECURITE PAR RAPPORT AUX MATERIAUX COMBUSTIBLES
Entre Mur Arrière et appareil 8 cm
Entre Paroi latérale et appareil 31 cm
Raccord à la Cheminée 13 cm
Installation en angle
Entre murs et apparell 16 cm
Installation en alcôve
Hauter minimale de l’alcôve 150 cm
Parois latérales de l’alcôve 31 cm
Profondeur maximale de l’alcôve 91 cm
PROTECTION DU PLANCHER
Côtés 15 cm
Arrière 0 cm
Avant 15 cm
*mesurer à partir de la surface de la porte en verre.
Utiliser une protection de sol non combustible sous l’appareil qui s’étend sur
les côtés. l’avant et l’arrière du poêle (voir schéma).
ll est recommandé que la protection s’étende jusque sous le conduit en cas
d’installation d’un conduit horizontal ou sous le té en cas de conduit vertical.
Model: XXV
Residential Space Heating Appliance Fire by Wood Pellets
This pellet burning appliance has been tested and listed for use in Manufactured
Homes in accordance with OAR 814-23-900 through 814-23-909
OMNI-Test Laboratories, Inc.
Report #/Rapport #135-S-14-2, 135-S-14b-6, 135-S-14c-6.2
B
A
A
C
“PREVENT HOUSE FIRES” Install and use only in accordance with the manufacturer’s installation and operation
instructions. Contact local building or fi re offi cials about restrictions and inspection in your area.
WARNING: FOR MANUFACTURED HOMES: Do not install appliance in a sleeping room. An outside
combustion air inlet must be provided. The structural integrity of the manufactured home fl oor, ceiling and walls
must be maintained.
Refer to manufacture’s instructions and local codes for precautions required for passing chimney through
a combustible wall or ceiling. Inspect and clean exhaust venting system frequently in accordance with
manufacturer’s instructions.
Use a 3” or 4” diameter type “L” or “PL” venting system.
Do not connect this unit to a chimney fl ue servicing another appliance.
FOR USE WITH PELLETIZED WOOD FUEL OR CORN/PELLET MIXTURE ONLY.
CONSULT MANUFACTURER’S INSTRUCTIONS.
Input Rating Max: 5.7 lb. fuel/hr
Electrical Rating: 240 VAC, 50 Hz, Start 2.6 AMPS, run 2.0 AMPS
U.S. Electrical Rating: 115 VAC, 60Hz, Start 4.2 AMPS, Run 3.6 AMPS
Emissions of CO in combustions:
Nominal Heat Output: .02%, Reduced Heat Output:.04%
Flue Gas Temperature: 224 C
Thermal Output: 10.5kW
Energy Effi ciency: Normal: 84%, Reduced: 73%
Fuel Type: Wood Pellets, 5mm diameter, 20mm Lomg
Route power cord away from unit.
DANGER: Risk of electrical shock. Disconnect power supply before servicing.
Replace glass only with 5mm ceramic available from your dealer.
For further instruction refer to owner’s manual.
Keep viewing and ash removal doors tightly closed during operation.
CLEARANCES TO COMBUSTIBLES
Back Wall to Appliance 3”
Side Wall to Appliance 12”
Corner Installation
Walls to Appliance 6.25”
FLOOR PROTECTION
USA CANADA
Sides (A)* 6” 200MM
Back (B) 0” 200MM
Front (C)* 6” 450MM
*Measured from window opening in the US ONLY.
Use a non-combustible fl oor protector extending under unit and to the sides, front and back of unit as shown
in Floor Protector Diagram. Measure front distance from the surface of the glass door.
Recommended: Non-combustible fl oor protection extending beneath the fl uepipe when installed with
horizontal venting or under the top vent adapter with vertical installation.
DO NOT REMOVE THIS LABEL
MADE IN THE USA
U.S. ENVIROMENTAL PROTECTION AGENCY
This model is exempt from EPA certifi cation under 40 CFR 60.531 by defi nition [Wood Heater (A) “Ait-to-Fuel Ratio”].
2 0 1 3 2 0 1 4 2 0 1 5 J AN F EB MAR APR MAY J UN J UL AUG SEP OCT NOV DEC
Date of Manufacture/Date de Fabrication:
Hearth and Home Technologies - 352 Mountain House Road -Halifax, PA 17032
BARCODE LABEL
AGENCE AMÉRICAINE POUR LA PROTECTION DE L’ENVIRONMENT
Ce modéle est dispensé par EPA certifi cation d’aprè 40 CFR 60.531 par dèfi nition [Appareil à bois(A) Ratio air/combustion]
Test to/testé à ASTM E 1509-04, ULC/ORD-C1482-M1990, ULC-S627-00
Tested by Emitech, Apave & BFP Electronique
EN60335-1, EN55014-1, EN 61000-3-2, EN 14785:2005
Test date: February 2004
Room Heater Pellet fuel Burning type (UM) 84-HUD
0 0 8
Serial No.
N
o
de série:
Test réalisés par OMNI-Test Laboratories, Inc.
Essais Selon les normes 1509-04 de l’ASTM, C1482-M91ULC
Appareil de chauffage à granulés (UM) 84- HUD
NORMES EUROPÉENNES:
NF EN 14785 CETIAT – Déc. 2006
AEMC MESURES EN50366 – Déc. 2006
EMITECH, APAVE & BFP Electronique – Fév. 2004
EN55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
Respecter scrupuleusement les instructions du constructeur pour l’installation
et les consignes de fonctionnement. Respecter les règles de sécurité en
vigueur dans votre région.
AVERTISSEMENT POUR MOBILE HOMES: Ne pas installer dans une
chambre. ll est inpératif de prévoir une prise d’air extérieur. L’intégrité
structurale du plancher, du plafond et des murs doit être strictment préservée.
Se reporter aux instructions du fabricant et aux réglementations spécifi ques
locales concernant les précautions requises lors de la traversée d’un mur ou
d’un plafond. Contrôler et nettoyer fréquemment toul le système d’évacuation
des fumées conformément aux recommandations du constructeur.
Utiliser des conduits « spécial granuléls » de diamètre 80 mm ou 100 mm.
Ne pas raccorder ce poêle à un conduit de cheminée déjà utilisé.
FONCTIONNE EXCLUSIVEMENT AVEC DES GRANULES DE BOIS.
SE CONFORMER AUX INSTRUCTIONS D’UTILISATION
Consommation maximale: 2.9 kg/h
Caractéristiques électriques: 240 VC, 50 Hz, Intensité au démarrage 2.6 A,
Intensité fonctionnement normal 2.0 A
Tenir le cordon d’alimentation à l’écart du poéle.
Modèle: XXV
Appareil de chauffage à granulés de bois
Harman XXV Pellet Stove
R ev D
P.N. 3 -9 0 -0 0 0 2 5
Ne pas enlever cette étiquette
Fabriqué aux USA
5.5"
10.5"

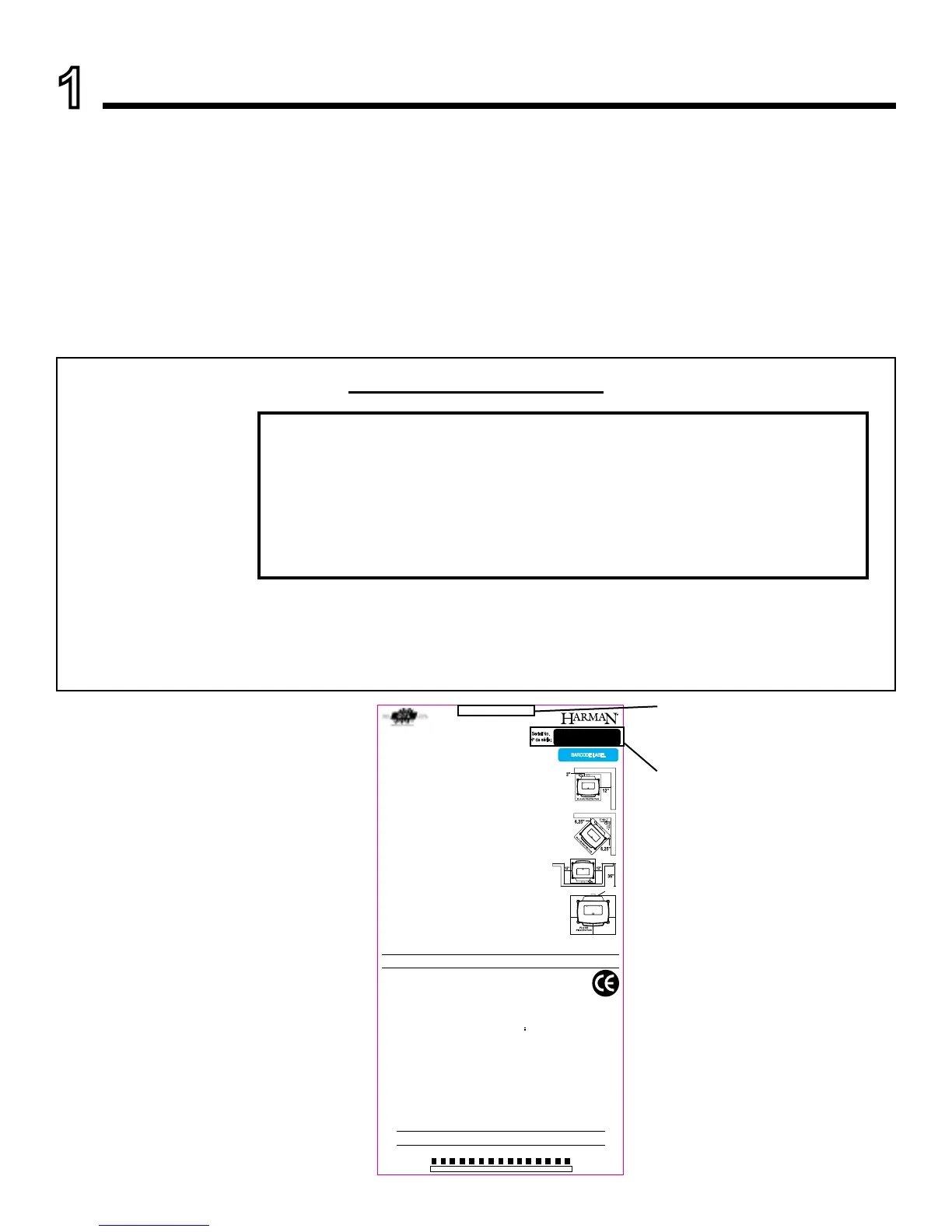

Listing Label Information/ Location
A. Congratulations
Congratulations on selecting a Harman® reestanding Pellet
Stove. The Harman®  pellet stove you have selected
is designed to provide the utmost in safety, reliability, and
efciency.
As the owner of a new pellet stove, youll want to read and
carefully follow all of the instructions contained in this owners
manual. Pay special attention to all cautions and warnings.
This owners manual should be retained for future reference.
We suggest that you keep it with your other important
documents and product manuals.
Your new Harman®  Pellet Stove will give you years
of durable use and trouble-free enoyment. Welcome to the
Harman® family
The model information regarding
your specic stove can be found
on the rating plate usually located
in the control area of the stove.
Read this manual before operating this appliance.
Please retain this Owners anual for future reference.
Read the Installation anual before making any installation or nishing changes.
1
W elcome
Brand:  odel Name: 
Serial Number:  ate Installed: 
Appliance Information:
Local Dealer Information
DEALER: Fill in
your name, address,
phone and email
information here and
appliance information
below.
ealer Name: 
Address: 

Phone: 
Email: 
Serial Number
odel Name

Harman XXV Specifications
