General:
– When installing the fuel delivery pump,
make sure that the delivery and suction
lines are connected correctly.
Dismantling:
– Disconnect fuel feed line with clamp - 3 -.
– Separate the fuel lines from the delivery
pump.
– Unscrew and remove nuts with spring
washers, and take off fuel delivery
pump with O-ring.

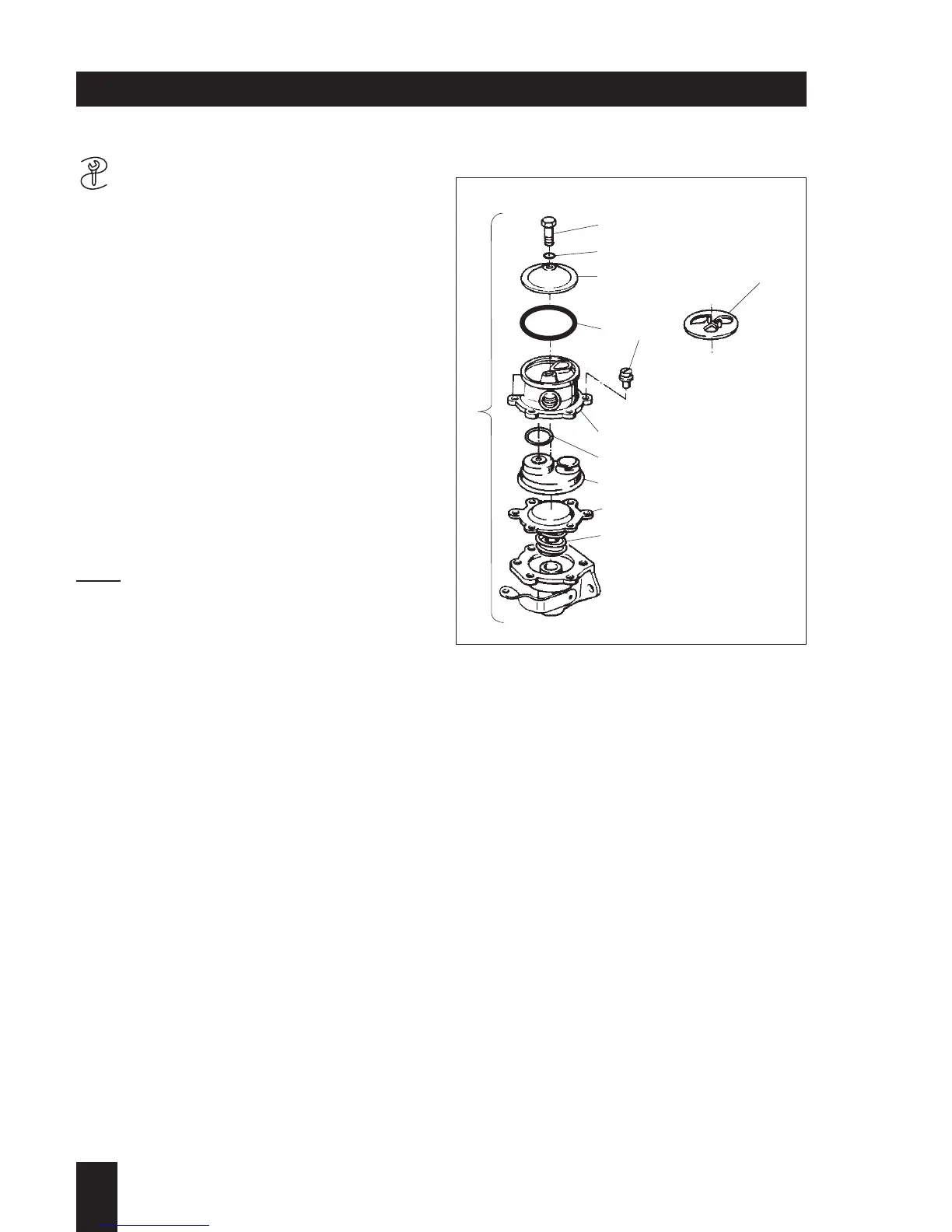

– Dismantle fuel delivery pump 1 in the
numerical order of parts illustrated
(Fig. 182).
Note:
Since September 1992 fuel strainer 12
has been replaced by O-ring 5.
Because of this, an input-side fuel filter
must always be used.
This input-side filter is supplied as a spare
part with the fuel delivery pump and also
with the repair kit for the fuel delivery
pump.
Assembling:
Assemble by following the instructions in
the reverse order as appropriate.
2
L / M . . 09.96
182
A 01.00 Fuel
A 01.40 Fuel delivery pump
2
3
4
56
7
8
9
10
11
1
12
