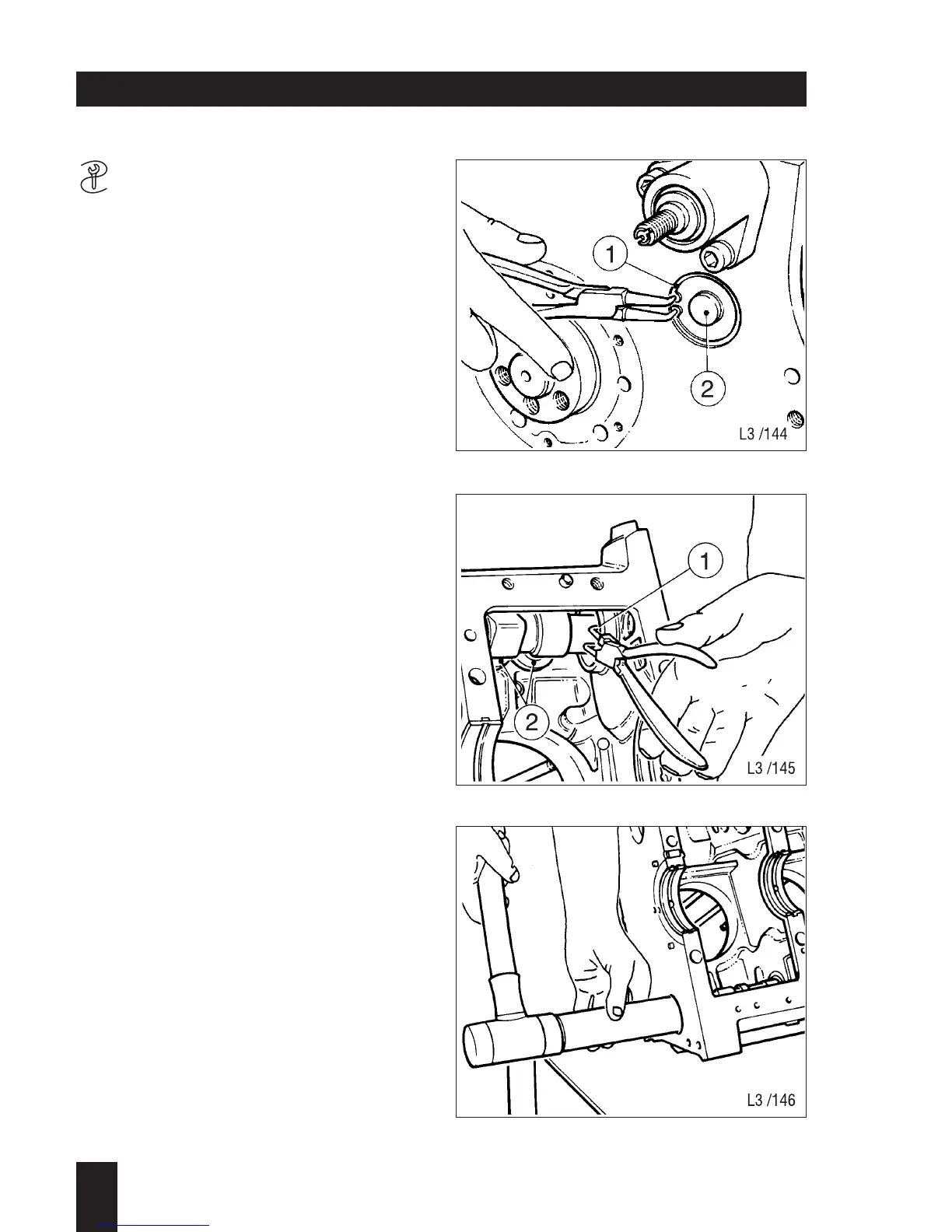

Preparations:
– Take off the upper part of the crankca-
se; see M 02.00.
Dismantling:
– Remove the circlip (37/1) at the cover,
pull the cover (37/2) out with water-
pump pliers and remove the shim
washers.
– Stand up the upper part of the crankca-
se, take the circlip (38/1) out of the sa-
fety groove and press the valve tappet
(38/2) off the camshaft.
– Using a ∅ 47 mm driving-out sleeve,
drive the camshaft out towards the
timing end (see Fig. 39) and pull out
the valve tappets.
3
L / M . . 09.96
37
38
39
