Preparations:
– On C/K, take off hood at enclosure and
side panel; see M 35.00.
– On S/Z and M.., take off side panel and
cooling air duct for lubricating oil cooler.
Detaching and dismantling:

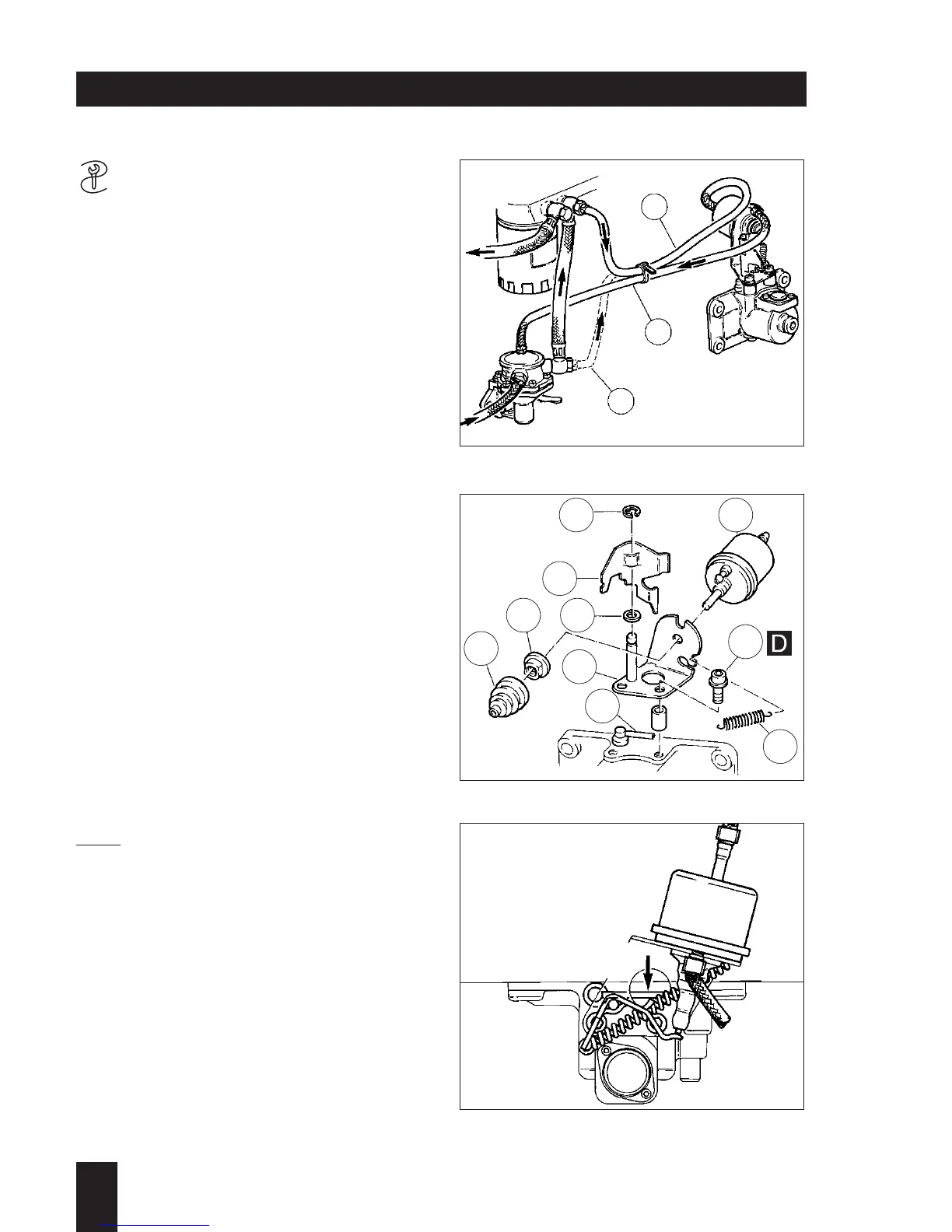

– Pull off fuel lines (113/1 and 2). Take out
start release device retaining screws
and remove the device.
– Take off spring (114/9), flexible gaiter
(8) and nut (6); take off cylinder (114/2)
and remove lock washer (114/5), lever
(4) and washer (7)..
Checking parts:
– Place the cylinder (114/2) in a tank con-
taining diesel oil. Apply an air pressure
of max. 1.5 bar to the hose line (114/1).
If air bubbles emerge from the cylinder,
it must be renewed.
– Check flexible gaiter for damage and
renew if necessary.
Re-assembling the start release device:
Follow the dismantling instructions in
reverse order as appropriate; refer to Fig.
114.
Note:
When attaching to the engine monitoring
block, make sure that locking collet
(114/13) is pressed into the start position
by lever (114/4), or else the start release
action will not take place; see also Fig.
116/1.
Before tightening machine screws
(114/14), move bracket (114/3) in the
opposite direction (see Fig. 116/2), to
ensure that locking collet (114/13) can
move as far as possible back to the „Stop“
position.
2
L / M . . 09.96
113
114
115
A 04.00 Start mechanical
A 04.80 Start release device (L /M 31/40/41)
1
2
1
5
4
7
6
8
3
13
2
14
9
Stop
