Hatz 2-4L41C User Manual

2-4L41C, 2-4M41(Z), 4L42C, 4M42 Engine design
HATZ
27Manual
5 Engine design

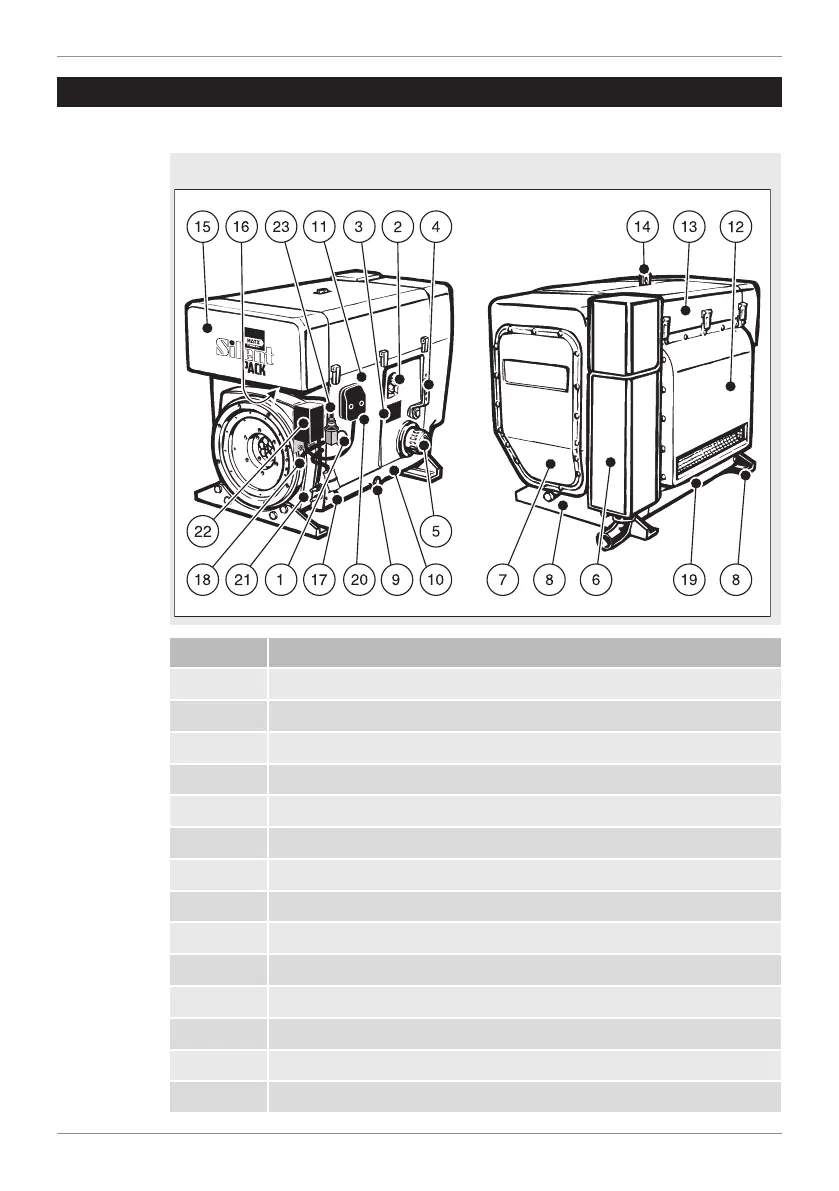

Engine 2-4L41C
Encapsulated model "Silent Pack"
Pos. Designation
1 Access cap for fuel feed pump
2 Oil filling opening and dipstick
3 Type plate
4 Speed control lever
5 Oil filter
6 Exhaust silencer (encapsulated)
7 Cover for air guide housing (access to cooling fan belt)
8 Engine brackets
9 Oil drain screw
10 Cover plate on operating side
11 Side panel
12 Air outlet duct for cooling air
13 Capsule hood
14 Retractable lifting eye, max. load 5000 N
