27

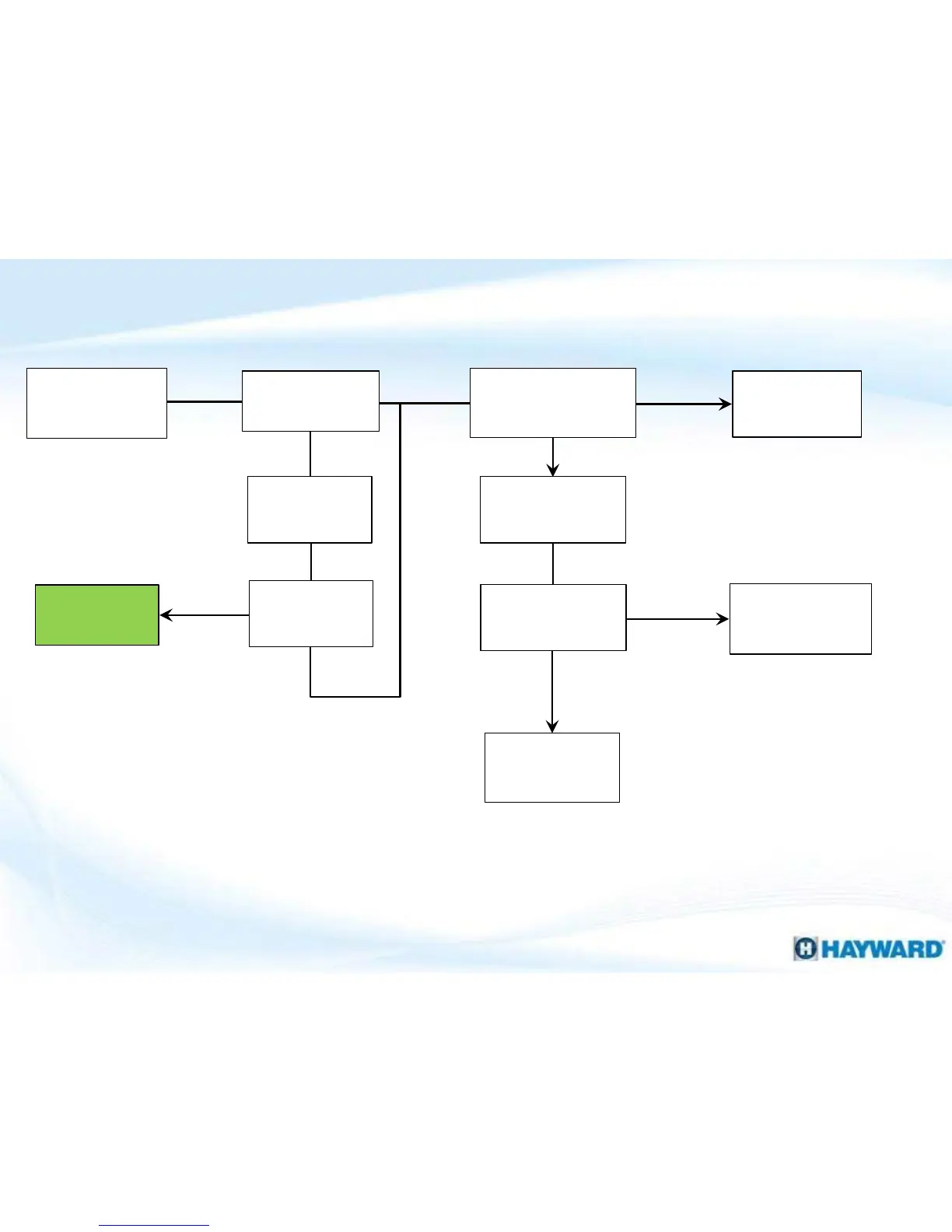

2. Open FC1 &/or F2 Fuse
Open FC1
&/or F2 Fuse
YES
Correct voltage
selector plug?
NO
Install correct
plug and
replace fuse
Did this
correct the
problem?
YES
NO
Is transformer
wiring damaged,
pinched, or worn?
Problem
solved
Test
transformer
resistance
Correct/repair
transformer
wiring
YES
NO
Is resistance
correct?
NO
YES
Replace
transformer:
IDXL2TRF1930
Contact
Support
(908) 355-7995
