A
Remote Control: 24VAC (E1)
B
Flame Sensor (E4)
C
Temperature Sensor (E2)
D
Display Output: 24VAC (E7)
E
3A Fuse (F1)
F
Low Voltage R & C: 24VAC (E12,
E13)
G
Gas Valve & Safety Switches:
24VAC (E11)
H
High Voltage: 120VAC (E10)
I
Blower/Inducer (E6)
J
Ignitor (E3)
C
H
G
F
D
E
J
I
B
A

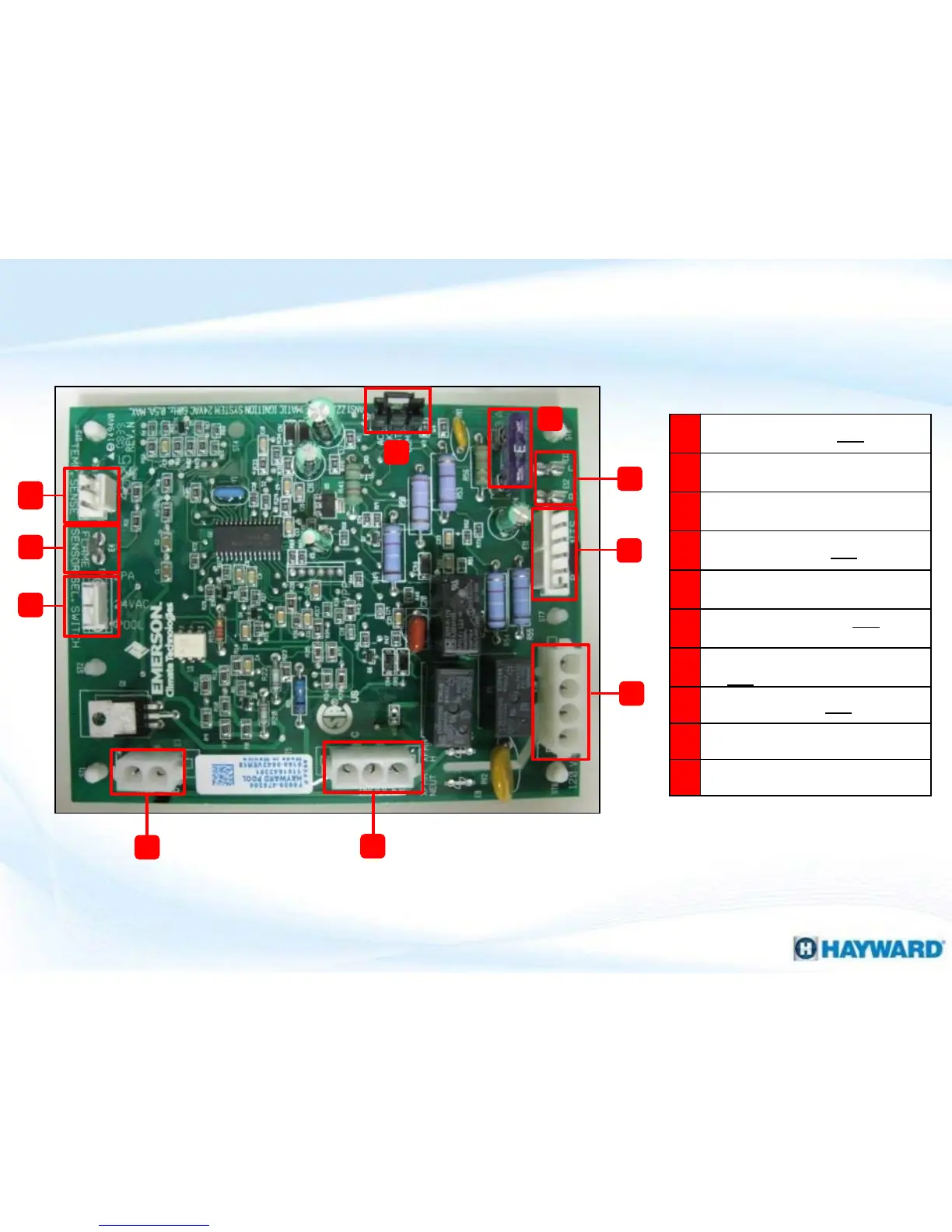

Integrated Control Board Layout (ICB)
