General| Control System | CNC |
|---|---|
| Axes | Up to 3 |
| Input Method | Keyboard |
| Data Interface | RS-232 |
| Power Supply | 24 V DC |
| Display Size | 9-inch |
| Programming | Conversational Programming |
| Operating Temperature | 0 to 45°C |
| Humidity | non-condensing |
| Display | CRT |
Analyzes system behavior for fault localization and rectification in TNC installations.
Provides flowcharts for diagnosing faults in the complete installation (Control/Measuring System/Machine-tool).
Explains the system for detecting operator errors and diagnosing technical faults.
Lists and explains various error messages displayed by the TNC 151/155.
Details fault descriptions displayed on the VDU, including fault causes and locations.
Details the procedure for testing display units and associated circuitry.
Outlines the procedure and test data for testing the Power Supply Unit.

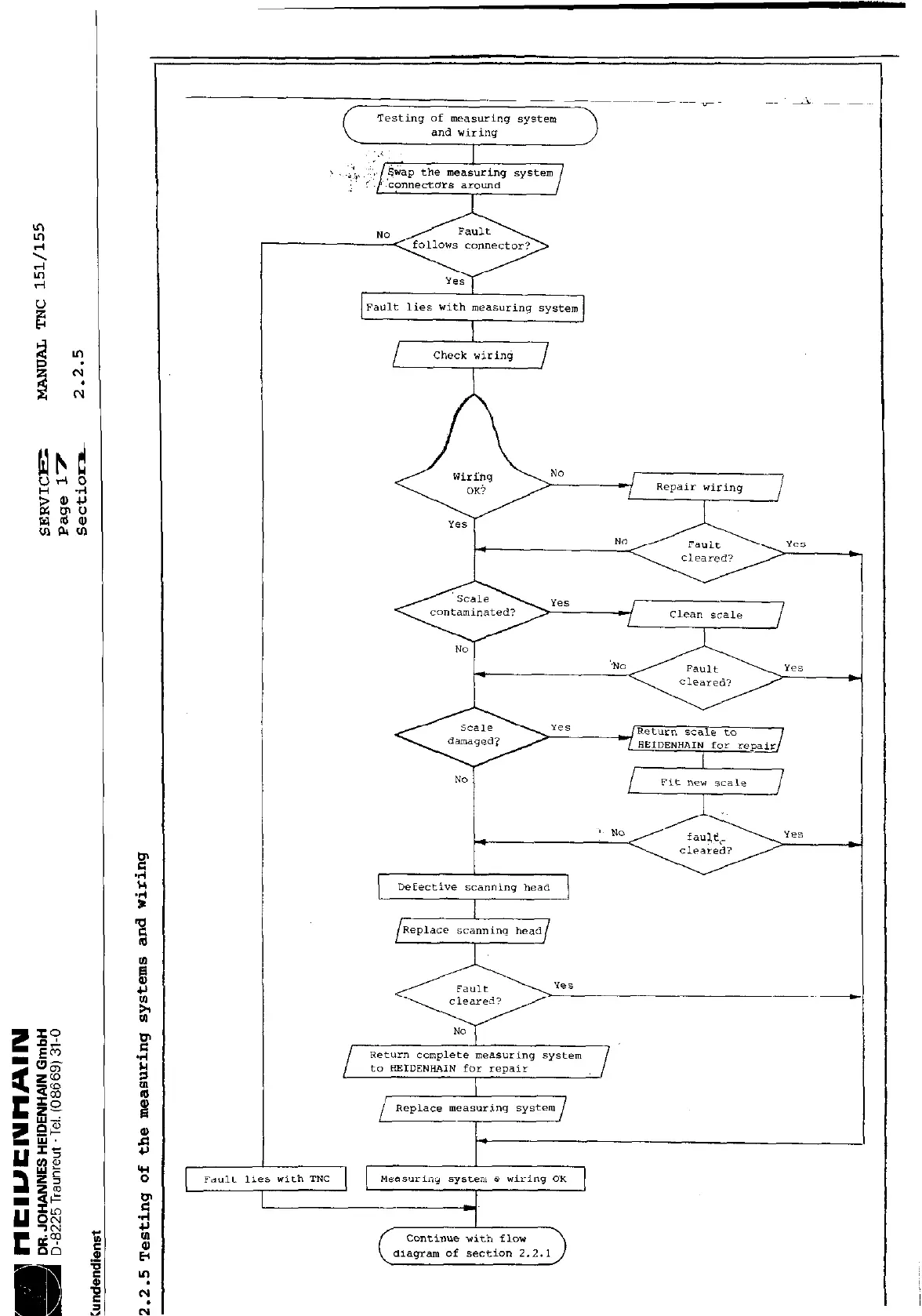

Describes methods for testing measuring systems and wiring.
Details the Burn-In test program for dynamically testing Control hardware.
Provides procedures for exchanging control units for different TNC versions.
Describes the arrangement and exchange of plug-in boards.
Details procedures for exchanging operating software stored in EPROMs.
Information on obtaining spare parts and service units.
Lists available configurations and part numbers for TNC 151/155.
Explains functional units, relationships, and interconnections in block diagrams.
Lists block diagram drawing numbers and their corresponding pages.
Lists wiring diagram drawing numbers and their corresponding pages.
Details machine parameters, their functions, and input values.
