HELLER HPAC12 User Manual

Installation

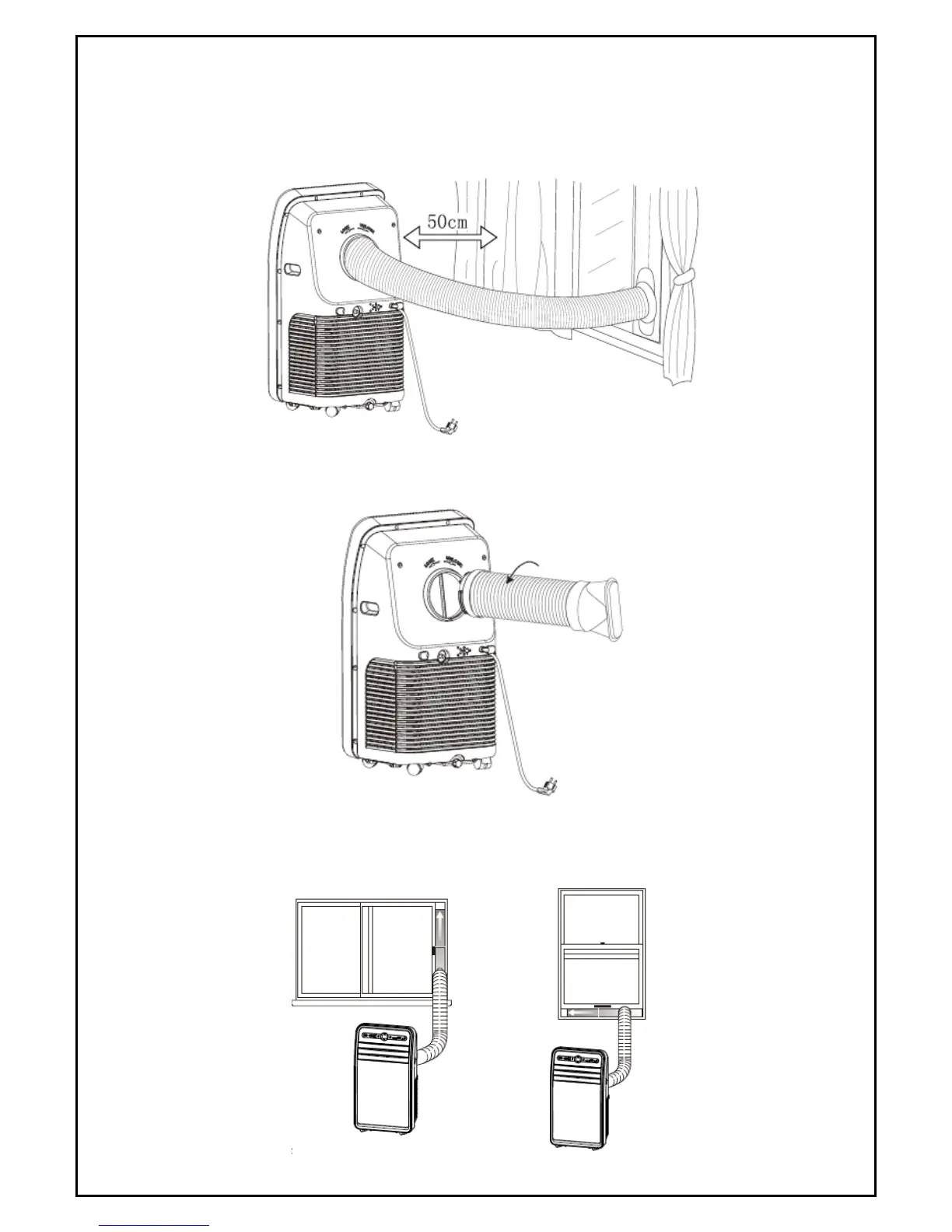

Placement
Place it on an even dry surface, and keep it at least 50cm away from any surroundings.
Screw the exhaust pipe assembly into the air outlet in the back panel (anticlockwise).
Insert the air exhaust hose into the window slider kit, adjust the opening width of the window so that the
window slider kit width matches properly; the length of the kit is adjustable.

HELLER HPAC12 Specifications

Operating Pressure

permissible excessive operating pressure (suction)	1.0 MPa
permissible excessive operating pressure (discharge)	3.5 MPa
maximum allowable pressure (low pressure side)	1.7 MPa
maximum allowable pressure (high pressure side)	5.5 MPa

Performance

cooling capacity	3.5 kW
air flow	420 m3/h
noise	55 dB(A)
rated input (cooling)	1450 W

Refrigerant

refrigerant type	R410a
refrigerant charge	565 g

Power Supply

power supply voltage	220-240 V
power supply frequency	50 Hz
fuse voltage	250 VAC

Weight and Dimensions

net weight	28.5 kg
gross weight	33 kg
dimensions (WxHxD)	443x830x340 mm
