Hikmicro M10 User Manual

Handheld Thermography Camera User Manual
11

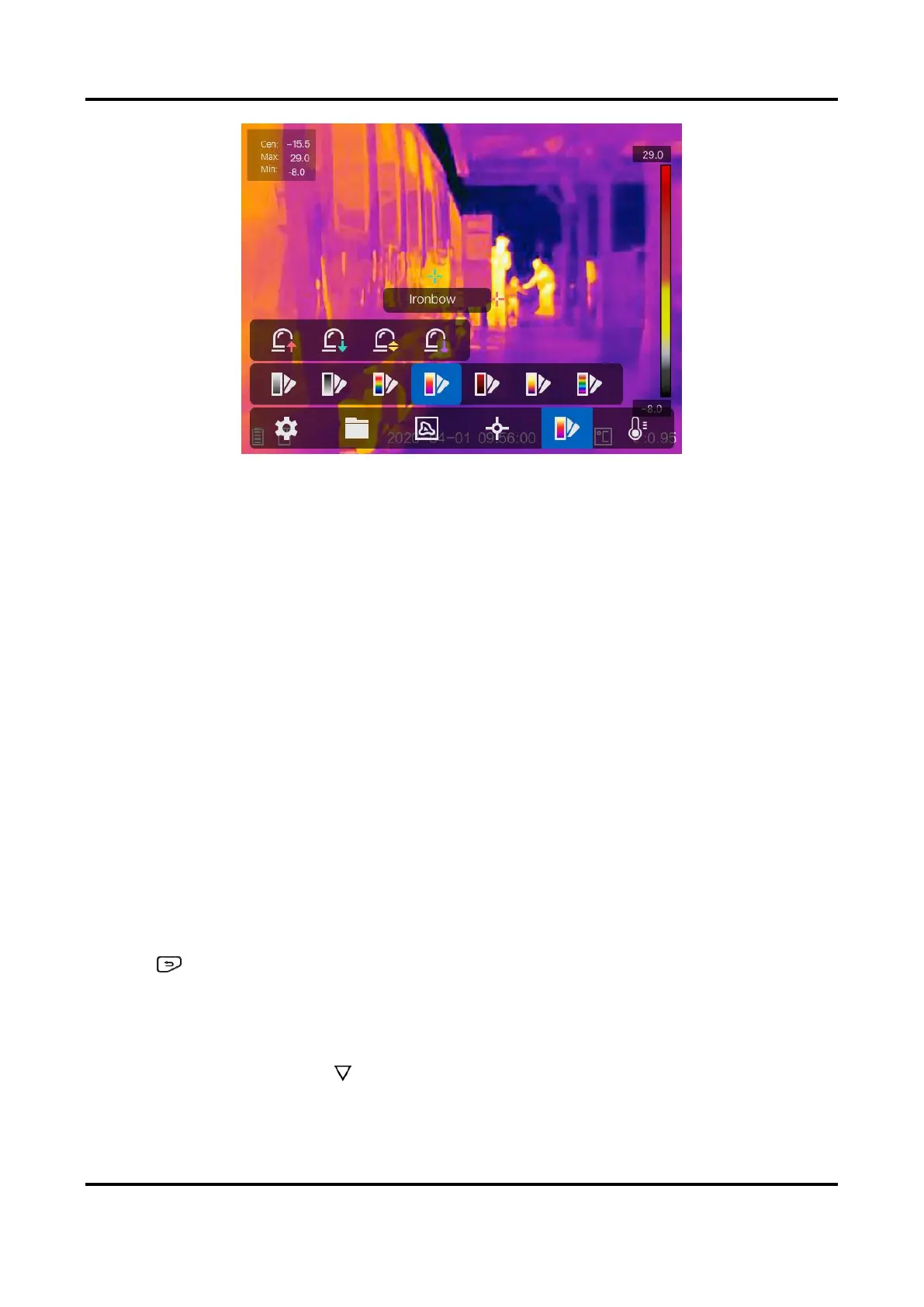

Figure 3-2 Palette
2. Tap on the icons to select a palette type.
White Hot
The hot part is light-colored in view.
Black Hot
The hot part is black-colored in view.
Rainbow
The target displays multiple colors, it is suitable for scene without obvious temperature
difference.
Ironbow
The target is colored as heated iron.
Red Hot
The hot part is red-colored in view.
Fusion
The hot part is yellow-colored and the cold part is purple-colored in view.
Rain
The hot part in the image are colored, and the else is blue.
3. Press to exit the setting interface.
3.5 Adjust Digital Zoom
In the live view interface, press to adjust the digital zoom to 1×, 2×, 4×, or 8×. Then you can
view the target or scene in larger size.

Hikmicro M10 Specifications

General

USB port	Yes
USB connector type	USB Type-C
Micro HDMI ports quantity	1
Sensor type	-
Fixed focal length	25 mm
Sensor resolution (thermal module)	640 x 480 pixels
Input voltage	100 - 240 V
Charging source	USB
Cables included	HDMI, USB
Number of batteries included	2 pc(s)
Battery capacity	- mAh
Battery life (max)	4 h
Battery recharge time	2.5 h
Safety	IEC 61010-1
Display type	LCD
Certification	Australian RCM
Product color	Black
Tripod thread	1/4-20 \
Display diagonal	5 \
Display resolution	1280 x 720 pixels
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
International Protection (IP) code	IP54
Accuracy	2 °C
Laser type	Class II
Laser wave power	1 mW
Laser wavelength	635 nm
Total megapixels	8 MP
Camera pixel size	17 µm
Measurement modes	Center spot, Cold spot, Hot spot, Off
Standard palettes	Black Hot, Fusion, Rain, Rainbow, Red Hot, White Hot
Maximum resolution	3264 x 2448 pixels
Infrared spectral band	8 - 14 µm
Vertical field of view	18.7 °
Horizontal field of view	24.8 °
IFOV (spatial resolution)	0.68 mRad
Thermal sensitivity (NETD)	30 mK
Sensor type (thermal module)	Vanadium Oxide Uncooled Focal Plane Arrays
Temperature measurement range	-20 - 650 °C
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Languages support	Multi
Management software	HIKMICRO Analyzer, HIKMICRO Viewer App, UVC Alarm Clien
Number of languages	21
Video memory capacity	64 h
Compatible memory cards	SD
Image formats supported	JPEG
Video formats supported	MP4
Maximum memory card size	128 GB
Memory capacity (images)	60000
Sustainability certificates	RoHS

Weight and Dimensions

Depth	118.3 mm
Width	284.7 mm
Height	127.1 mm
Weight	653 g
