HIKVISION Digital Video Recorder User Manual

User Manual of DS-7200/7300/8100-SH Series DVR
160
10.4 Configuring Quota Mode
Purpose
Each camera can be configured with allocated quota for the storage of recorded files.
Steps
1. Enter the Storage Mode interface.
Menu > HDD > Advanced
2. Set the Mode to Quota.
Note: The device must be rebooted to enable the changes to take effect.

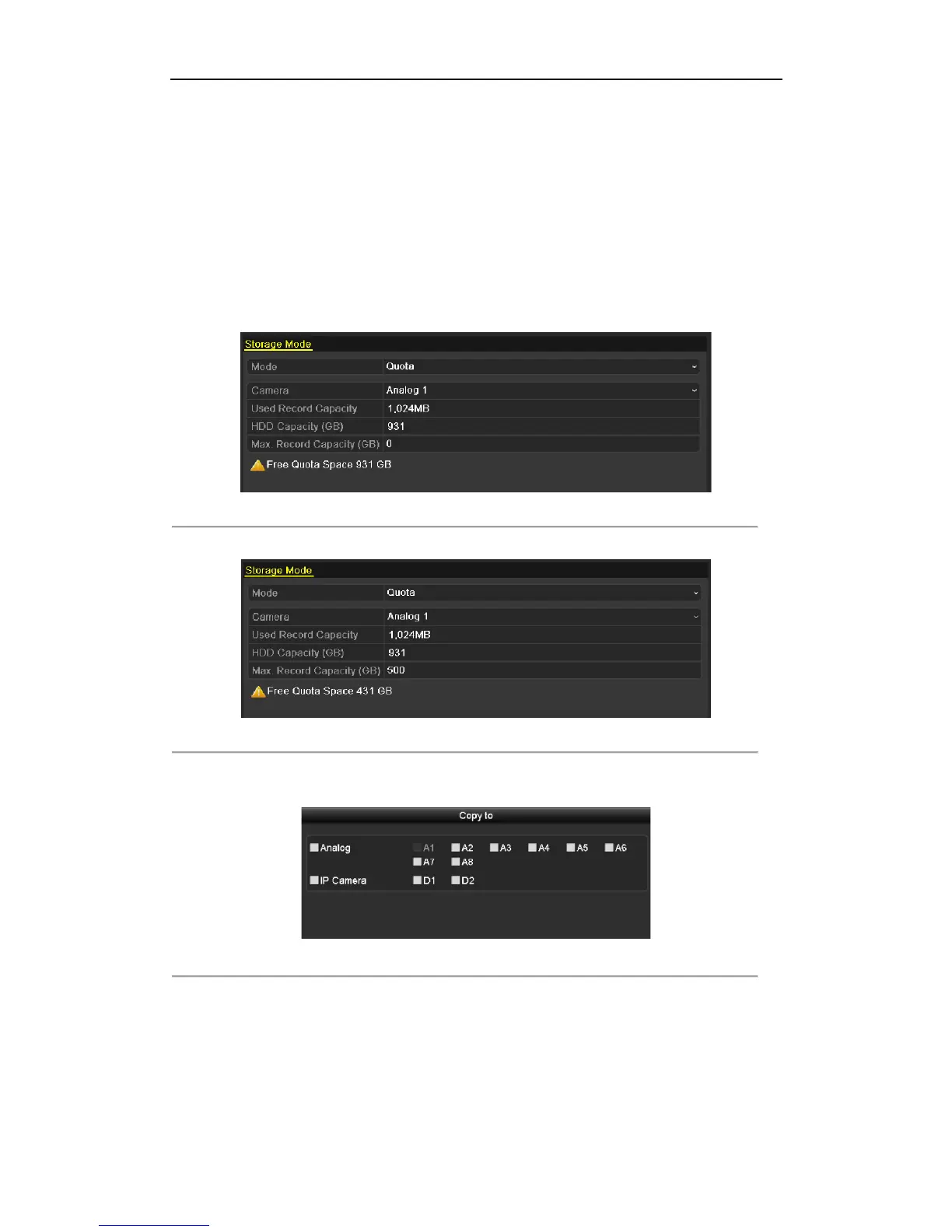

Figure 10.14 Storage Mode Settings Interface
3. Enter the storage capacity in the text field of Max. Record Capacity (GB).
Figure 10.15 Configure Record Quota
4. You can copy the quota settings of the current camera to other cameras if required. Click the Copy button
to enter the Copy Camera menu, as shown below.
Figure 10. 16 Copy Settings to Other Camera(s)
5. Select the camera (s) to be configured with the same quota settings. You can also click the checkbox of
Analog to select all cameras.
6. Click the OK button to finish the Copy settings and back to the Storage Mode interface.
7. Click the Apply button to apply the settings.
Note: If the quota capacity is set to 0, then all cameras will use the total capacity of HDD for recording.

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
