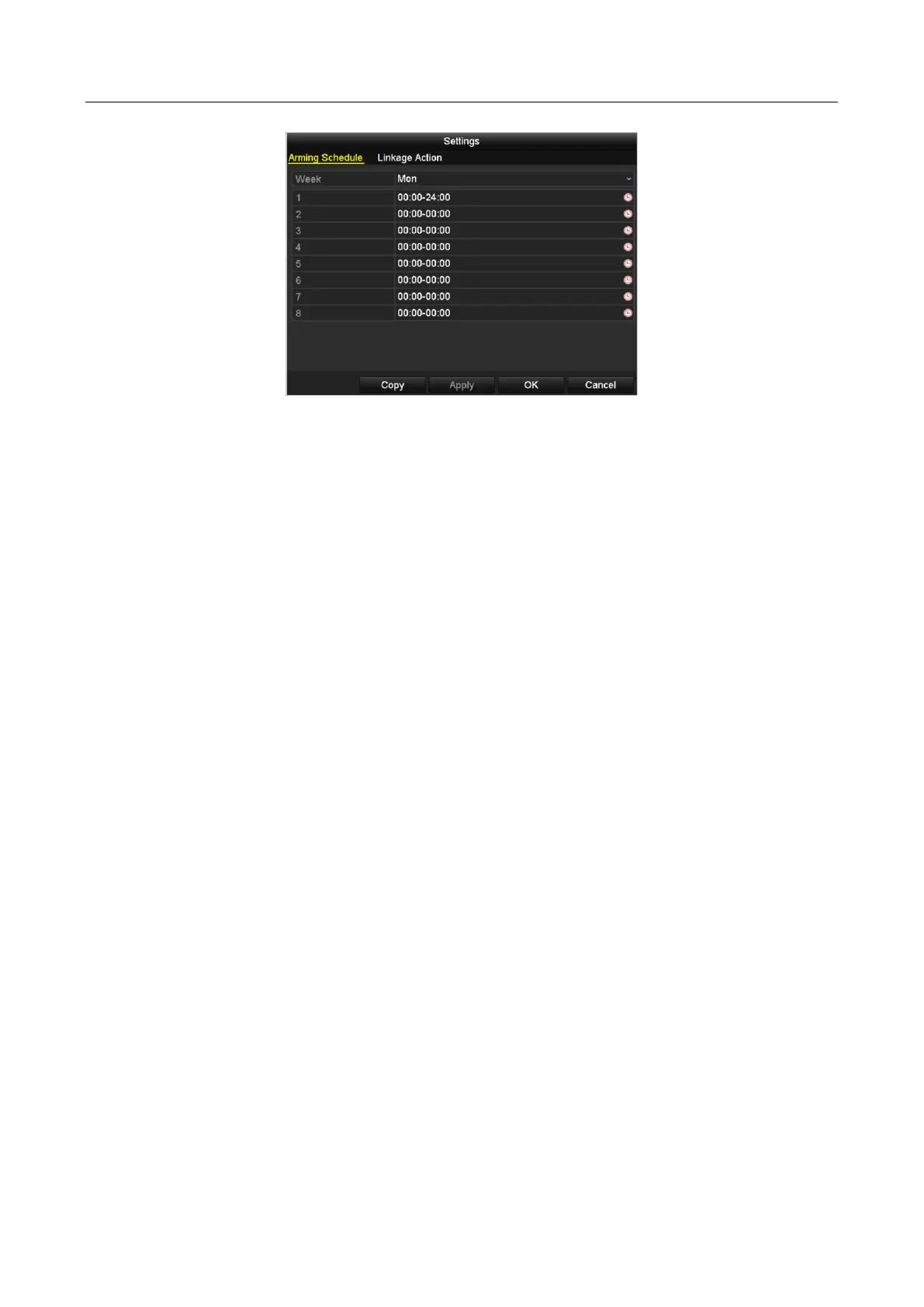

Figure 8-13 Set Arming Schedule of Video Tampering
3) Select Linkage Action tab to set alarm response actions of video tampering alarm (please
refer to Chapter 8.7 Setting Alarm Response Actions).
Repeat the above steps to set arming schedule of other days of a week. You can also use
Copy button to copy an arming schedule to other days.
4) Click the OK button to complete the video tampering settings of the channel.
Repeat the above steps to finish settings of other channels, or click the Copy button copy
the above settings to them.
Step 5 Click the Apply button to save and activate the settings.
8.5 Setting All-day Video Quality Diagnostics
Purpose
The device provides two ways to diagnose the video quality: manual and all-day. Perform the
following steps to set the threshold of the diagnosing and the linkage actions.
Step 1 Enter Video Quality Diagnostics Settings interface of Camera Management and select a
channel you want to detect video tampering.
Menu> Camera> Video Quality Diagnostics

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
