HIKVISION DS-7216HGHI-F1 User Manual

Digital Video Recorder User Manual
88
Chapter 4 PTZ Controls
4.1 Configuring PTZ Settings
Purpose
Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should
be done before you control the PTZ camera.
Step 1 Enter the PTZ Settings interface.
Menu >Camera> PTZ

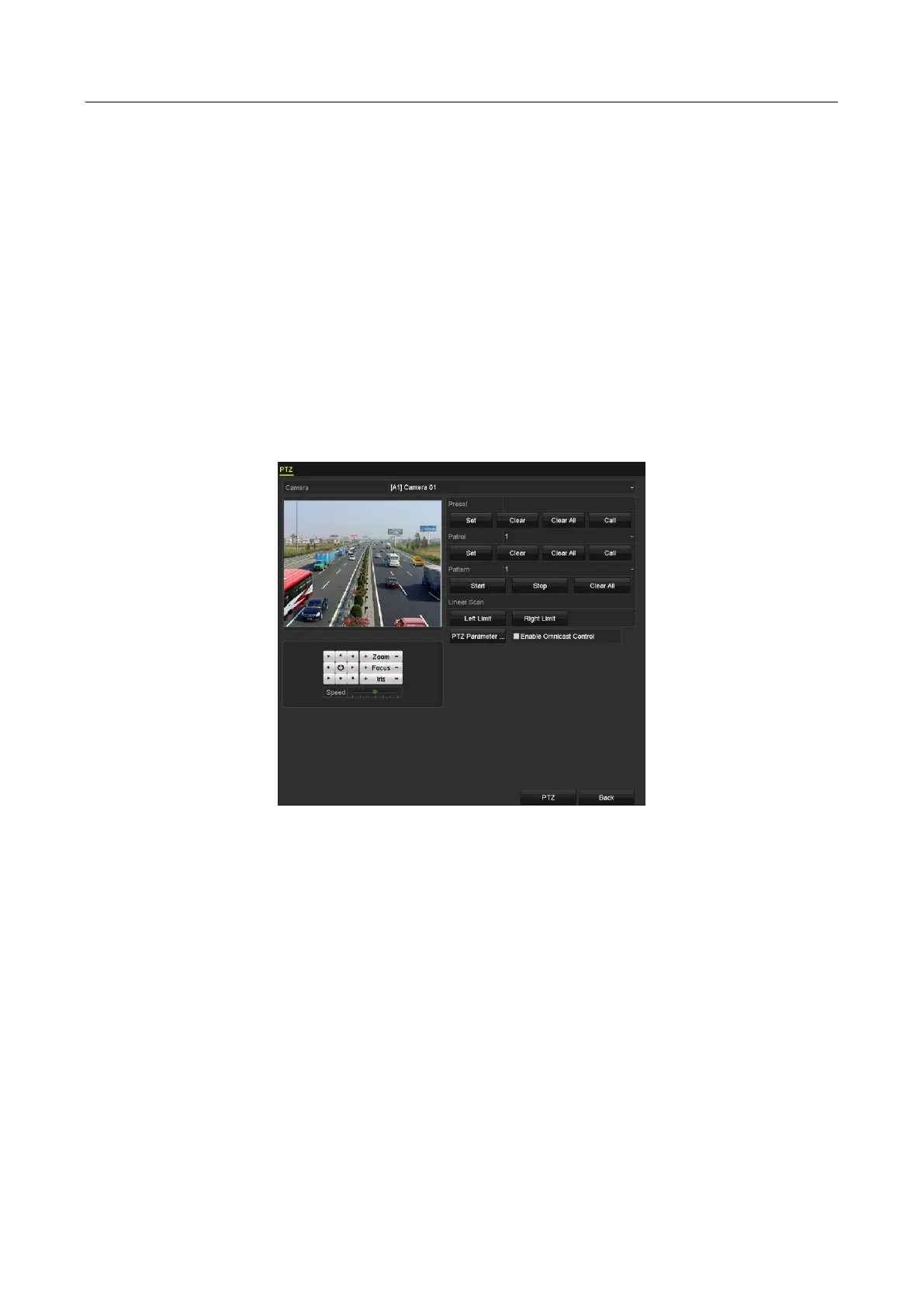

Figure 4-1 PTZ Settings
Step 2 Select the camera for PTZ setting in the Camera dropdown list.
Step 3 Click the PTZ Parameters button to set the PTZ parameters.

HIKVISION DS-7216HGHI-F1 Specifications

General

Audio input	1
BNC input ports	16
Video input channels	16 channels
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	20 W
Bit rate	64 Kbit/s
Internal	No
Product color	Black
Video streaming	Yes
Maximum frame rate	30 fps
Audio formats supported	G.711 μ-law
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	SATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	222 mm
Width	260 mm
Height	45 mm
Weight	1200 g
