HIKVISION DS-7332HGHI-SH Quick Start Guide

1 3 S E T U P R E C O R D I N G ( c o n t i n u e d )

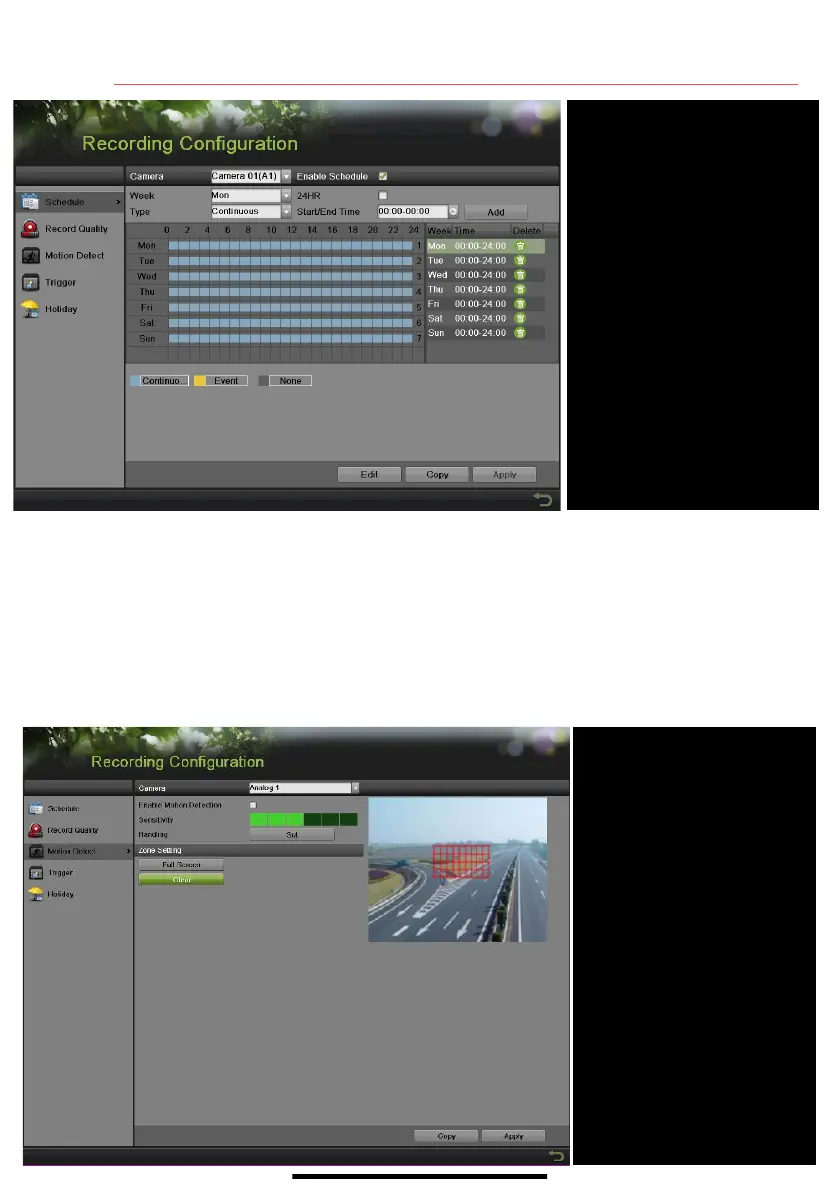

 Motion Detection Recording
Motion Recording will capture video only when motion in the scene is detected.
1. To set MOTION RECORDING, go to MENU > RECORDING CONFIGURATION
2. Click on EVENT under the calendar (yellow) and the mouse cursor will change to a wand.
3. Select the days you wish to set motion recording and they will turn yellow.
4. Press APPLY.
5. Press COPY button to copy the new schedule to the remaining cameras.

CAMERA
Select camera
ENABLE MOTION DETECTION
Click to enable/disable
MOTION GRID
Draw grid area that will detect
motion
MOTION SENSITIVITY
Selectnumber of green squares to
set sensitivity (in example,
sensitivity is set to 3)
APPLY
Click to apply settings









COLOR
Shows Recording Schedule:
• Blue=Continuous
• Yellow=Event (motion/alarm)
• Grey=None
 SECTION
Customize part of existing schedule
(ignore for “motion only” recording)
 SCHEDULE TYPE
Motion or Continuous (default)
 ENABLE SCHEDULE
If not checked, camera will not record






HIKVISION DS-7332HGHI-SH Specifications

General

HDD capacity	18000 GB
HDD interface	Serial ATA
Number of HDDs supported	4
Product color	Black
Channels quantity	32 channels
Maximum frame rate	30 fps
Video compression formats	H.264
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x576, 704x480
BNC input ports	32
USB 2.0 ports quantity	3
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Power requirements	100-240V AC, 47 - 63Hz
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	445 x 390 x 70 mm
