Quick Operation Guide of DS-9600/8600/7600NI-ST Series NVR
10

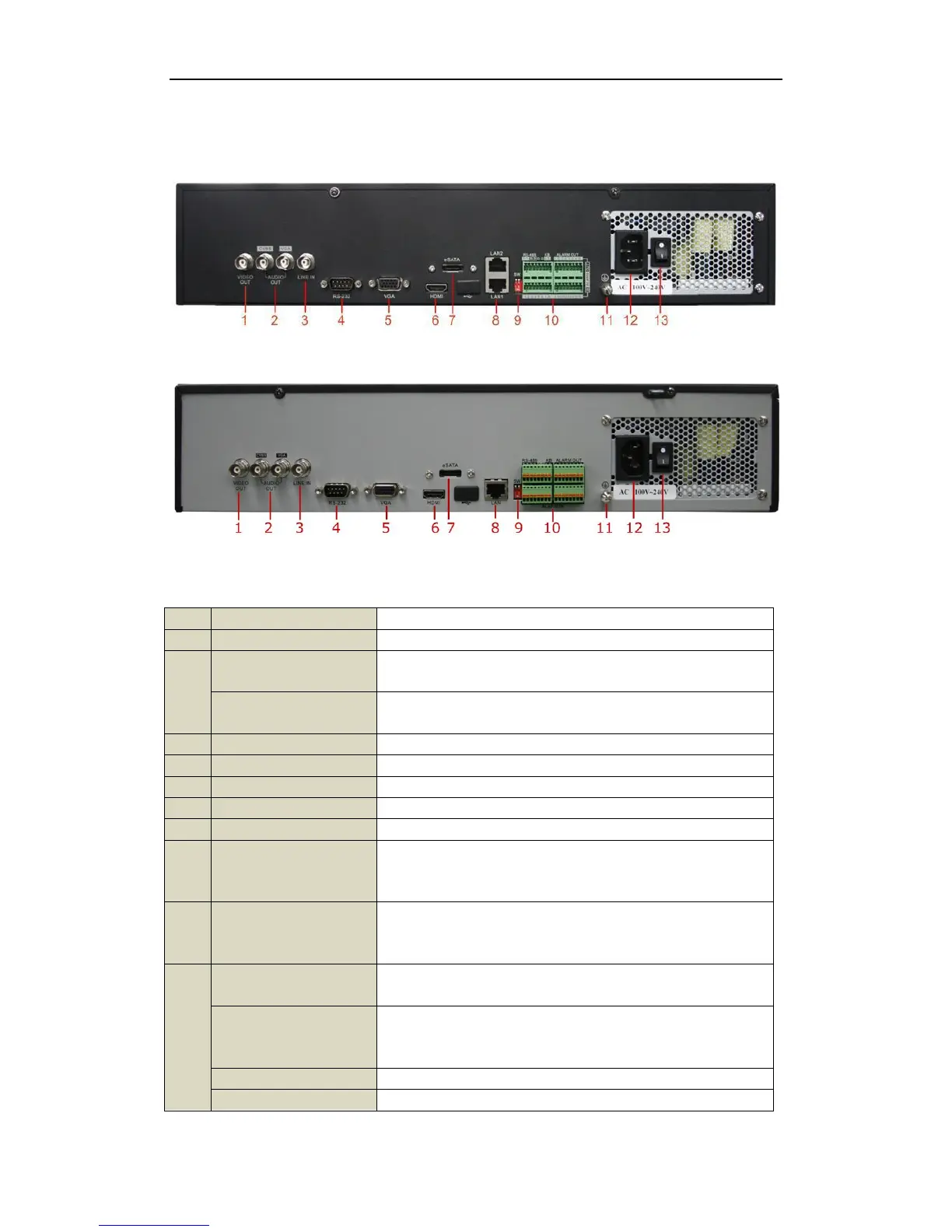

Rear Panel
DS-9600NI-ST:
DS-9600NI-ST
DS-8600NI-ST
No.
Item
Description
1
VIDEO OUT
BNC connector for video output.
2
CVBS AUDIO OUT
RCA connector for audio output. This connector is synchronized with
CVBS video output.
VGA AUDIO OUT
RCA connector for audio output. This connector is synchronized with
VGA video output.
3
LINE IN
RCA connector for audio input.
4
RS-232 Interface
Connector for RS-232 devices.
5
VGA
DB9 connector for VGA output. Display local video output and menu.
6
HDMI
HDMI video output connector.
7
eSATA (Optional)
Connects external SATA HDD, CD/DVD-RM.
8
LAN Interface
Connector for LAN (Local Area Network).
1 LAN interface provided for DS-8600NI-ST and 2 LAN interfaces for
DS-9600NI-ST.
9
Termination Switch
RS-485 termination switch.
Up position is not terminated.
Down position is terminated with 120Ω resistance.
10
RS-485 Interface
Connector for RS-485 devices. T+ and T- pins connects to R+ and R-
pins of PTZ receiver respectively.
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,
the first NVR’s D+, D- pin should be connected with the D+, D- pin of
the next NVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
