HIKVISION DS-9600NI-I16 Series User Manual

Network Video Recorder User Manual
130
Step 2 Menu>Playback
Step 3 Select Sub-periods from the drop-down list in the upper-left corner of the page to enter the
Sub-periods Playback interface.
Step 4 Select the stream to Main Stream or Sub Stream.
Step 5 Select a date and start playing the video file.
Step 6 Select the Split-screen Number from the dropdown list. Up to 16 screens are configurable.

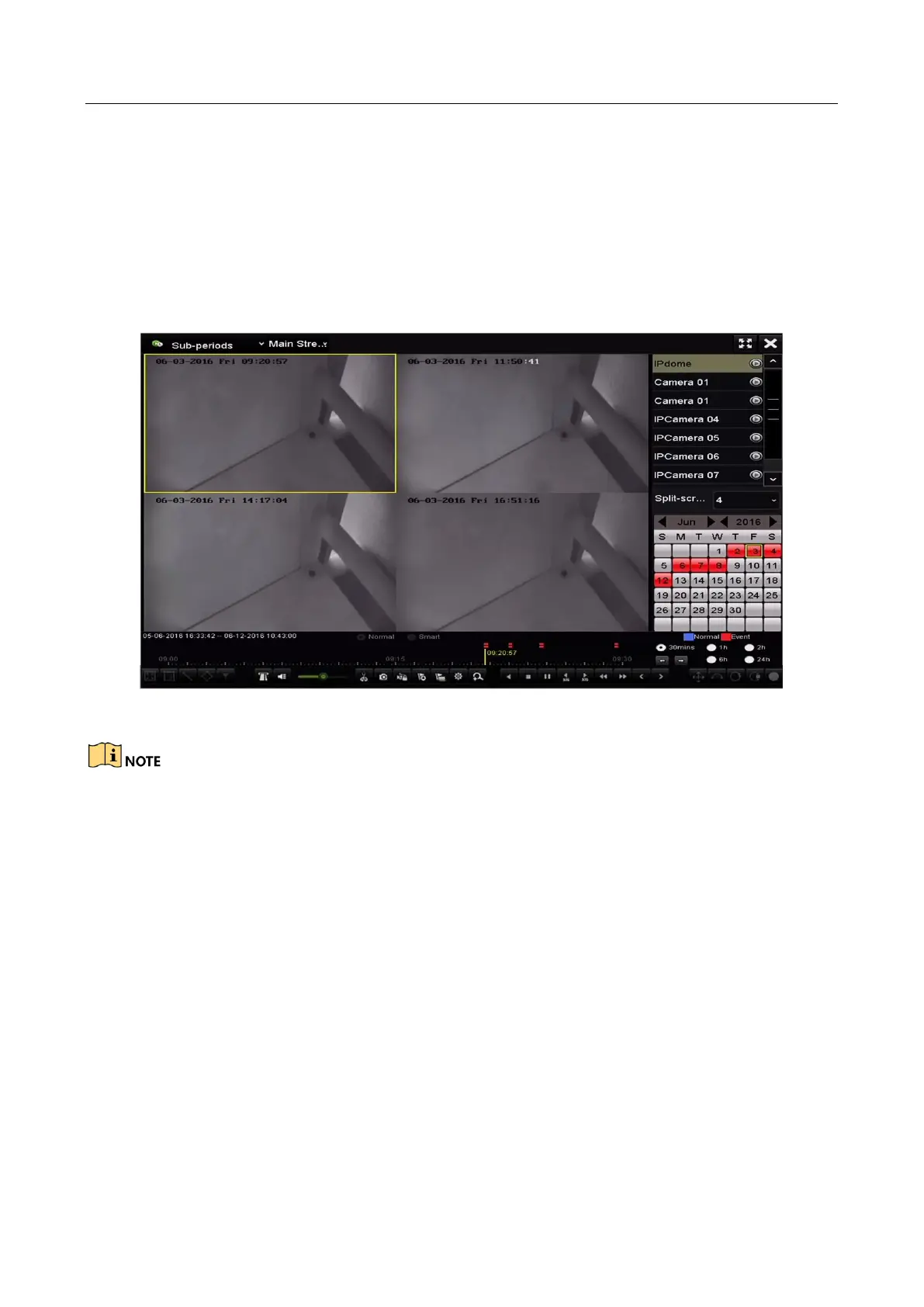

Figure 6-15 Interface of Sub-periods Playback
According to the defined number of split-screens, the video files on the selected date can be
divided into average segments for playback. E.g., if there are video files existing between 16:00 and
22:00, and the 6-screen display mode is selected, then it can play the video files for 1 hour on each
screen simultaneously.
6.1.7 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Step 1 Enter Log Information interface.
Menu>Maintenance>Log Information
Step 2 Click Log Search tab to enter Playback by System Logs.
Step 3 Set search time and type and click Search button.
