HIKVISION DS-96256NI-I24 Quick Start Guide

Network Video Recorder Quick Start Guide
9
1.2 Rear Panel
Purpose:
The interfaces of DS-96000NI-I16 and DS-96000NI-I24 are the same. The interfaces of DS-96000NI-I16/H and
DS-96000NI-I24/H are the same. We take the example of DS-96000NI-I16/H series to introduce the rear panel.
The difference between DS-96000NI-I16 and DS-96000NI-I16/H is DS-96000NI-I16/H contains the decoding
board, that is the module marked as 13 in following figure.

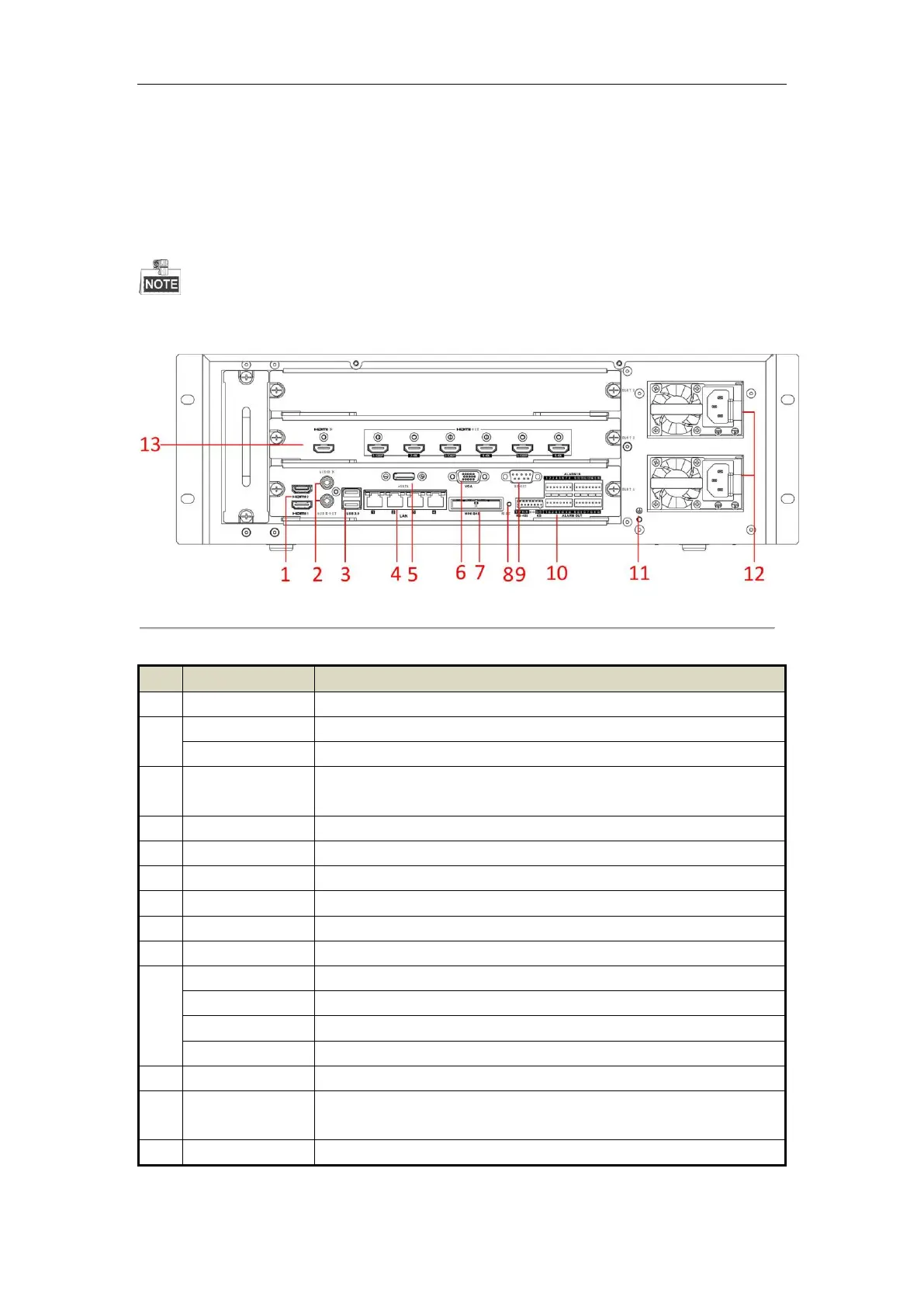

Figure 1. 3 DS-96000NI-I16/H Series
Table 1. 3 Panel Description
No.
Name
Description
1
HDMI 1/2
HDMI video output connector.
2
Audio in
RCA connector for audio input.
Audio out
RCA connector for audio output.
3
USB 3.0
Universal Serial Bus (USB 3.0) ports for additional devices such as USB mouse
and USB Hard Disk Drive (HDD).
4
LAN
4 10/100/1000 Mbps self-adaptive Ethernet interfaces.
5
eSATA
Connects external SATA HDD, CD/DVD-RM.
6
VGA
DB9 connector for VGA output.
7
Mini SAS (optional)
Connector for mini SAS.
8
Reset
Reset button.
9
RS-232
Connector for RS-232 devices.
10
Alarm in
Connector for alarm input.
Alarm out
Connector for alarm output.
RS-485
Connector for RS-485 devices.
KB
Connector for keyboard.
11
GND
Ground (needs to be connected when NVR starts up).
12
Power supply
modules
Only one power supply module is provided by default. Two power supply
modules are optional for redundancy.
13
Decoding board
Decoding board. Only available for DS-96000NI-I16/H and DS-96000NI-I24/H.
