Network Video Recorder Quick Start Guide
20

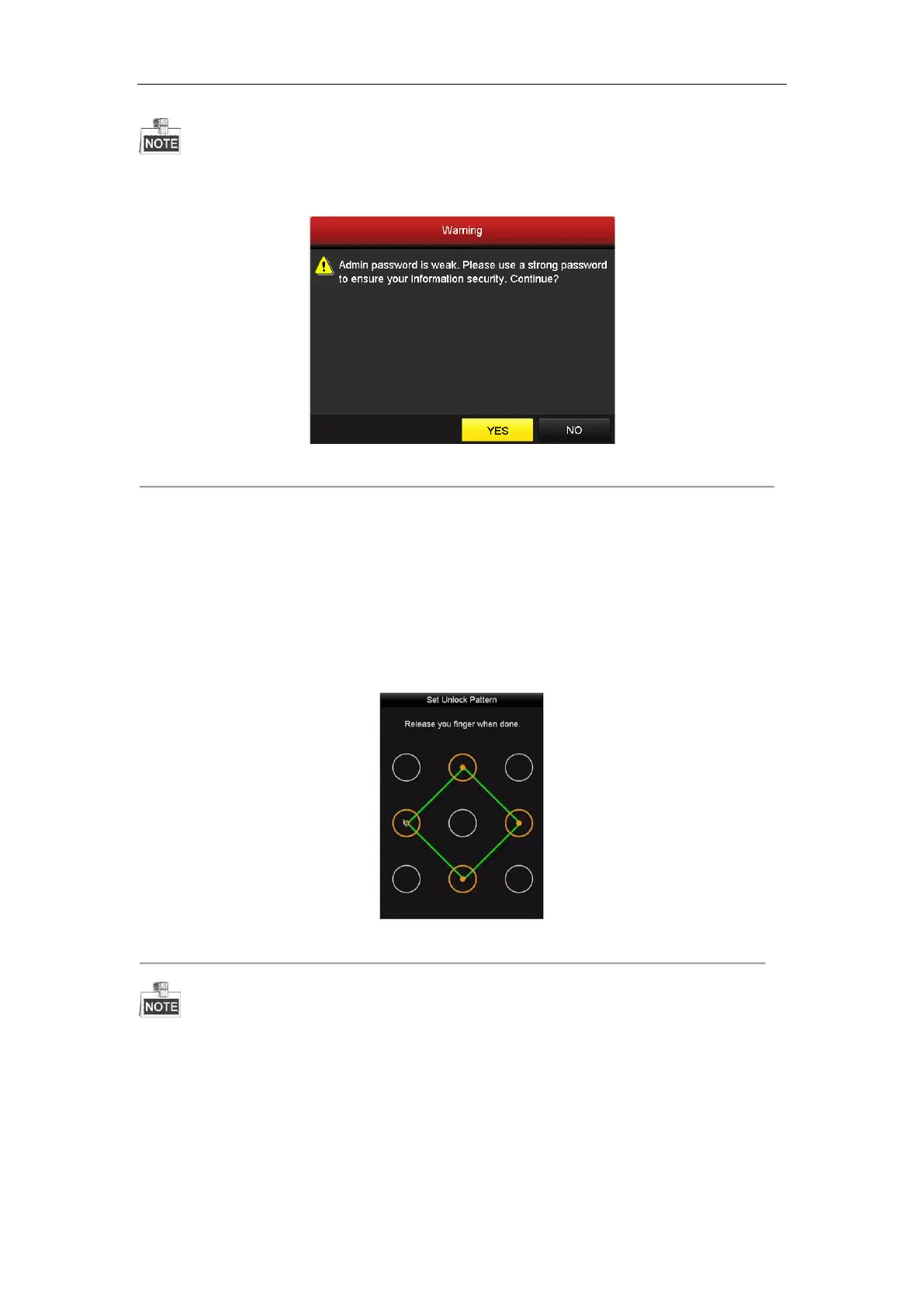

For the old version device, if you upgrade it to the new version, the following dialog box will pop up once the
device starts up. You can click YES and follow the wizard to set a strong password.
Figure 3. 4 Warning of Weak Password
3.4 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can enter the following interface to configure the device unlock pattern.
Steps:
1. Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when the pattern is done.
Figure 3. 5 Draw the Pattern
Connect at least 4 dots to draw the pattern.
Each dot can be connected for once only.
2. Draw the same pattern again to confirm it. When the two patterns match, the pattern is configured
successfully.
