HIKVISION DS-K1101M User Manual

9

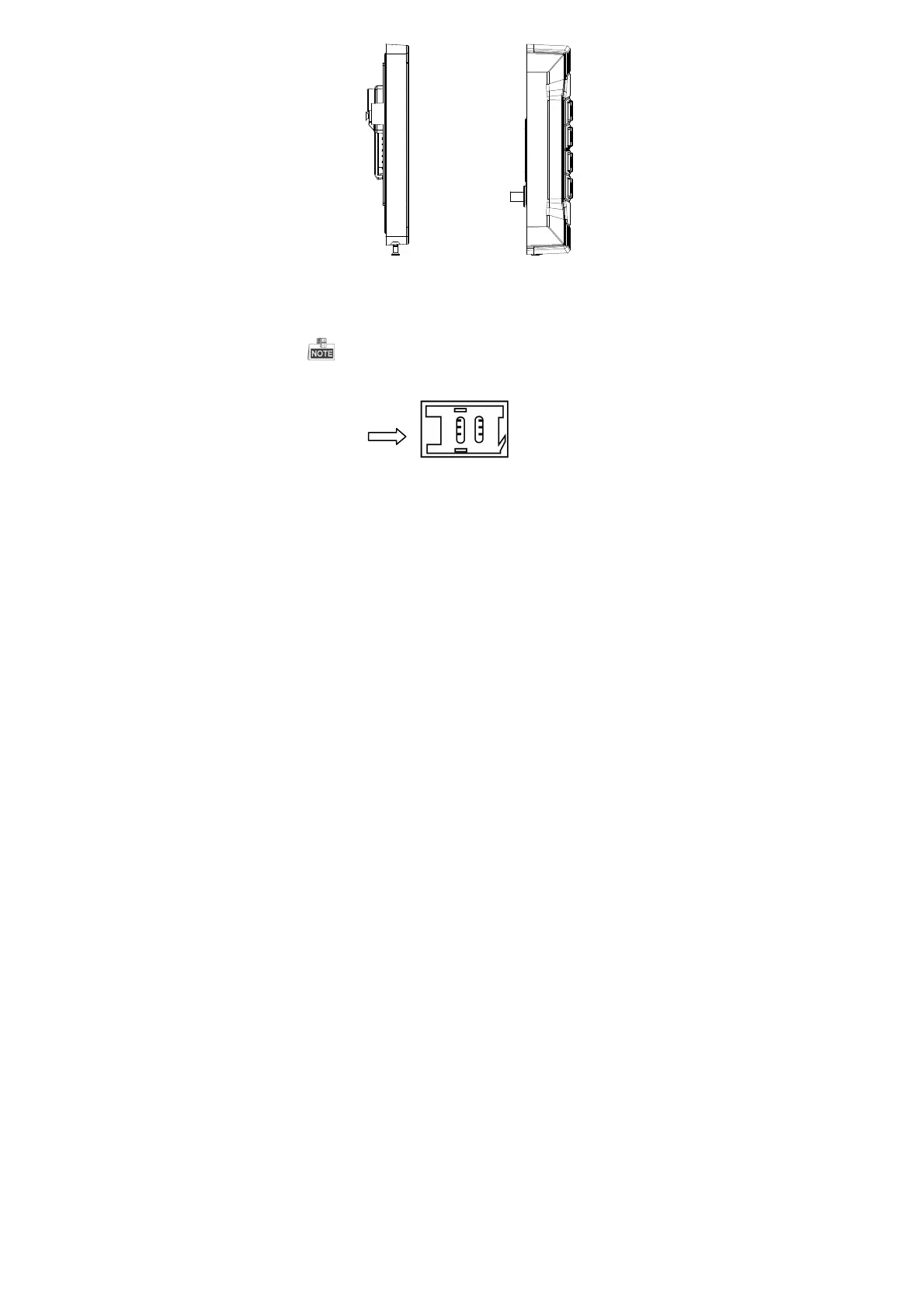

Figure 2-15 DS-K1103 Series Figure 2-16 DS-K1104 Series
Chapter 3 Installation
3.1 Installing PSAM Card
PSAM card slot is only available for CPU card reader.
Insert the PSAM card into the slot according to the direction
shown below.
Figure 3-1 PSAM Card Slot

HIKVISION DS-K1101M Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Silver
LED indicators	Status
Access code reader	-
Fingerprint reader	No
Authentication type	Access chip/card
Supported protocols	Mifare
RFID reading distance	50 mm
Access chip/card reader	Yes
International Protection (IP) code	IP64
Processor frequency	13.56 MHz
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
RS-485 ports	1

Weight and Dimensions

Depth	20.5 mm
Width	92.3 mm
Height	132 mm
Weight	140 g
