HIKVISION DS-K1101M User Manual

5

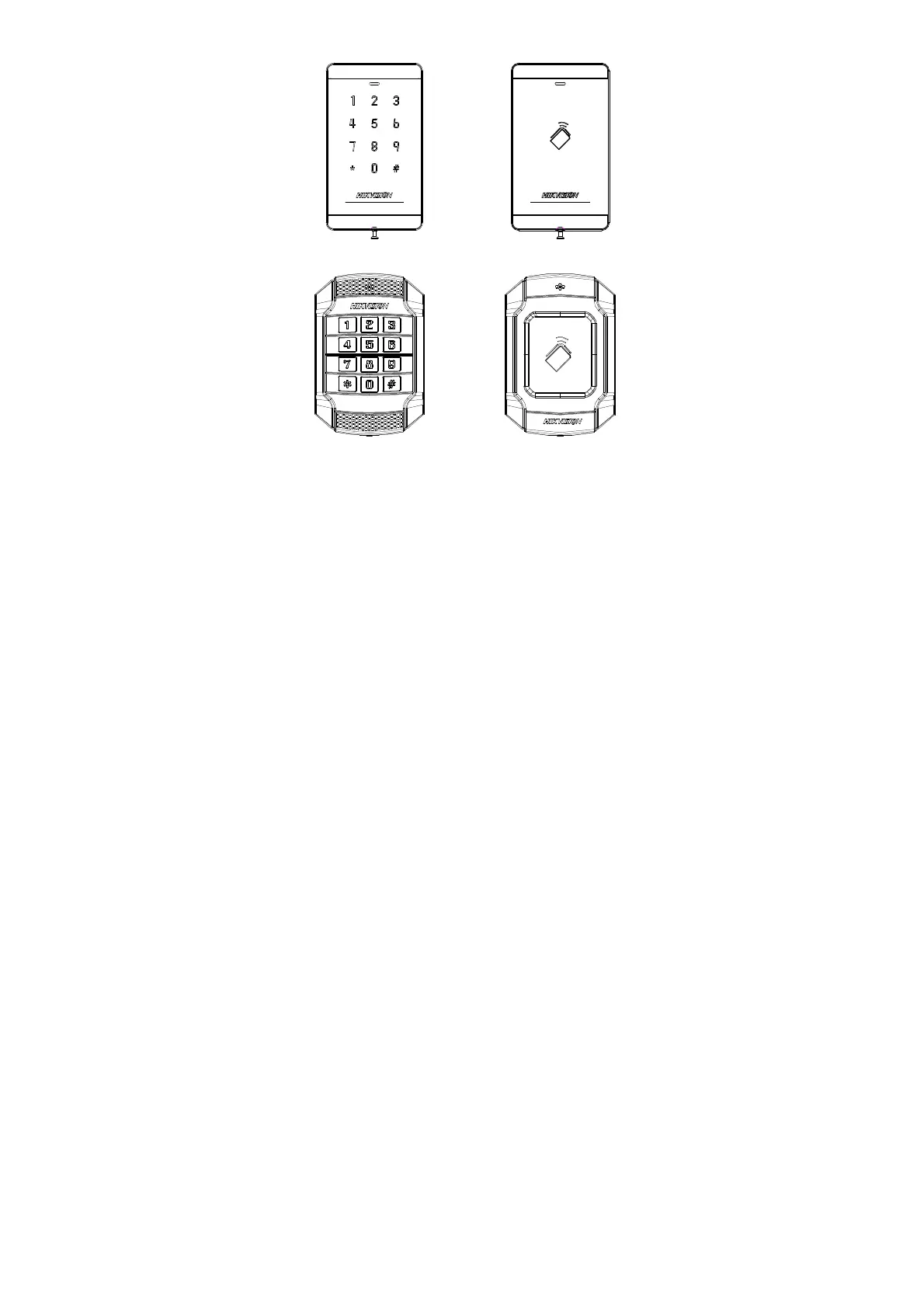

The front view of DS-K1103 series card reader is shown below:
Figure 2-5 DS-K1103MK/DS-K1103CK Figure 2-6 DS-K1103M/DS-K1103C
The front view of DS-K1104 series card reader is shown below:
Figure 2-7 DS-K1104MK/DS-K1104CK Figure 2-8 DS-K1104M/DS-K1104C
2.2 Rear View
The rear view of card reader is shown below:

HIKVISION DS-K1101M Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Silver
LED indicators	Status
Access code reader	-
Fingerprint reader	No
Authentication type	Access chip/card
Supported protocols	Mifare
RFID reading distance	50 mm
Access chip/card reader	Yes
International Protection (IP) code	IP64
Processor frequency	13.56 MHz
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
RS-485 ports	1

Weight and Dimensions

Depth	20.5 mm
Width	92.3 mm
Height	132 mm
Weight	140 g
