HIKVISION DS-K1101M User Manual

4
2.1 Front View

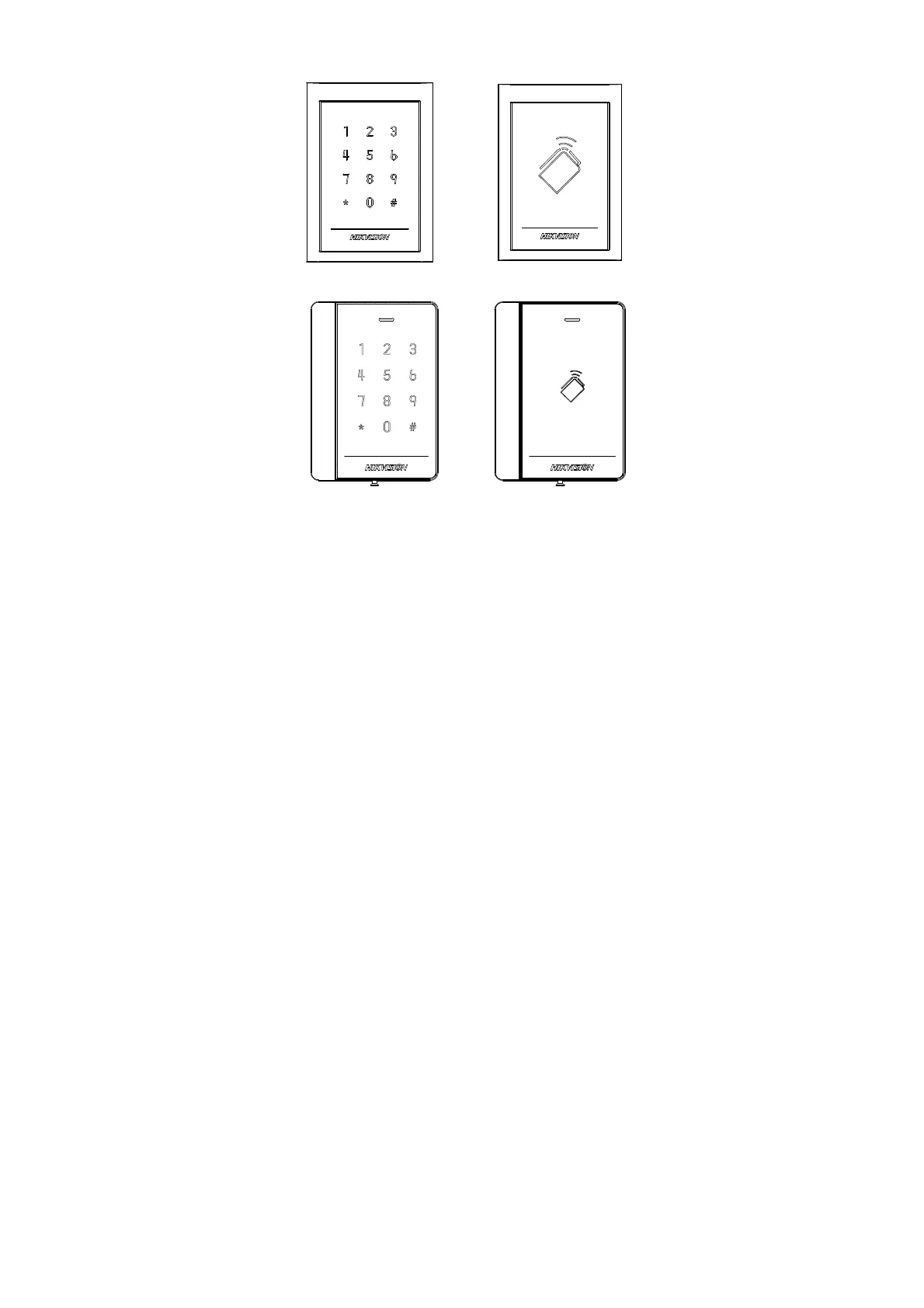

The front view of DS-K1101 series card reader is shown below:
Figure 2-1 DS-K1101MK/DS-K1101CK Figure 2-2 DS-K1101M/DS-K1101C
The front view of DS-K1102 series card reader is shown below:
Figure 2-3 DS-K1102MK/DS-K1102CK Figure 2-4 DS-K1102M/DS-K1102C

HIKVISION DS-K1101M Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Silver
LED indicators	Status
Access code reader	-
Fingerprint reader	No
Authentication type	Access chip/card
Supported protocols	Mifare
RFID reading distance	50 mm
Access chip/card reader	Yes
International Protection (IP) code	IP64
Processor frequency	13.56 MHz
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
RS-485 ports	1

Weight and Dimensions

Depth	20.5 mm
Width	92.3 mm
Height	132 mm
Weight	140 g
