HIKVISION DS-K2804 - DS-K2802 Terminal Description

DS-K2800 Serial Access Controller
8
No.
DS-K2801
B16
W0
Wiegand Head Read Data Input Data0
B17
PWR
Card Reader Power Output
B18
GND
3.2 DS-K2802Terminal Description

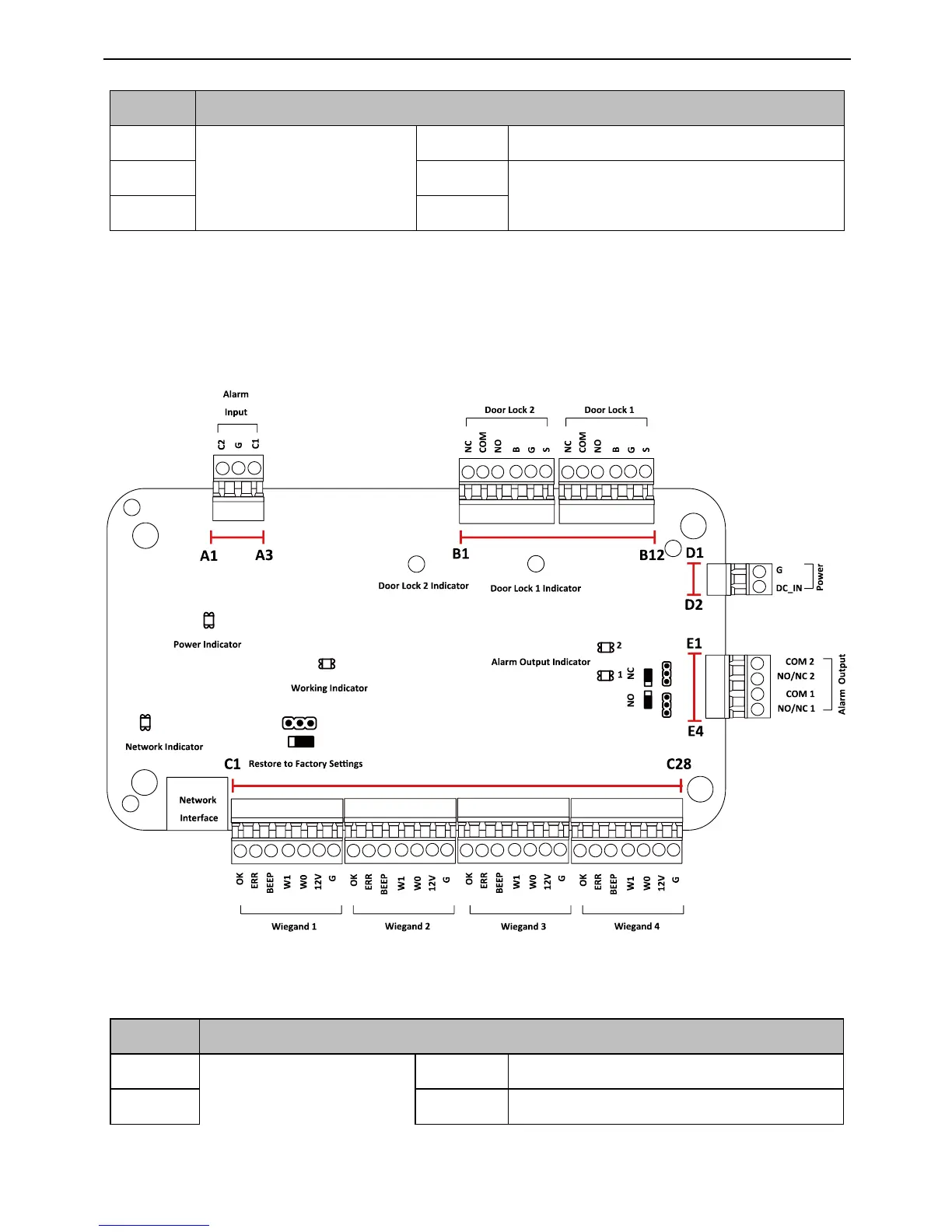

Figure 3-2 DS-K2802 Terminal Description
DS-K2802 Port Description Table 3-2
No.
DS-K2802
A1
Alarm Input
IN2
Alarm Input 2
A2
GND
Grounding
