HIKVISION DS-K2804 Quick Start Guide

DS-K2800 Serial Access Controller
15
Chapter 4 External Device Wiring
4.1 Card Reader Wiring
Yellow
Blue
Black
Red
Black
Red
Green
White
Purple
Orange
Brown
Controller
Card Reader

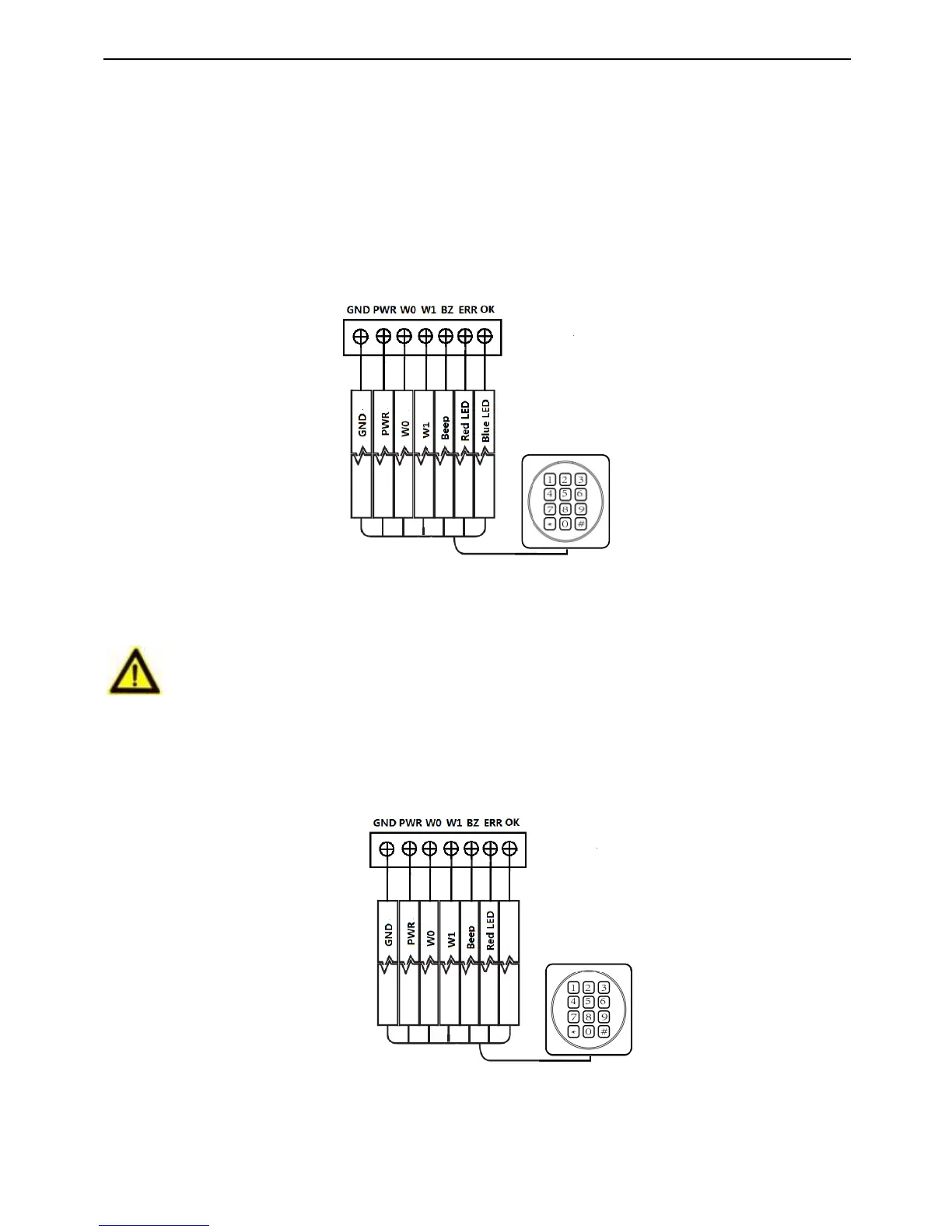

Figure 4-1 Wiring diagram of Wiegand card reader
Note:
You must connect the OK/ERR/BZ, if using access controller to control the LED and
buzzer of the Wiegand card reader.
For 1800 series card reader, the wiring diagram is shown below.
Yellow
Blue
Black
Red
GND
VCC
WG-D0 WG-D1
WG_BEEP
WG_ERR
WG_OK
Controller
Card Reader
LED
Figure 4-2 Wiring diagram of 1800 series card reader

HIKVISION DS-K2804 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
