HIKVISION DS-K2804 Quick Start Guide

DS-K2800 Serial Access Controller
16
4.2 Installing Door Lock
4.2.1 Installation of Cathode Lock

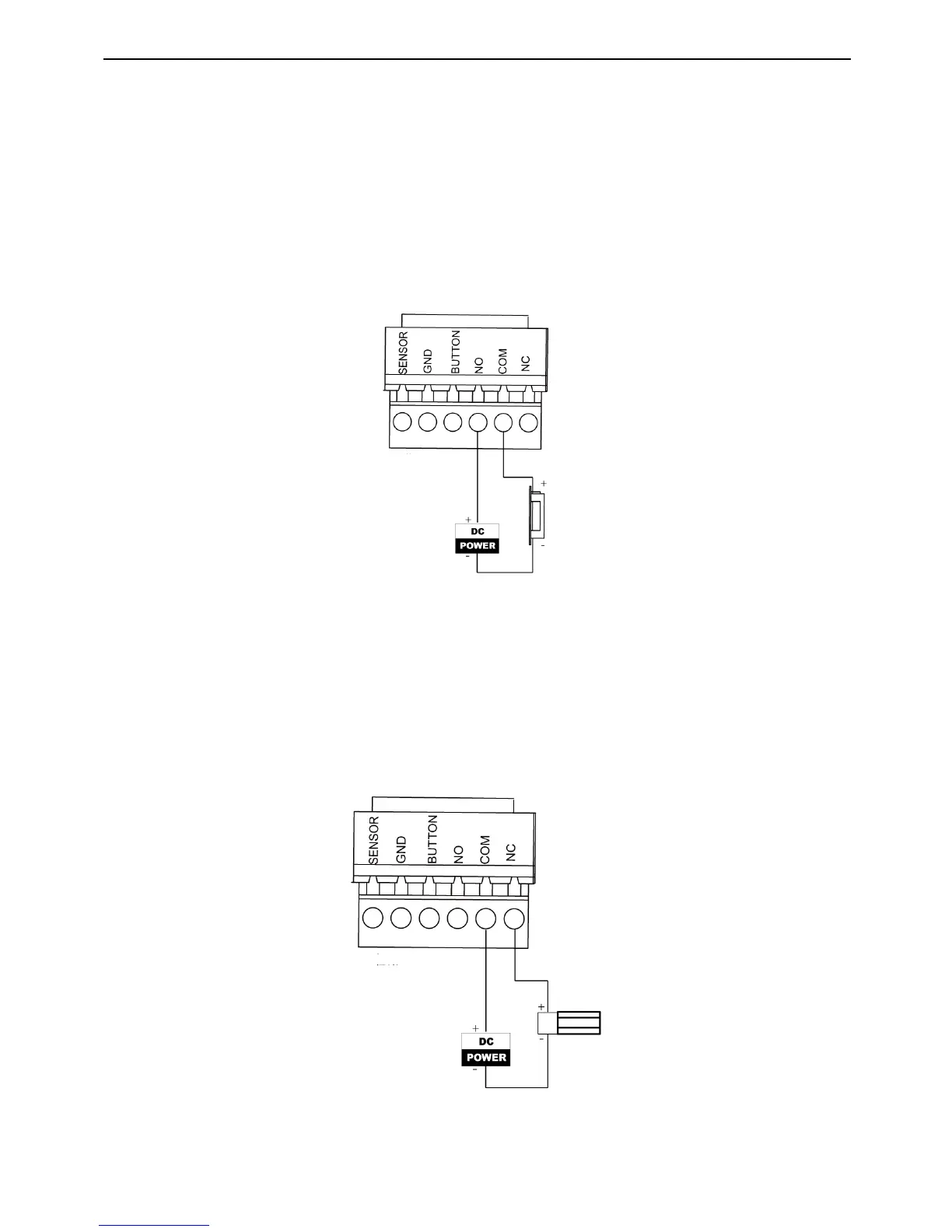

Figure 4-3 Wiring diagram of cathode lock
4.2.2 Installation of Anode Lock
Figure 4-4 Wiring diagram of anode lock

HIKVISION DS-K2804 Specifications

General

Product type	Access controller
Certification	CE, FCC
Compatibility	Wiegand
Mounting type	Wall
Product color	Black
Brand compatibility	Hikvision
Operating temperature (T-T)	-20 - 65 °C
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	285 mm
Width	237 mm
Height	69 mm
